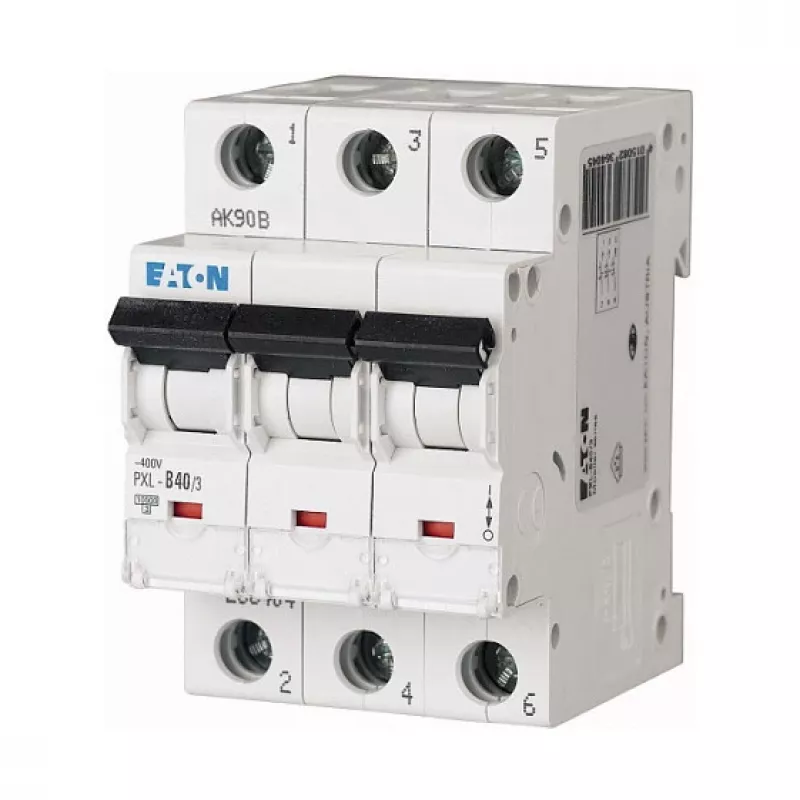

EATON PXL-C40/3 istič (MCB), 3-pólový, 40 A, charakteristika C, 10 kA, 230/400 V AC

This 3-pole miniature circuit breaker from Eaton's PXL series delivers dependable protection for electrical circuits up to 40 A. With a C tripping characteristic, it responds to overloads and short circuits while allowing moderate inrush currents, making it ideal for commercial and industrial distribution boards. The breaker's 10 kA breaking capacity and compliance with IEC/EN 60898-1 ensure safe interruption of fault currents, protecting both wiring and connected equipment.

Advantages

The PXL-C40/3 combines robust construction with user-friendly features. Screw terminals accept solid conductors up to 25 mm² and flexible conductors up to 16 mm², providing secure, low-maintenance connections. A clear red/green contact position indicator lets you verify the switching state at a glance. The breaker mounts quickly on standard 35 mm DIN rails and supports pin-type busbar connections for streamlined panel assembly. With an electrical endurance of over 10,000 operating cycles and mechanical endurance of over 20,000 cycles, it offers long-term reliability in demanding environments.

Suitable for

• Protection of three-phase circuits in commercial and industrial installations
• Distribution boards and control panels requiring DIN rail mounting
• Applications with moderate inrush currents, such as motors, transformers, and lighting systems
• Electrical installations operating at 230/400 V AC, 50/60 Hz

Key specifications

• Rated current: 40 A
• Number of poles: 3
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Energy limiting class: 3
• Degree of protection: IP20 (terminals), IP40 (front)
• Operating temperature: -25 to +75 °C
• Standards: IEC/EN 60898-1

Recommendations

For optimal performance, install the PXL-C40/3 in a clean, dry enclosure with adequate ventilation. Use appropriate torque settings when tightening terminals to ensure reliable connections. Pair with compatible Eaton busbars and accessories for a complete, code-compliant installation. Regular inspection of the contact position indicator is recommended as part of routine maintenance.
