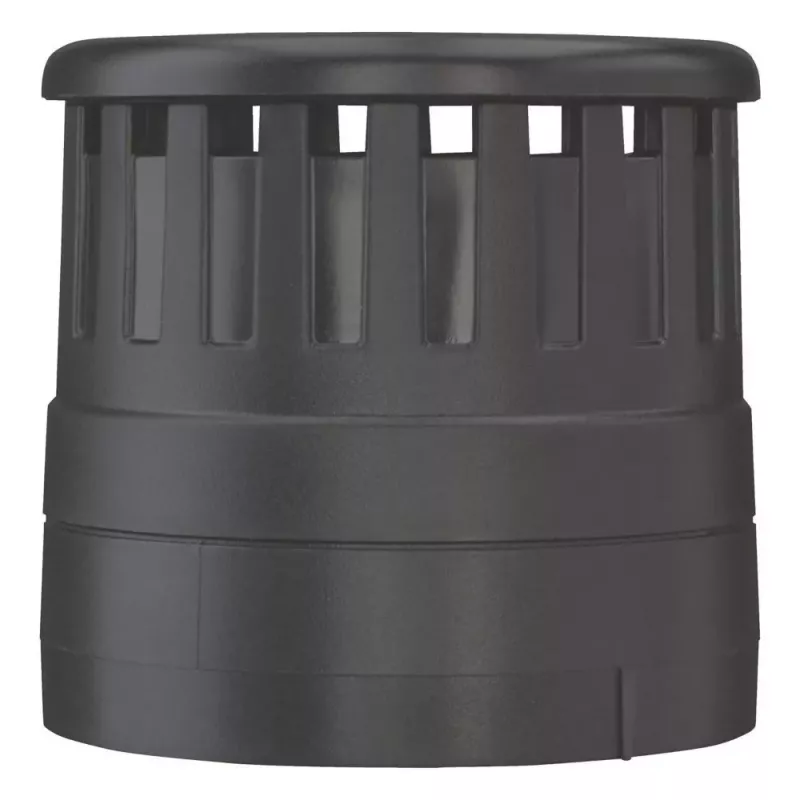

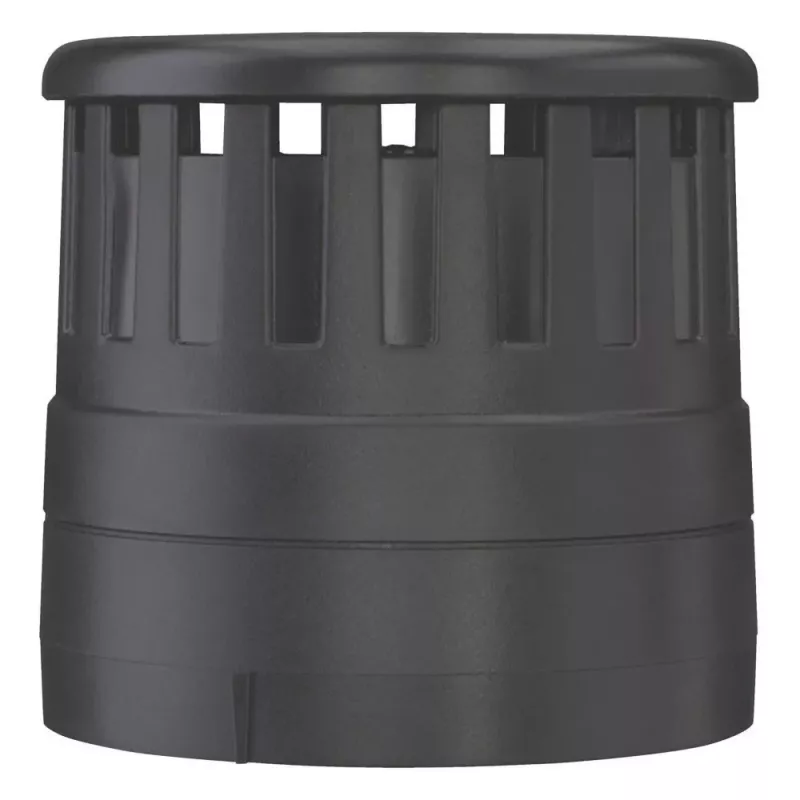

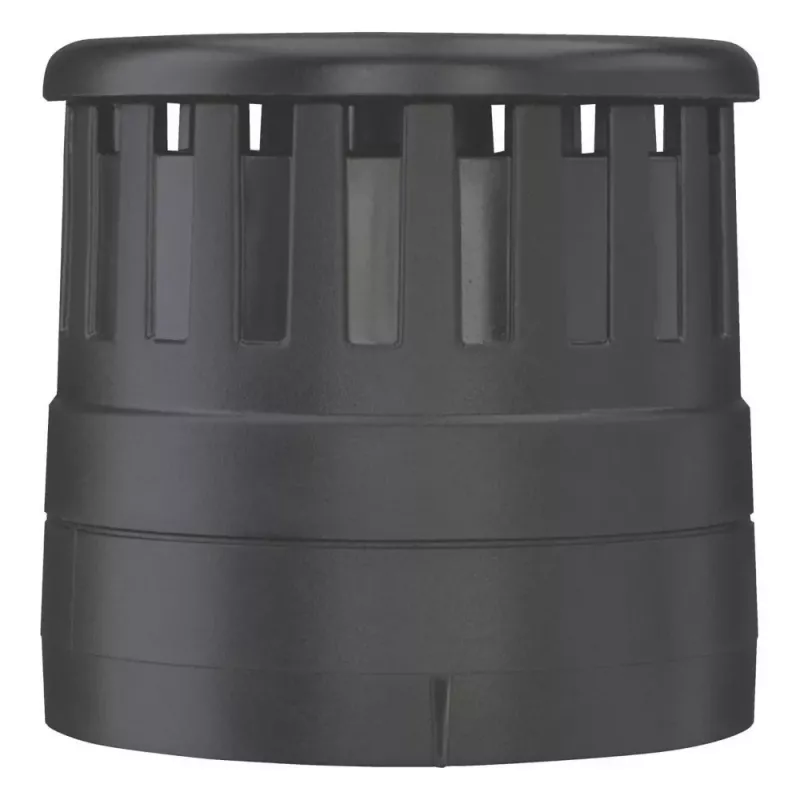

Eaton SL7-AP230 akustický signálny modul, 230 V AC, 100 dB, IP66, čierny 171283

The Eaton SL7-AP230 stands out with its robust IP66-rated housing and a piercing 100 dB continuous tone, making it ideal for noisy industrial environments where standard signal devices go unnoticed. Designed for direct mounting onto Eaton signal towers, it delivers reliable acoustic alerts for process status, safety warnings, or equipment alarms.

Highlights

• High 100 dB sound output ensures audibility in loud surroundings
• IP66 protection guards against dust and powerful water jets
• Compact 70 mm diameter and 65 mm height for space-saving installation
• Wide operating temperature range from -30 to +60 °C
• Durable polycarbonate housing in black

In daily use

This acoustic annunciator module is a direct replacement or upgrade for Eaton SL7 signal towers. With screw terminal connections and a simple base mounting, installation is straightforward. The continuous tone provides a clear, unmistakable signal for machine states, emergency conditions, or process milestones. Its low 15 mA current consumption keeps energy costs minimal even in 24/7 operation.

Full specifications

• Operating voltage: 230 V AC
• Sound output level: 100 dB
• Protection rating: IP66
• Sound type: Continuous tone
• Current consumption: 15 mA
• Operating temperature: -30 to +60 °C
• Storage temperature: -40 to +70 °C
• Mounting type: Base mounting (for signal tower)
• Housing material: Polycarbonate (PC)
• Housing colour: Black
• Diameter: 70 mm
• Height: 65 mm
• Connection type: Screw terminals
• Relative humidity: 90% (non-condensing)
• Life expectancy: > 5,000 hours

Final note

With its combination of high sound output, rugged construction, and easy integration, the SL7-AP230 is a dependable choice for industrial signalling applications.
