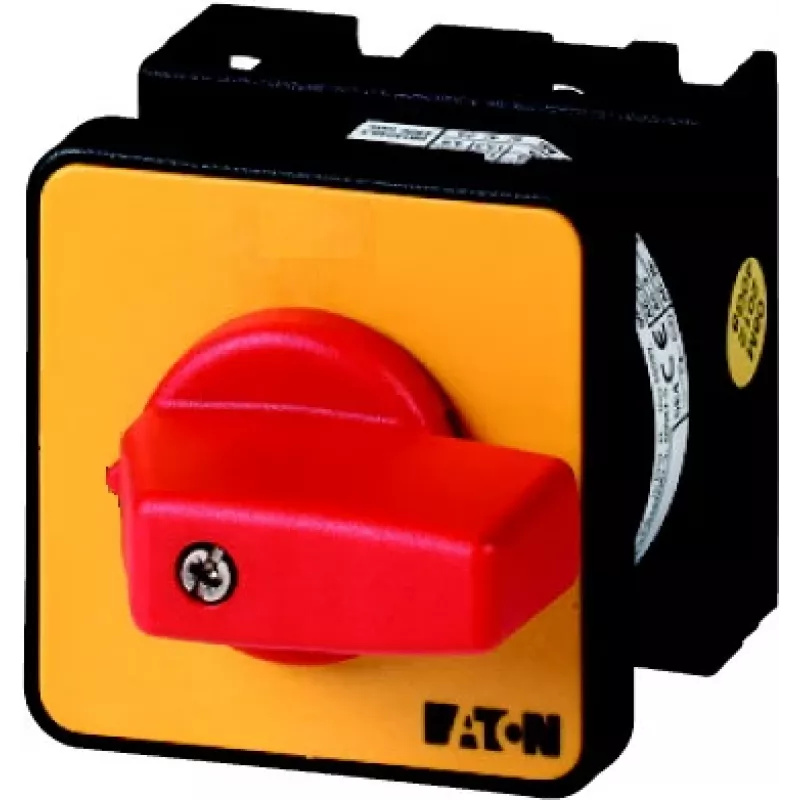

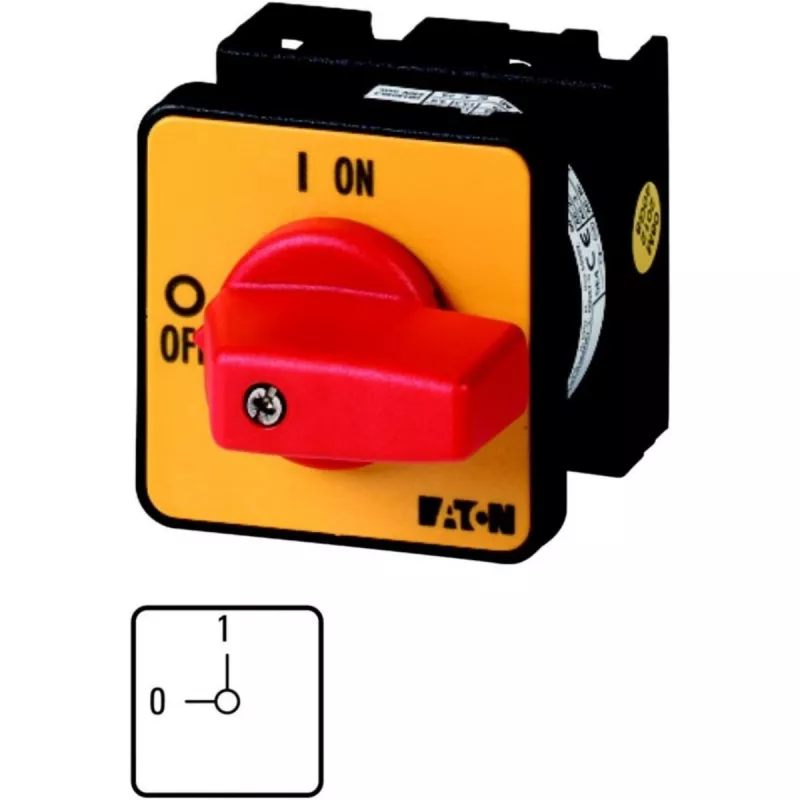

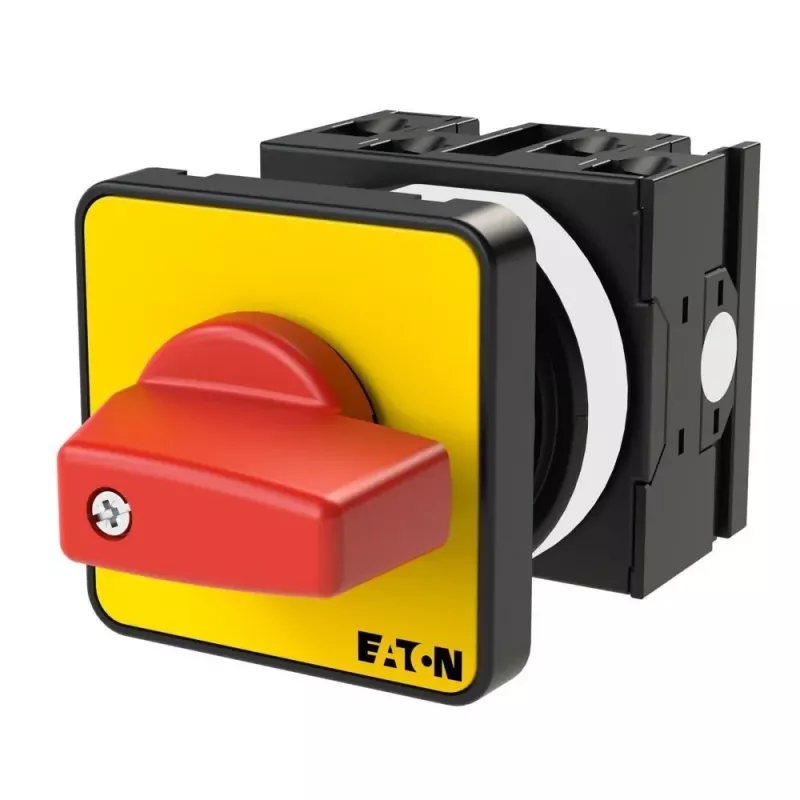

Eaton T0-2-1/E-RT 3-pólový vačkový spínač 20 A, IP65, červený/žltý 011082

The Eaton T0-2-1/E-RT is a robust 3-pole cam switch engineered for reliable ON/OFF control in industrial environments. Its high switching capacity of 20 A and 690 V AC makes it ideal for demanding motor and power circuits. With an IP65-rated front, this switch withstands dust and water jets, ensuring dependable operation even in harsh conditions.

Advantages

The T0-2-1/E-RT offers exceptional durability with over 100,000 mechanical operations. The red handle on a yellow front plate provides clear visual status indication, enhancing safety. Screw terminals ensure secure, low-maintenance connections, while the compact flush-mount design simplifies panel integration.

Suitable for

• Industrial control panels and machinery
• Motor disconnecting and main switch applications
• HVAC and pumping systems
• Food processing and packaging equipment
• Any application requiring a robust, IP65-rated ON/OFF switch

Key specifications

• Switch type: Cam switch / Main switch
• Number of poles: 3
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational power AC-23A (400V): 5.5 kW
• Rated operational power AC-3 (400V): 3 kW
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Flush mounting (panel mounting)
• Switching angle: 90°
• Number of switching positions: 2
• Handle colour: Red
• Front plate colour: Yellow
• Terminal type: Screw terminals
• Standards compliance: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C
• Mechanical durability: > 100,000 operations

Recommendations

For reliable and safe power switching in industrial applications, the Eaton T0-2-1/E-RT is an excellent choice. Its high electrical ratings, robust construction, and clear visual indication make it a preferred solution for panel builders and maintenance professionals.
