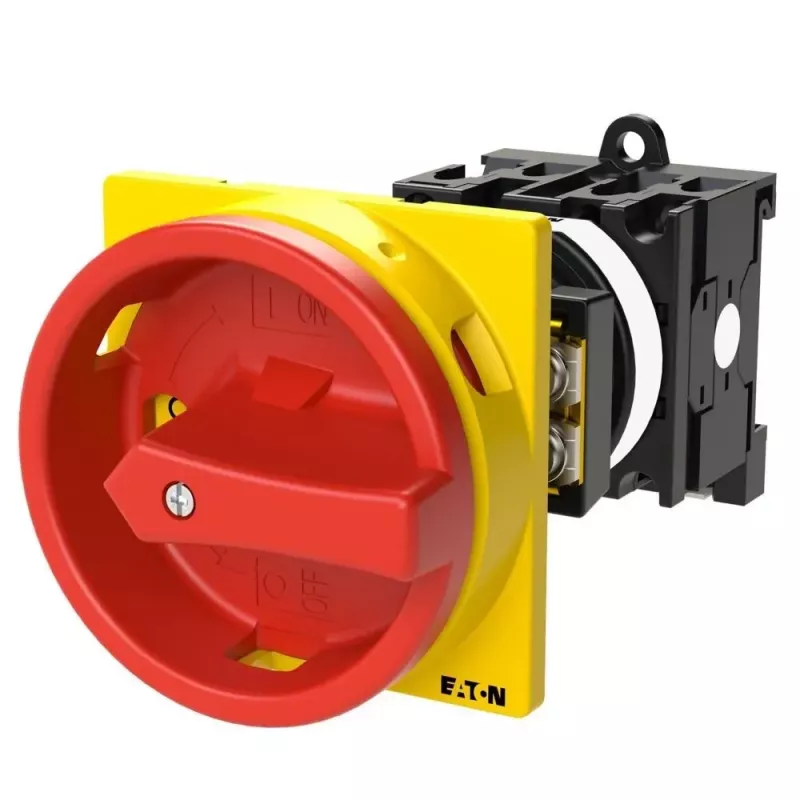

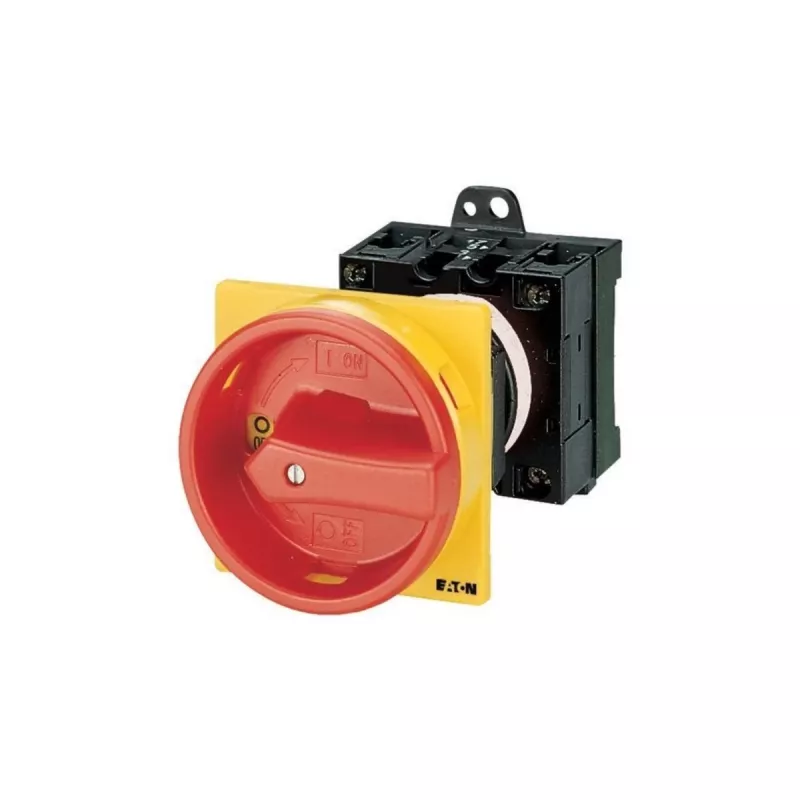

Eaton T0-2-1/V/SVB uzamykateľný vačkový spínač 20 A 1-pólový 90° červený/žltý

Industrial control panels need a main switch that can be locked in the OFF position for safe maintenance. The Eaton T0-2-1/V/SVB cam switch provides a 20 A, 1-pole ON-OFF switching function with a lockable red handle on a yellow front plate, ensuring compliance with lockout/tagout procedures.

Who is it for

Panel builders, machine OEMs, and maintenance teams who require a compact, front-mounted main switch with padlock capability for motor and control circuits up to 690 V AC.

Main features

• 20 A rated operational current (Ie)
• 1-pole, 90° switching angle, 2 positions (0-1)
• Lockable in OFF position with up to 3 padlocks
• Red handle, yellow front plate for high visibility
• Front or central mounting, screw terminals
• IP65 front protection, IP20 terminals

Specifications

• Switch type: Cam switch / main switch
• Rated operational current: 20 A
• Number of poles: 1
• Switching function: ON-OFF (0-1)
• Lockability: Lockable in 0 (OFF) position, up to 3 padlocks
• Handle colour: Red
• Front plate colour: Yellow
• Mounting type: Front mounting, central mounting
• Switching angle: 90°
• Number of switching positions: 2
• Rated operational voltage: 690 V AC
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Rated impulse withstand voltage: 6 kV
• Rated short-circuit withstand current: 0.32 kA (1s)
• Rated operational power AC-23A (400V): 5.5 kW
• Rated operational power AC-3 (400V): 3 kW
• Terminal type: Screw terminals

Tips

Use this switch as a main disconnect for small machines or as a control circuit isolator. For padlocking, use standard shackle padlocks with a maximum shackle diameter of 6 mm. Ensure the mounting surface is flat and rigid to maintain IP65 sealing.
