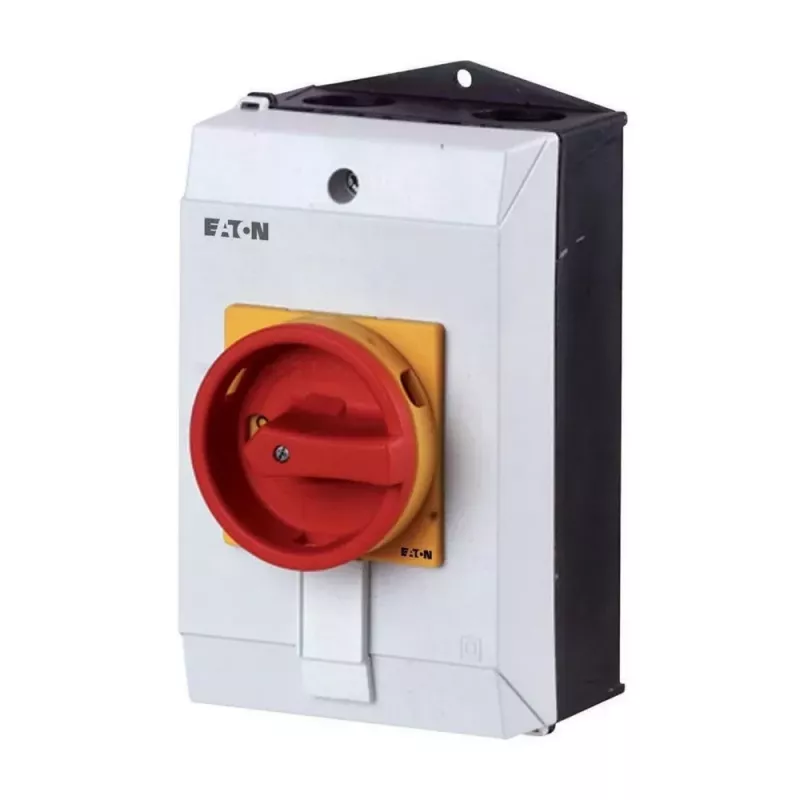

Eaton T0-3-15683/I1/SVB 3-pólový vačkový spínač, 20 A, červený rukoväť, žltý predná doska 207157

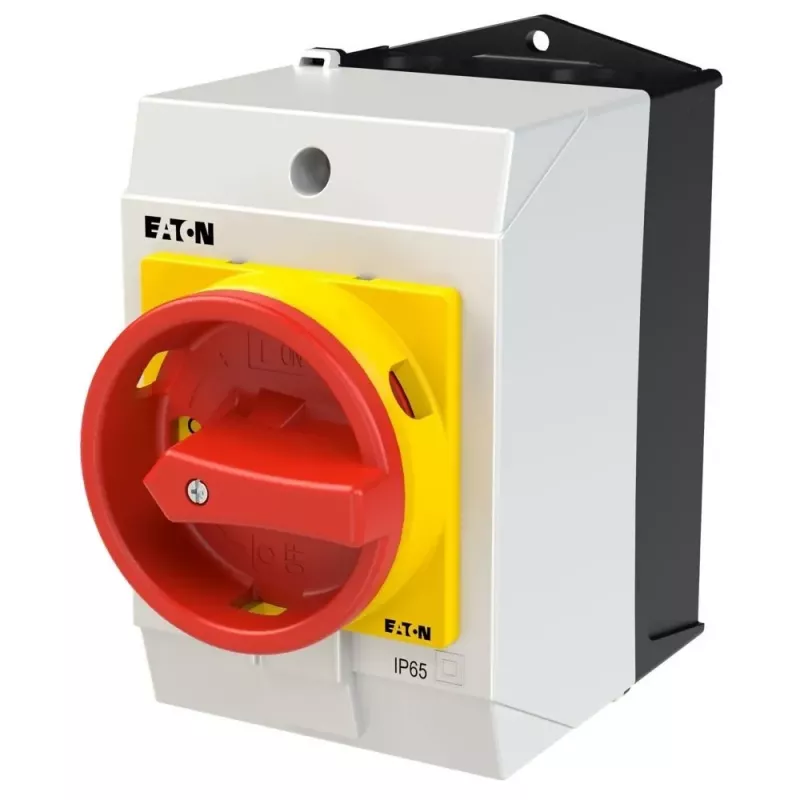

Industrial and panel applications often require a robust, clearly visible main switch that can reliably disconnect power under load. The Eaton T0-3-15683/I1/SVB is a 3-pole cam switch designed for exactly that: a compact, surface-mounted ON-OFF switch with a red handle and yellow front plate for high visibility and safe operation.

Who is it for

This switch is intended for machine builders, panel builders, and maintenance technicians who need a dependable main switch for motors, control circuits, or distribution boards. Its IP65 front protection makes it suitable for dusty or wet environments, while the screw terminals ensure secure wiring.

Main features

• 3-pole switching for three-phase circuits
• ON-OFF (I-0) switching function with 90° switching angle
• Rated operational current 20 A at 400 V AC-21A
• Rated operational voltage up to 690 V AC
• Red handle and yellow front plate for clear status indication
• Surface mounting with enclosed design
• Screw terminals for reliable connections

Specifications

• Switch type: Main switch / Cam switch
• Number of poles: 3
• Switching function: ON-OFF (I-0)
• Rated operational current (Ie): 20 A (400 V, AC-21A)
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated power (AC-23A, 400 V): 5.5 kW
• Rated power (AC-3, 400 V): 4 kW
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Surface mounting (enclosed)
• Handle colour: Red
• Front plate colour: Yellow
• Number of switching positions: 2
• Switching angle: 90°
• Terminal type: Screw terminals
• Rated short-circuit current (Icw): 320 A (1 s)

Tips

When installing, ensure the switch is mounted in an accessible location and that the handle position clearly indicates the ON/OFF state. For three-phase motor applications, verify that the rated power matches your motor's requirements. The IP65 front rating allows use in environments with dust or water jets, but the terminals should be protected from moisture.
