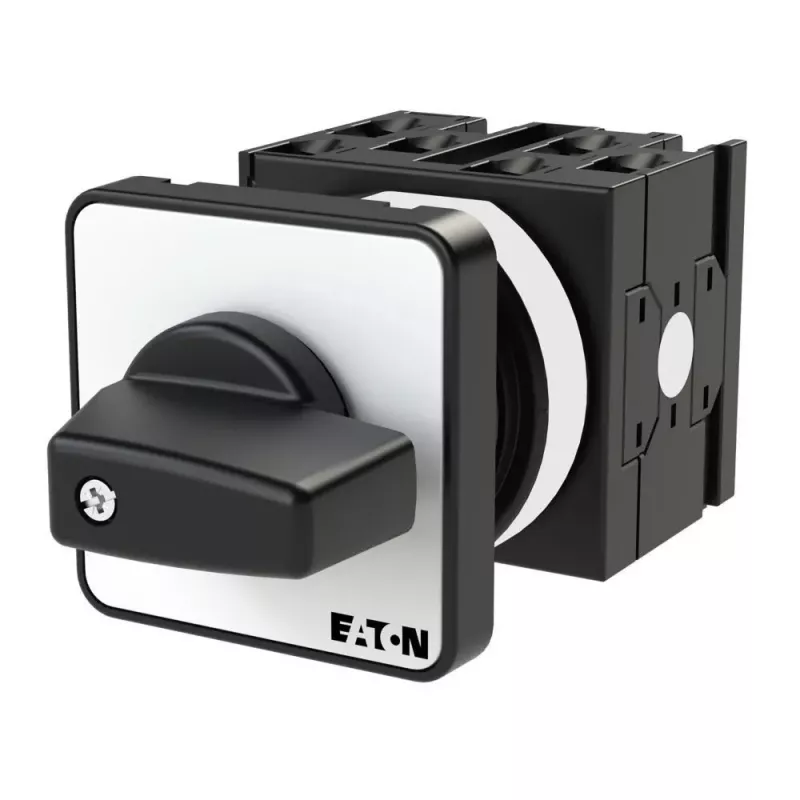

Eaton T0-3-8007/E 3-pólový prepínač, ZAP-VYP, 20A, čierny/sivý

The Eaton T0-3-8007/E stands out with its robust 3-pole switching capability and high 20 A rated current, making it a reliable choice for industrial control applications where a simple ON-OFF function is needed. Its black actuator on a grey front plate ensures clear visual status, while the IP65 front protection suits demanding environments.

Highlights

• 3-pole main switch with ON-OFF function
• Rated operational current of 20 A at 400 V AC-21A
• Front protection IP65, terminals IP20
• Black actuator, grey front plate
• Front mounting with central fixing

In daily use

This toggle switch is designed for straightforward manual control of three-phase circuits. The 90-degree switching angle gives a positive feel, and the screw terminals allow secure wiring. It handles motor loads up to 5.5 kW at AC-23A, making it suitable for small machines and distribution panels.

Full specifications

• Switch type: Main switch / control switch
• Number of poles: 3
• Switching function: ON-OFF
• Rated operational current (Ie) AC-21A, 400 V: 20 A
• Rated operational current (Ie) AC-23A, 400 V: 13.2 A
• Rated operational power (Pe) AC-23A, 400 V: 5.5 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Front mounting, central fixing
• Switching angle: 90 degrees
• Actuator colour: Black
• Front plate colour: Grey
• Terminal type: Screw terminals
• Standards compliance: IEC/EN 60947, VDE 0660
• Rated short-circuit withstand current (Icw): 320 A (1 s)
• Number of switching positions: 2 (ON, OFF)
• Ambient operating temperature: -25 to +50 °C
• Rated conditional short-circuit current: 6 kA (with 20 A gG/gL fuse)

Final note

The Eaton T0-3-8007/E combines dependable switching performance with a compact, front-mount design, ideal for industrial control panels.
