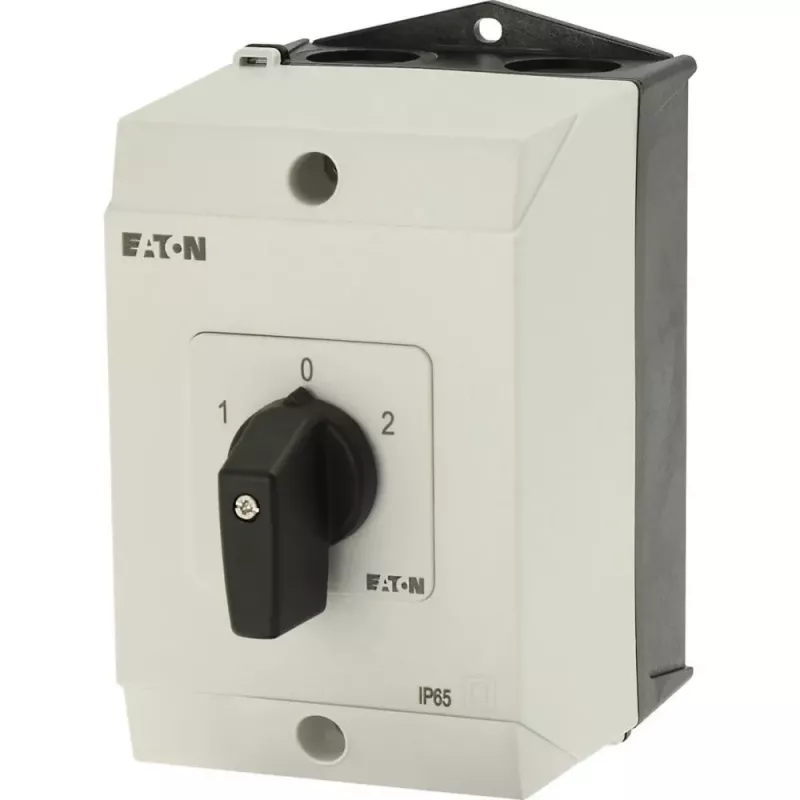

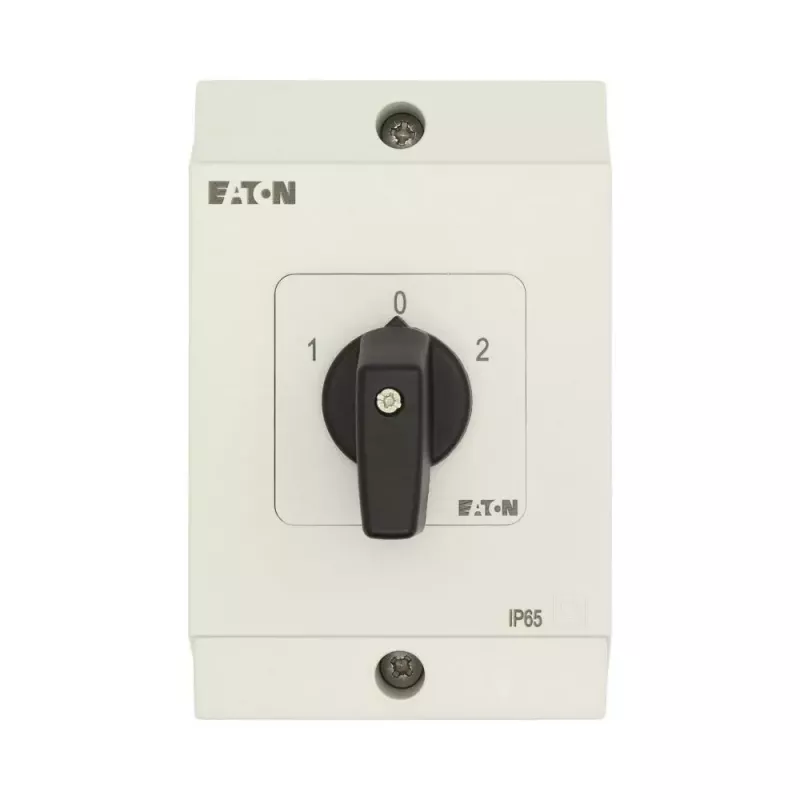

Eaton T0-3-8212/I1 20 A 3-pólový vačkový spínač, 2x60°, sivá/čierna 207123

The Eaton T0-3-8212/I1 is a 20 A cam switch with a 2x60° switching angle, designed for reliable control in industrial and commercial applications. Its 3-pole configuration and screw terminals provide secure connections, while the thumb-grip actuator and grey front plate offer straightforward operation and clear visibility. The flush mounting design integrates neatly into panels, and the switch is rated for 690 V AC, making it suitable for a wide range of power distribution tasks.

Highlights

• Rated uninterrupted current: 20 A
• 3-pole switching with 2x60° angle
• Flush mounting for panel integration
• Thumb-grip actuator in black, grey front plate
• Rated operational voltage: 690 V AC

In daily use

This cam switch is ideal for manual switching of motors, lighting, or auxiliary circuits. Its compact design and IP65 front protection make it suitable for environments where dust or moisture may be present. The screw terminals accept conductors from 1.5 to 2.5 mm², ensuring compatibility with common wiring practices. The switch is built to withstand frequent operation, with a mechanical life exceeding 500,000 cycles.

Full specifications

• Rated uninterrupted current (Iu): 20 A
• Number of poles: 3
• Switching angle: 60°
• Mounting type: Flush mounting
• Actuator type: Thumb-grip
• Actuator colour: Black
• Front plate colour: Grey
• Degree of protection (front): IP65
• Degree of protection (rear): IP20
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit making capacity (Icm): 640 A
• Rated short-circuit current (Icw): 320 A (1s)
• Mechanical life: > 0.5 x 10^6 operations
• Terminal type: Screw terminals
• Connection capacity: 1 x (1.5 - 2.5) mm² or 2 x (1.5 - 2.5) mm²
• Ambient operating temperature: -25 to +50 °C

Final note

The Eaton T0-3-8212/I1 combines robust construction with precise switching, making it a dependable choice for demanding electrical installations.
