Eaton T0-3-8451/I1 vačkový spínač 3-pólový 20A 690V čierny/biely 207133

Cam switch for reliable ON-OFF control of three-phase circuits up to 20 A at 400 V. The T0-3-8451/I1 provides a 90° switching angle with a clearly marked black/white 0-1 front plate, making status visible at a glance.

Advantages

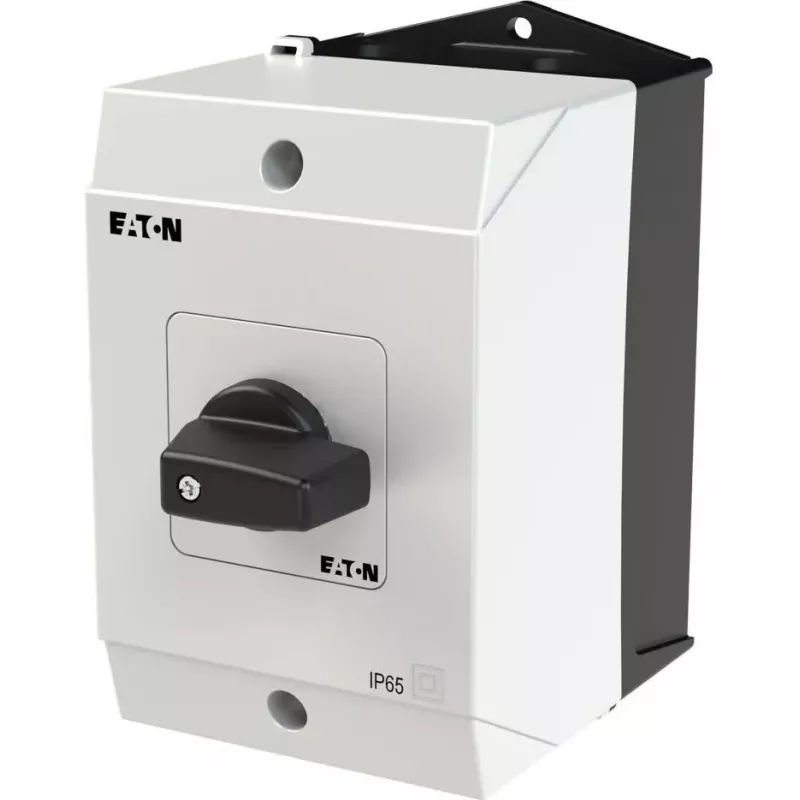

Front mounting with central fixing allows quick installation in control panels and machine housings. Screw terminals ensure secure conductor connection, while the IP65 front protection withstands dust and water jets in industrial environments.

Suitable for

• Motor and pump control circuits
• Heating and lighting systems
• Machine tools and conveyor equipment

Key specifications

• 3-pole cam switch, 2 positions (0-1)
• Rated operational current: 20 A at 400 V
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Rated power AC-23A at 400 V: 5.5 kW
• Front protection: IP65; terminals: IP20
• Switching angle: 90°
• Ambient temperature: -25 to +50 °C

Recommendations

For reliable manual isolation and switching of three-phase loads where a compact, panel-mount rotary switch is required.
