Eaton T3-4-8902/E vačkový spínač, 4-pólový, 32A, 690V, čelná montáž, IP65, čierny rukoväť, strieborný kovová predná doska 215222

Rated for 32 A at 690 V AC, this 4-pole cam switch handles demanding control tasks with a 90° switching angle and front-panel IP65 protection.

Overview

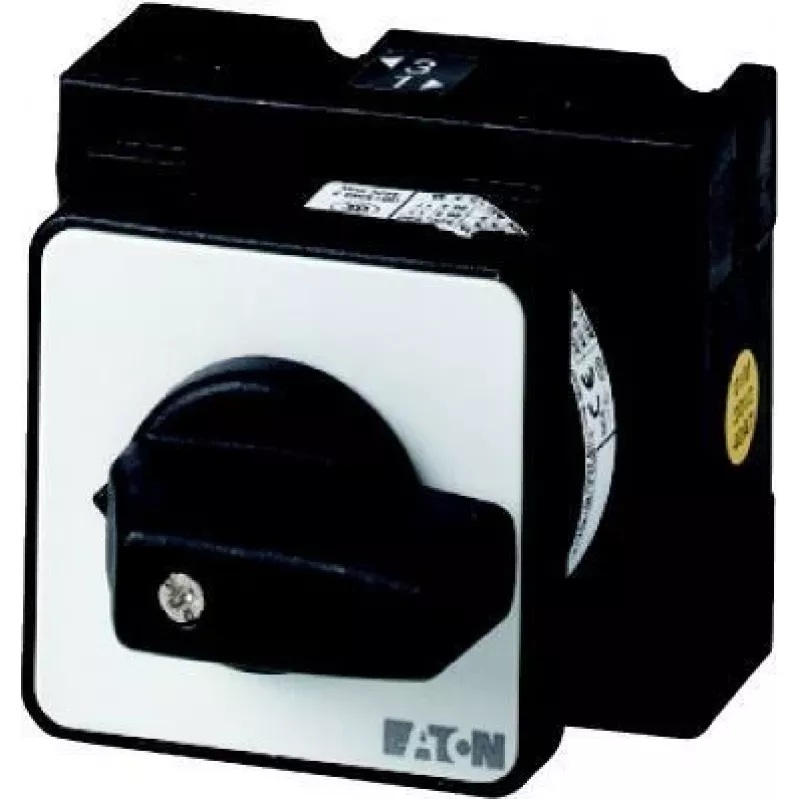

The Eaton T3-4-8902/E is a front-mounting cam switch with four poles and a black handle on a silver metallic front plate. It follows the 8902 switching program, supporting a rated uninterrupted current of 32 A and an operational voltage up to 690 V AC. The switch complies with IEC/EN 60947 and operates reliably from -25 °C to +50 °C.

What stands out

• Rated impulse withstand voltage of 6 kV for robust insulation performance.
• Front protection degree IP65, suitable for demanding environments.
• Mechanical life exceeding 500,000 operations for long service.
• Rated power of 15 kW at AC-23A, 400 V for motor control.

Technical details

• Switch type: Cam switch
• Number of poles: 4
• Mounting type: Front mounting
• Rated uninterrupted current (Iu): 32 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-time withstand current (Icw): 0.64 kA (1s)
• Rated conditional short-circuit current (Iq): 6 kA
• Switching angle: 90°
• Protection degree (front): IP65
• Protection degree (terminals): IP20
• Handle colour: Black
• Front plate colour/material: Silver / Metallic
• Switching program: 8902
• Terminal capacity (solid): 1 x 6 mm²
• Terminal capacity (flexible): 1 x 4 mm²
• Operating temperature range: -25 to +50 °C
• Mechanical life: > 0.5 x 10^6 operations
• Rated power (AC-23A, 400V): 15 kW

Our verdict

A robust 4-pole cam switch built for industrial control, offering high electrical ratings and reliable front-panel sealing.
