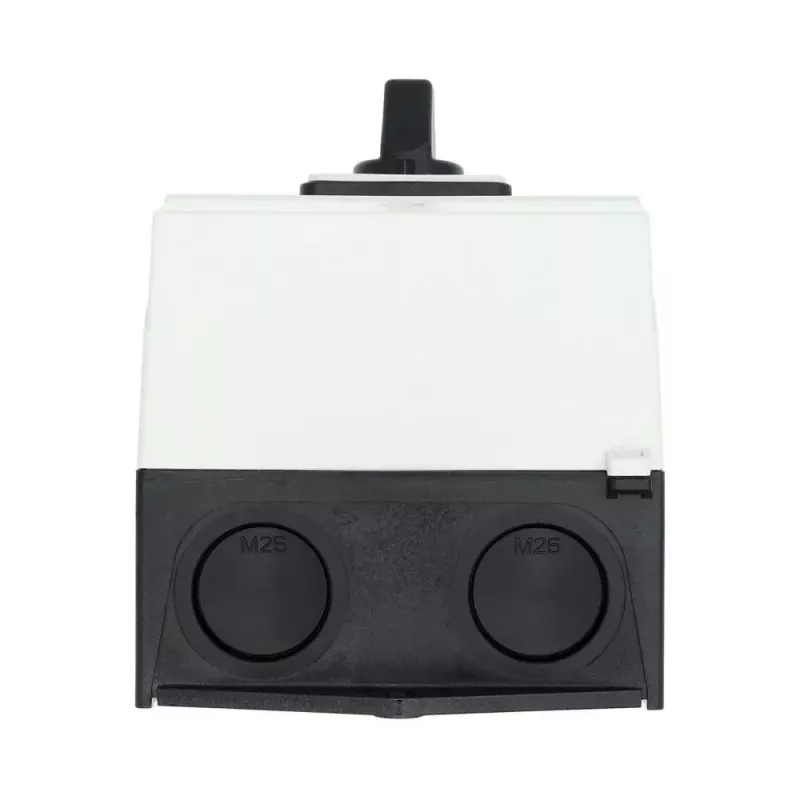

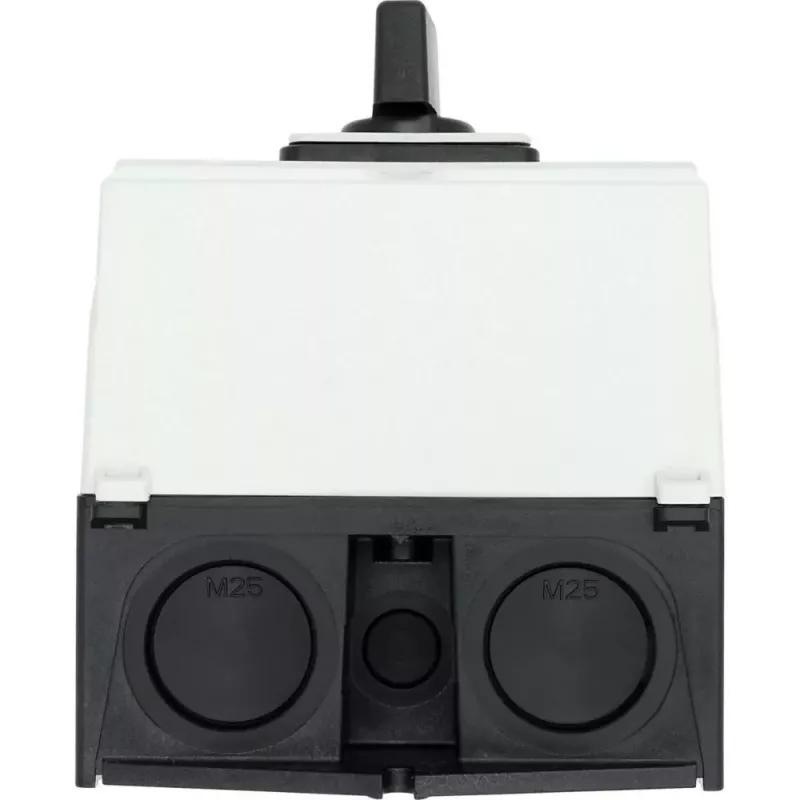

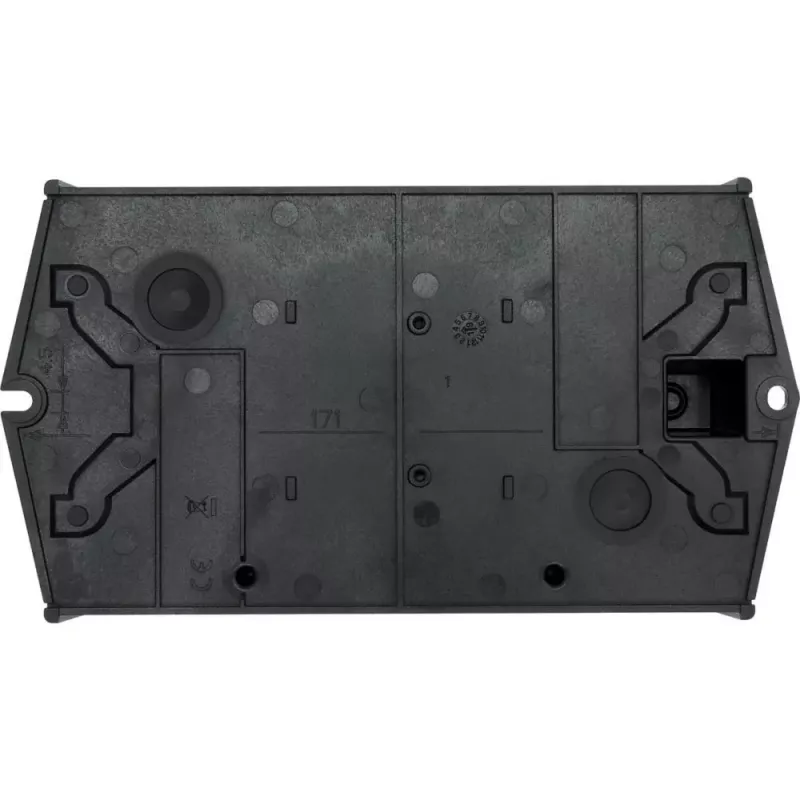

Eaton T3-4-8902/I2 4-pólový 32A hlavný vypínač, sivý 215224

With a rated uninterrupted current of 32 A and a 4-pole configuration, the Eaton T3-4-8902/I2 delivers reliable switching for industrial control circuits up to 690 V AC. Its enclosed design with IP65 front protection ensures dependable operation in demanding environments.

Overview

The Eaton T3-4-8902/I2 is a surface-mounted main switch designed for manual isolation and control of electrical circuits. It features a 90° switching angle with two positions (ON/OFF) and screw terminals for secure connections. The grey insulated housing provides durability and safety.

What stands out

• High switching capacity: 15 kW at 400 V AC-23A
• Robust construction with IP65 front protection
• Includes 1 NO and 1 NC auxiliary contacts for status signaling
• Wide operating temperature range from -25°C to +50°C

Technical details

• Switch type: Main switch / Disconnect switch / Cam switch
• Number of poles: 4
• Rated uninterrupted current (Iu): 32 A
• Rated operational voltage (Ue): 690 V AC
• Rated operational power AC-23A, 400V: 15 kW
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Surface mounting (enclosed)
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Connection type: Screw terminals
• Auxiliary contacts: 1 NO + 1 NC
• Housing material: Insulated material (e.g., polycarbonate)
• Rated short-circuit withstand current (Icw): 0.6 kA for 1s
• Rated impulse withstand voltage (Uimp): 6 kV
• Operating temperature range: -25 to +50 °C

Our verdict

A dependable 4-pole main switch with high current rating and auxiliary contacts, ideal for industrial control panels and machinery isolation.
