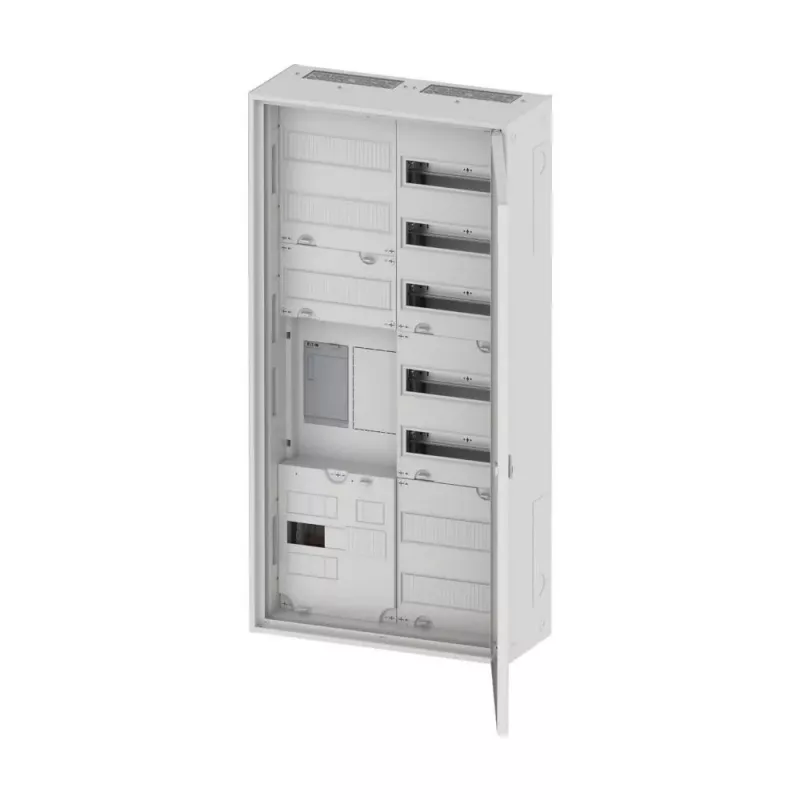

Eaton ZSD-ZV-1100-BKE rozvádzač eHZ 1100mm na omietku biela (EP-502605)

The Eaton ZSD-ZV-1100-BKE is a high-quality metering cabinet designed for modern electrical installations. With a height of 1100 mm, it provides ample space for one electronic household meter (eHZ) and one reserve place, along with an integrated APZ field for additional applications. This surface-mounted cabinet is made from powder-coated sheet steel in white (RAL 9016) and offers reliable protection with IP31 rating.

Advantages

This cabinet ensures safe and organized metering with a 5-pole 250 A main busbar and pre-punched knockouts for easy cable entry. It complies with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4100 standards, guaranteeing high quality and safety.

Suitable for

• Residential and commercial metering applications
• Installations requiring eHZ meters
• Surface-mounted setups in utility rooms or basements

Key specifications

• Cabinet Type: Metering Cabinet
• Mounting: Surface-mounted
• Meter Places: 1 eHZ + 1 reserve
• APZ Field: Integrated
• Connection Cross-section: 16 mm²
• Protection Class: IP31
• Material: Sheet steel, powder-coated
• Colour: White (RAL 9016)
• Dimensions: 1100 x 550 x 210 mm (HxWxD)
• Distribution Fields: 1, 12 TE each
• Main Busbar: 5-pole, 250 A
• Door: Opaque steel door
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Rated Current: Up to 63 A

Recommendations

For optimal installation, ensure proper cable routing and use appropriate accessories. This cabinet is ideal for new constructions or retrofits requiring a reliable metering solution.
