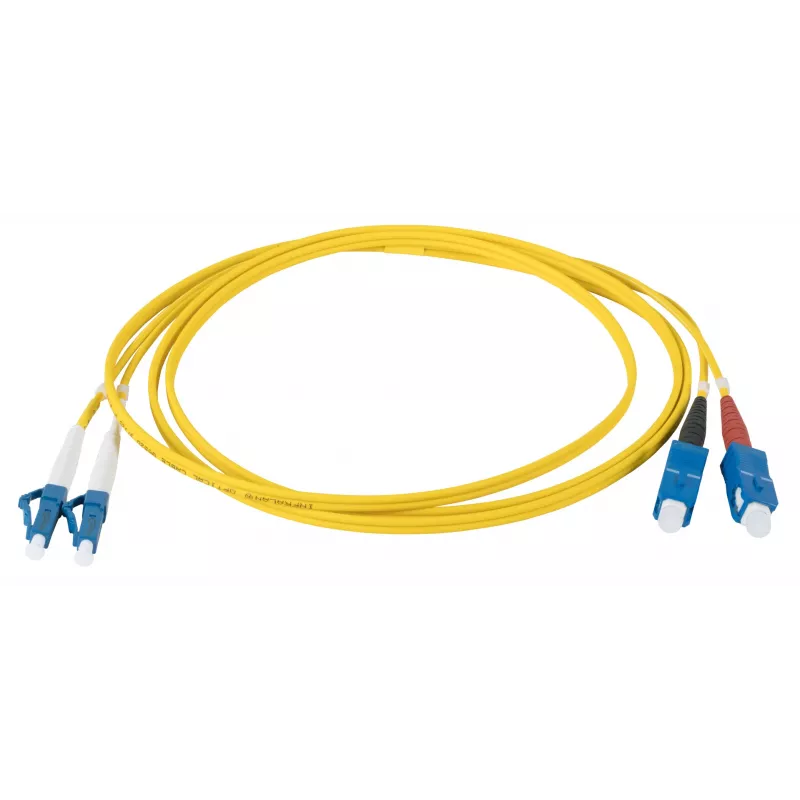

EFB Electronics IPL-DR-LCUSCU-2-0500 - 5 m - I-V(ZN) H - OS2 - LC - SC

The EFB Electronics IPL-DR-LCUSCU-2-0500 is a high-quality fiber optic patch cable designed for reliable single-mode transmission. With a length of 5 meters and OS2 standard, it ensures low signal loss and high performance for data centers, telecommunications, and LAN applications.

Advantages

This cable features LC/UPC to SC/UPC duplex connectors, providing secure and stable connections. The LSZH jacket material ensures safety in enclosed spaces by emitting low smoke and zero halogen in case of fire. The I-V(ZN) H construction makes it suitable for both indoor and outdoor use.

Suitable for

• Data centers
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments

Key specifications

• Fiber mode: Single-mode
• Fiber standard: OS2 (ITU-T G.657.A1/G.652.D)
• Connector A: LC/UPC Duplex
• Connector B: SC/UPC Duplex
• Cable length: 5 m
• Number of fibers: 2
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable construction: I-V(ZN) H
• Jacket color: Yellow
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Insertion loss (max): ≤ 0.3 dB
• Return loss (min): ≥ 50 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 10 mm
• Polarity: A-B (Crossed)

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for high-speed data transmission over long distances.
