EFB-Elektronik spájacia krabica výsuvná 1U bez predného panelu neosadená čierna

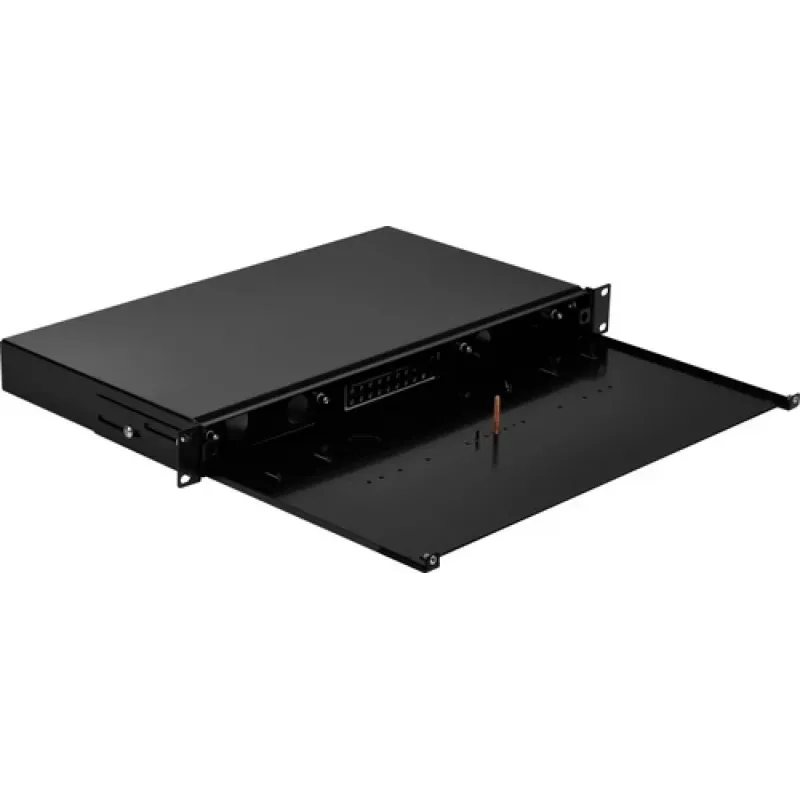

The EFB-Elektronik VSB-A-SW is a high-quality 19-inch rack-mount splice box designed for professional fiber optic cable management, splicing, and termination. This 1U pull-out drawer unit is unpopulated and comes without a front panel, offering maximum flexibility for custom configurations. Ideal for data centers, telecom rooms, and network installations, it provides a robust and organized solution for fiber optic splicing.

Advantages

Space-saving 1U design with pull-out drawer for easy access. Unpopulated configuration allows you to choose your own adapters and pigtails. Durable steel construction with black powder coating (RAL 9005). Adjustable mounting brackets for varying rack depths. Integrated locking mechanism secures the drawer.

Suitable for

• Fiber optic cable splicing and termination in 19-inch racks
• Data centers and telecommunication rooms
• FTTH and structured cabling installations
• Custom fiber optic network setups requiring flexible adapter configurations

Key specifications

• Product Type: Fiber Optic Splice Box
• Mounting: 19-inch Rack Mount, 1U
• Design: Pull-out / Extendable Drawer
• Configuration: Unpopulated (without adapters or pigtails)
• Front Panel: Without Front Panel (requires separate purchase)
• Material: Steel, powder-coated
• Color: Black (RAL 9005)
• Cable Entry: Rear cable entry points (supports up to 4 cable glands)
• Splice Tray Capacity: Up to 4 standard splice trays (e.g., EFB VSB-E-ST-12/24)
• Max Fiber Capacity: Up to 96 fibers (with 4x 24-fiber splice trays)
• Compatibility: Compatible with various fiber optic adapter types (SC, LC, ST, FC, etc.) via separate front panels
• Protection Class: IP20 (indoor use)
• Depth Adjustment: Adjustable mounting brackets for varying rack depths
• Locking Mechanism: Integrated locking mechanism for pull-out drawer

Recommendations

For a complete solution, pair this splice box with EFB splice trays (e.g., VSB-E-ST-12/24) and a suitable front panel with your desired adapter type (SC, LC, etc.). Ensure proper fiber management and splicing tools are used for installation.
