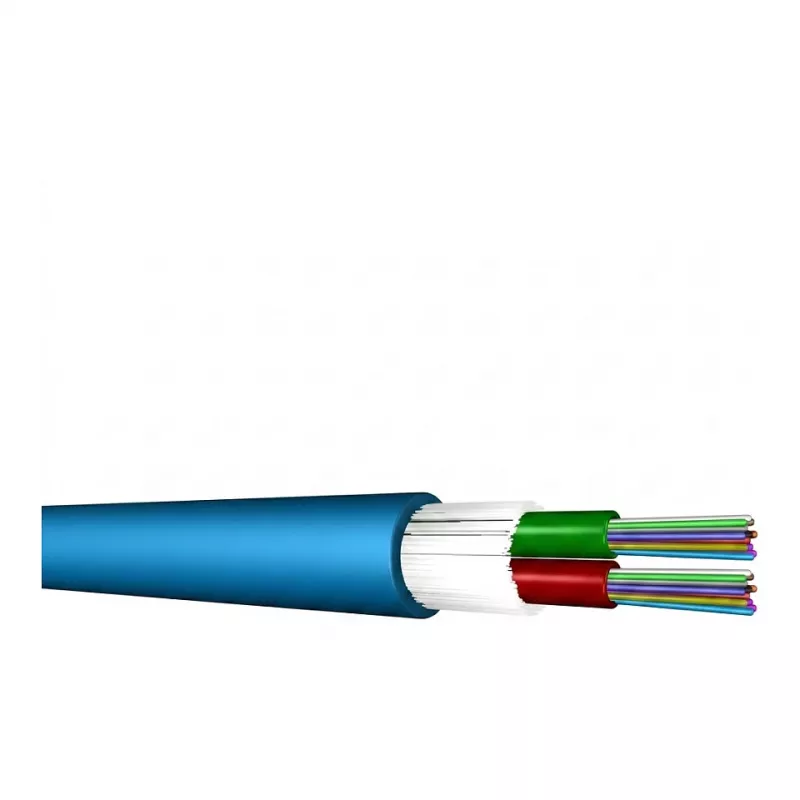

EFB U-DQ(ZN)BH OM3 24G (2x12) Eca 3000N LSZH čierny 8mm optický kábel

The EFB U-DQ(ZN)BH OM3 24G (2x12) Eca 3000N LSZH Black 8mm is a high-performance fiber optic cable designed for universal indoor/outdoor applications. With 24 multimode OM3 fibers arranged in 2 loose tubes of 12 fibers each, this cable delivers reliable data transmission for demanding network environments.

Advantages

This cable offers low smoke zero halogen (LSZH) sheath for enhanced safety, high tensile strength of 3000 N, and excellent attenuation performance. The non-metallic strain relief using aramid yarns ensures durability and flexibility.

Suitable for

• Data center cabling
• Enterprise network backbones
• Fiber-to-the-desk installations
• Indoor/outdoor campus networks

Key specifications

• Fiber Type: Multimode OM3 (50/125 µm)
• Fiber Count: 24 fibers (2x12)
• Sheath Material: LSZH, Color: Black
• Outer Diameter: 8 mm
• Tensile Strength: 3000 N
• CPR Fire Class: Eca (EN 50575)
• Attenuation: ≤2.3 dB/km @850nm, ≤0.6 dB/km @1300nm
• Bandwidth: 1500 MHz·km (OFL) / 2000 MHz·km (EMB) @850nm
• Operating Temperature: -20°C to +60°C
• Minimum Bending Radius: 160 mm (20 x OD)
• Crush Resistance: 1500 N/10cm

Recommendations

For optimal performance, use with OM3-compatible connectors and ensure proper cable management to maintain bending radius limits.
