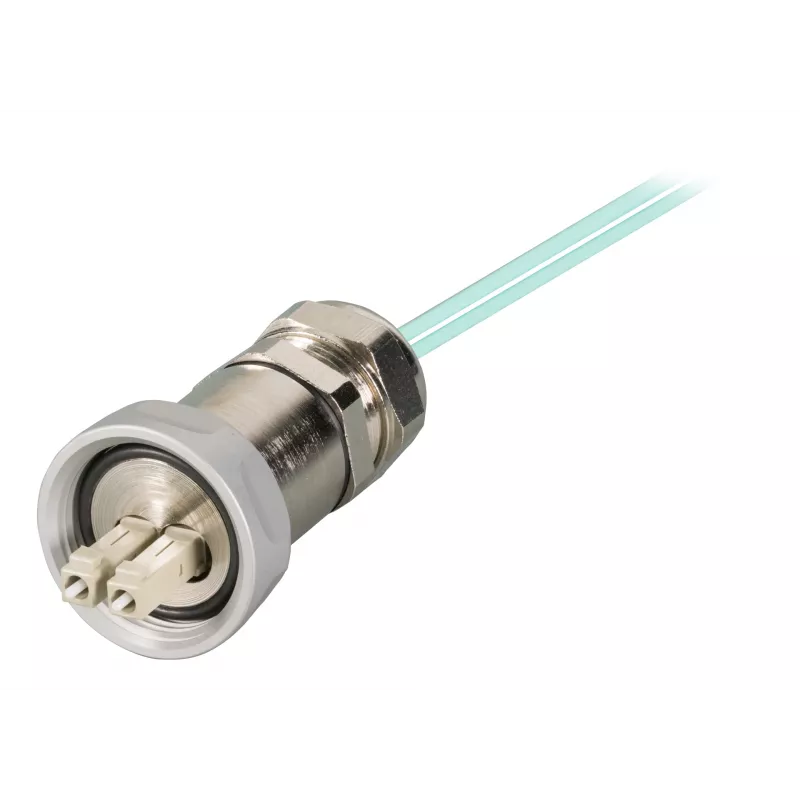

EFB Elektronik IP67 káblová priechodka M25 LC-Duplex konektor samec na LC-Duplex konektor samec OM3 5m

The EFB Elektronik IP67 Cable Gland M25 LC-Duplex Plug to LC-Duplex Plug OM3 5m is a high-performance fiber optic patch cable designed for industrial and outdoor applications. With an IP67 rating and M25 cable gland compatibility, it provides robust protection against dust and water ingress, ensuring reliable data transmission in harsh environments. The cable features OM3 multimode fiber with 50/125 µm core/cladding, duplex LC connectors, and a length of 5 meters, making it ideal for high-speed networks requiring up to 10 Gbps.

Advantages

This cable offers exceptional durability and performance. The IP67 rating guarantees protection against dust and temporary immersion in water, while the LSZH jacket ensures low smoke and zero halogen emissions for safety in enclosed spaces. The OM3 fiber supports high bandwidth over longer distances, and the pre-terminated LC-Duplex connectors simplify installation. The M25 thread allows easy integration with compatible cable glands.

Suitable for

• Industrial Ethernet networks in factories and automation systems
• Outdoor fiber optic connections in telecommunications and surveillance
• Data centers requiring reliable, high-speed interconnects
• Harsh environments where moisture and dust are present

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Connector A: LC-Duplex
• Connector B: LC-Duplex
• Cable Length: 5 meters
• Ingress Protection: IP67
• Cable Gland Compatibility: M25 Thread
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Aqua
• Attenuation at 850nm: ≤ 2.5 dB/km
• Attenuation at 1300nm: ≤ 0.8 dB/km
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, pair this cable with compatible IP67-rated connectors and cable glands. Ensure proper routing to maintain the minimum bend radius. Suitable for use with OM3 transceivers and switches supporting 10 Gbps Ethernet.
