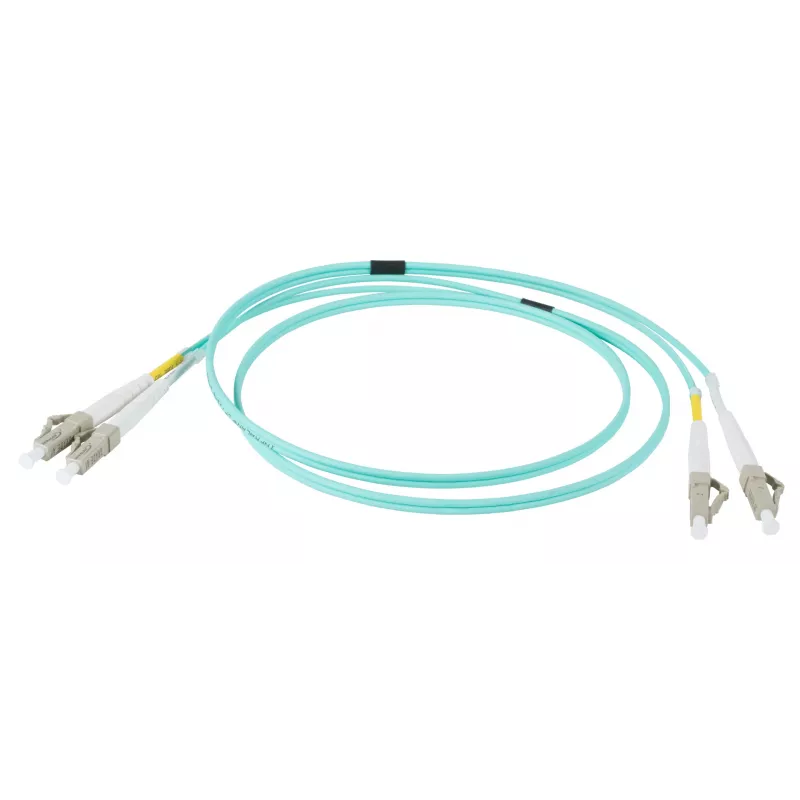

EFB Elektronik IPL-DR-LCULCU-3-0100 optický patch kábel, 1 m, OM3, LC/UPC na LC/UPC, Duplex, LSZH, Aqua

The EFB Elektronik IPL-DR-LCULCU-3-0100 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 1 meter and OM3 multimode fiber, this duplex cable supports high-bandwidth applications up to 10 Gbps over distances up to 300 meters. The LC/UPC connectors ensure low insertion loss and high return loss, making it ideal for data centers, LANs, and SANs.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥30 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The aqua-colored jacket provides easy identification for OM3 fiber.

Suitable for

• Data Centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments
• High-speed backbone connections

Key specifications

• Fiber Type: Multimode OM3 (50/125 µm)
• Connectors: LC/UPC to LC/UPC, Duplex
• Cable Length: 1 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Construction: Duplex Zipcord
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥30 dB (typical)
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60794-2, TIA/EIA-568-C.3, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces and is suitable for both indoor and outdoor use (I-V(ZN) H designation).
