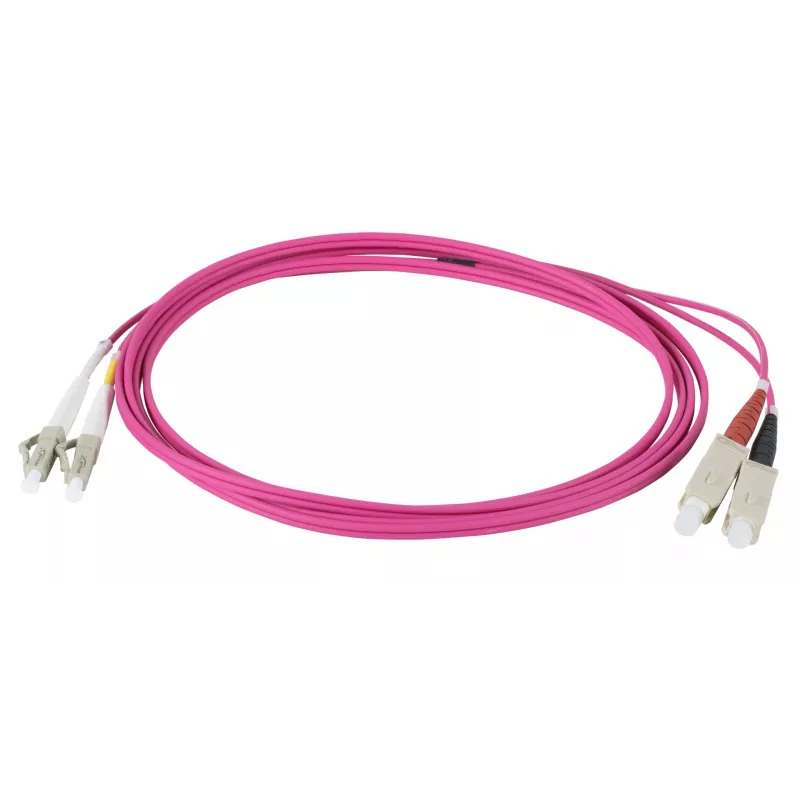

EFB Elektronik IPL-DR-LCUSCU-4-0750 vláknový patch kábel, 7,5 m, OM4, LC na SC, duplex, LSZH

The EFB Elektronik IPL-DR-LCUSCU-4-0750 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 7.5 meters and OM4 multimode fiber, it supports high-bandwidth applications up to 40 Gbps. The cable features LC to SC connectors, duplex construction, and a low smoke zero halogen (LSZH) jacket for safety.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. The duplex design allows for bidirectional communication, and the 50/125 µm core/cladding diameter ensures compatibility with standard multimode equipment.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications infrastructure
• High-speed local area networks (LANs)

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Connector A: LC
• Connector B: SC
• Cable Length: 7.5 m
• Cable Construction: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Wavelength Support: 850 nm, 1300 nm
• Attenuation at 850 nm: ≤ 3.0 dB/km
• Attenuation at 1300 nm: ≤ 1.0 dB/km
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to 70°C
• Number of Fibers: 2

Recommendations

For optimal performance, pair this cable with OM4-rated transceivers and ensure proper handling to maintain bend radius. Ideal for high-speed networks requiring reliable, low-latency connections.
