EFB ELEKTRONIK MPO-PLUS/APC(F)-LC trunk kábel OS2 8 vlákien Typ B LSZH žltý 5 m

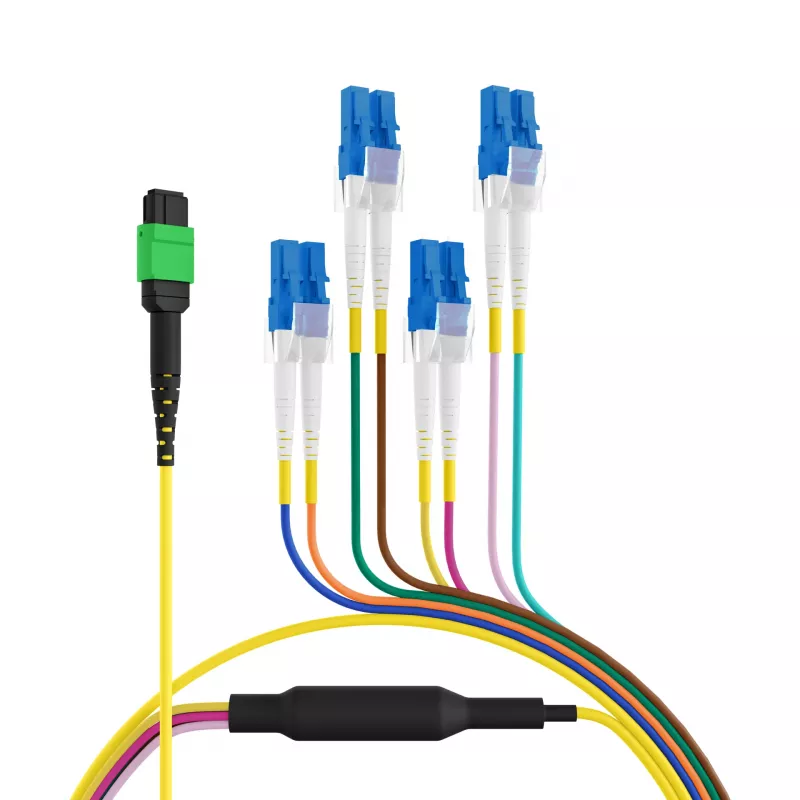

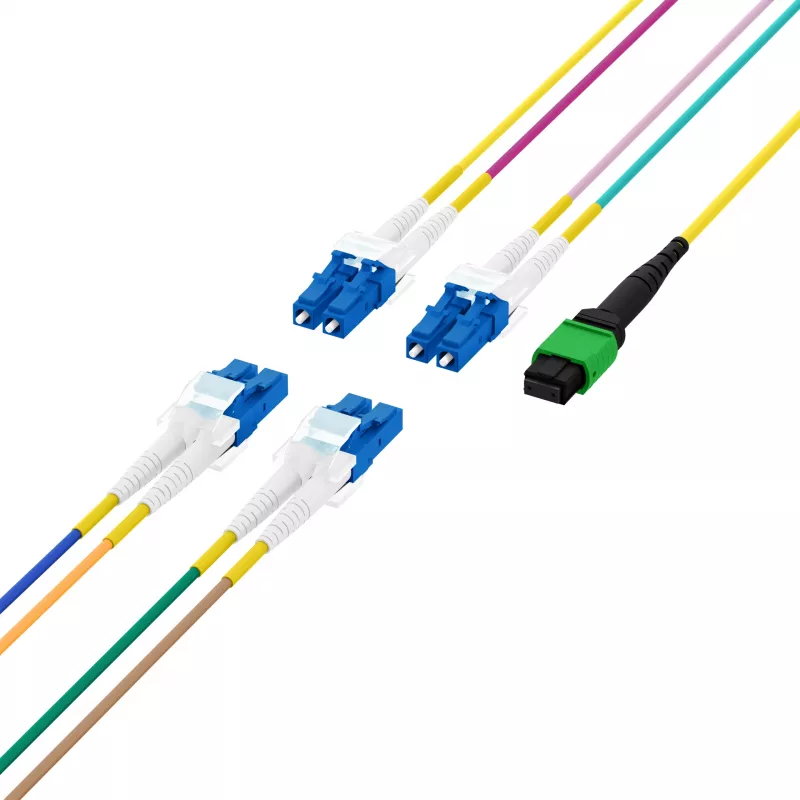

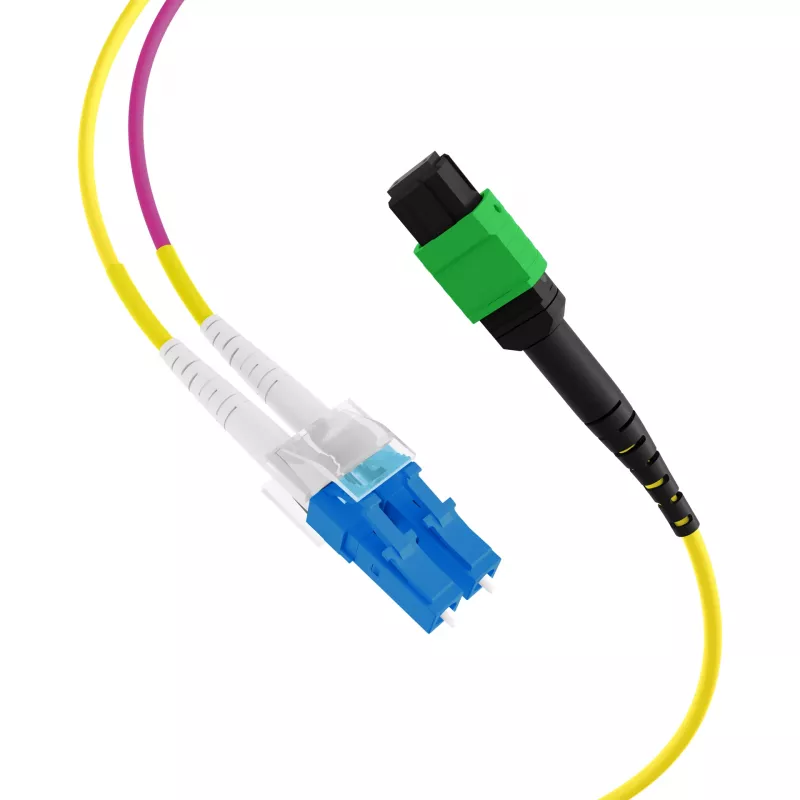

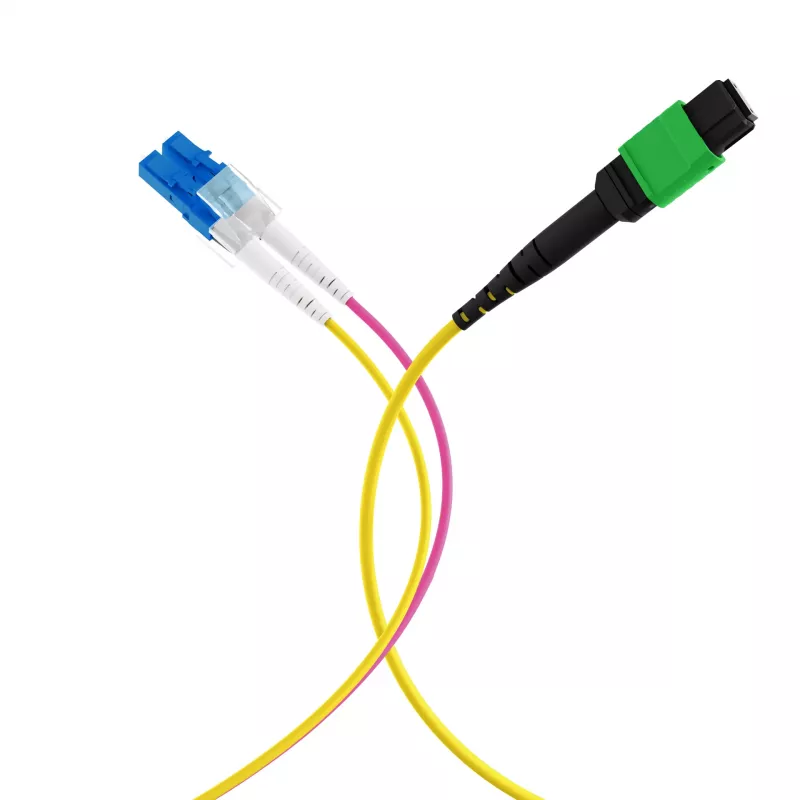

The EFB ELEKTRONIK MPO-PLUS/APC(F)-LC Trunk Cable is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding network environments. This cable features 8 OS2 single-mode fibers with MPO-PLUS APC female to 4x LC duplex connectors, polarity type B (cross-over), and a yellow LSZH jacket. Ideal for data centers, SAN, LAN, and telecommunications applications.

Advantages

Low insertion loss (≤0.35 dB MPO, ≤0.25 dB LC) and high return loss (≥60 dB MPO APC, ≥50 dB LC UPC) ensure excellent signal integrity. LSZH jacket provides safety in confined spaces. Type B polarity simplifies cross-over connections.

Suitable for

• Data center backbone cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: OS2 Single-mode
• Fiber Count: 8 Fibers
• Connector A: MPO-PLUS APC (Female)
• Connector B: 4x LC Duplex
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Length: 5 meters
• Insertion Loss (MPO-PLUS): ≤ 0.35 dB
• Insertion Loss (LC): ≤ 0.25 dB
• Return Loss (MPO-PLUS APC): ≥ 60 dB
• Return Loss (LC UPC): ≥ 50 dB
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation (1310nm): ≤ 0.35 dB/km
• Attenuation (1550nm): ≤ 0.25 dB/km
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and installation of MPO connectors. Use with compatible MPO patch panels and LC transceivers.
