EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) patch kábel OS2 8 vlákien Typ B LSZH žltý 5m

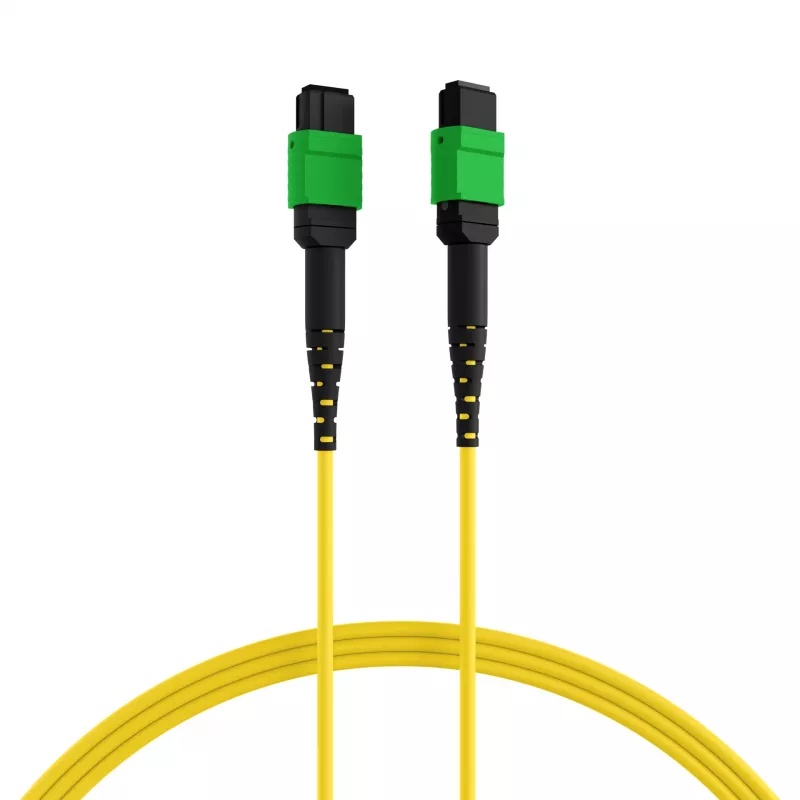

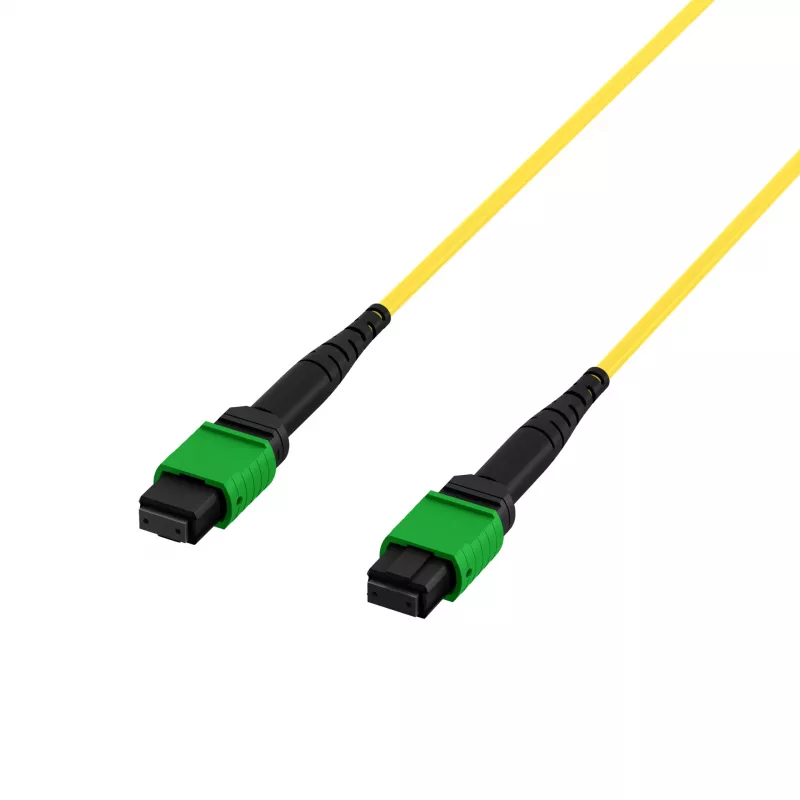

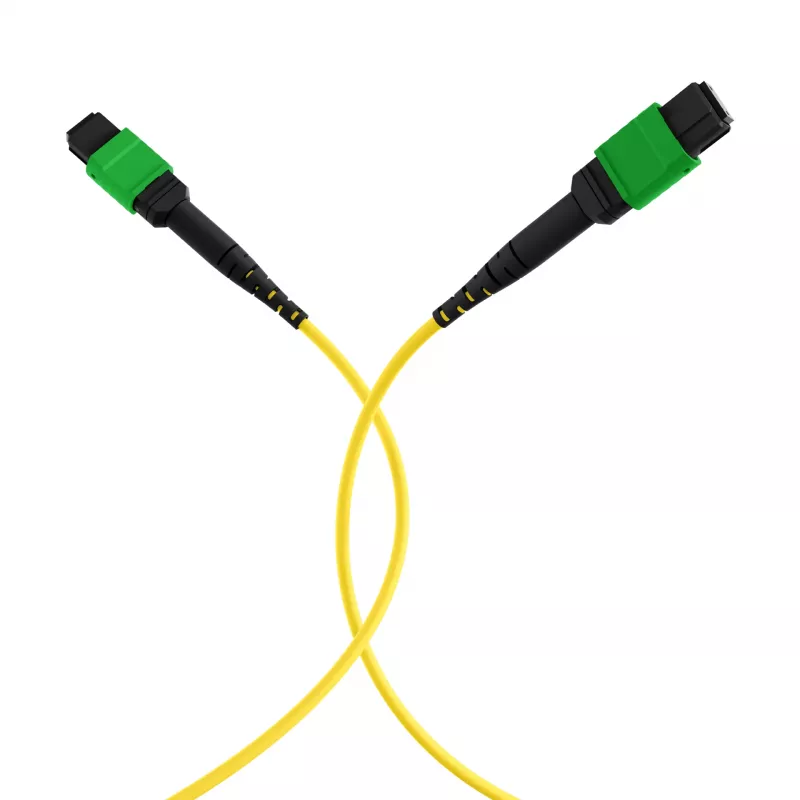

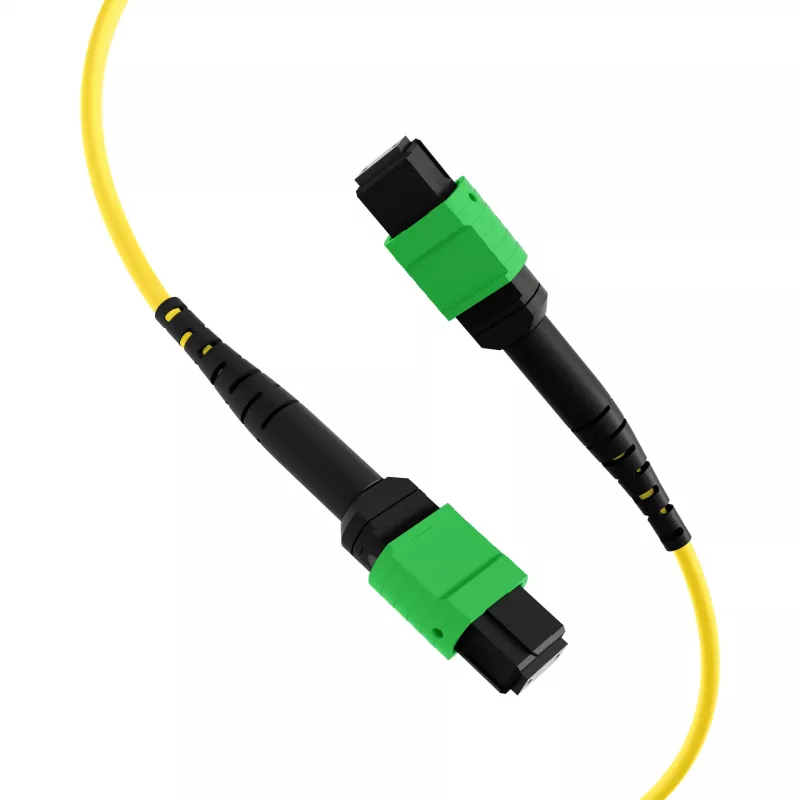

The EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) Patch Cable is a high-performance fiber optic patch cable designed for data center and high-density networking applications. It features OS2 single-mode fiber with 8 fibers, MPO-PLUS APC female connectors on both ends, and Type B polarity. The cable is constructed with a LSZH (Low Smoke Zero Halogen) jacket in yellow, ensuring safety and easy identification. With a length of 5 meters, it provides reliable connectivity for demanding environments.

Advantages

This patch cable offers low insertion loss (≤0.35 dB) and high return loss (≥60 dB), ensuring excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. The MPO-PLUS connectors provide high-density connections, saving space in patch panels and equipment.

Suitable for

• Data centers
• High-density networking
• Telecommunications
• Enterprise networks
• Fiber-to-the-home (FTTH) applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: OS2 Single-mode
• Connector A: MPO-PLUS APC Female
• Connector B: MPO-PLUS APC Female
• Fiber Count: 8 Fibers
• Polarity Type: Type B
• Cable Length: 5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Connector Polishing: APC (Angled Physical Contact)
• Insertion Loss (Typical): ≤ 0.35 dB
• Return Loss (Typical): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Diameter: 3.0 mm
• Compliance: RoHS, REACH
• Flame Retardancy: IEC 60332-1
• Connector Ferrule Material: Zirconia Ceramic
• Mating Cycles: > 500

Recommendations

For optimal performance, ensure proper handling and storage of fiber optic cables. Avoid sharp bends and excessive tension. Use appropriate cleaning tools for connectors to maintain low insertion loss.
