EFB Elektronik MPOF12LCOS2-2 MPO-PLUS/APC(F)-LC trunk kábel OS2 12 vlákien typ B LSZH žltý 2m

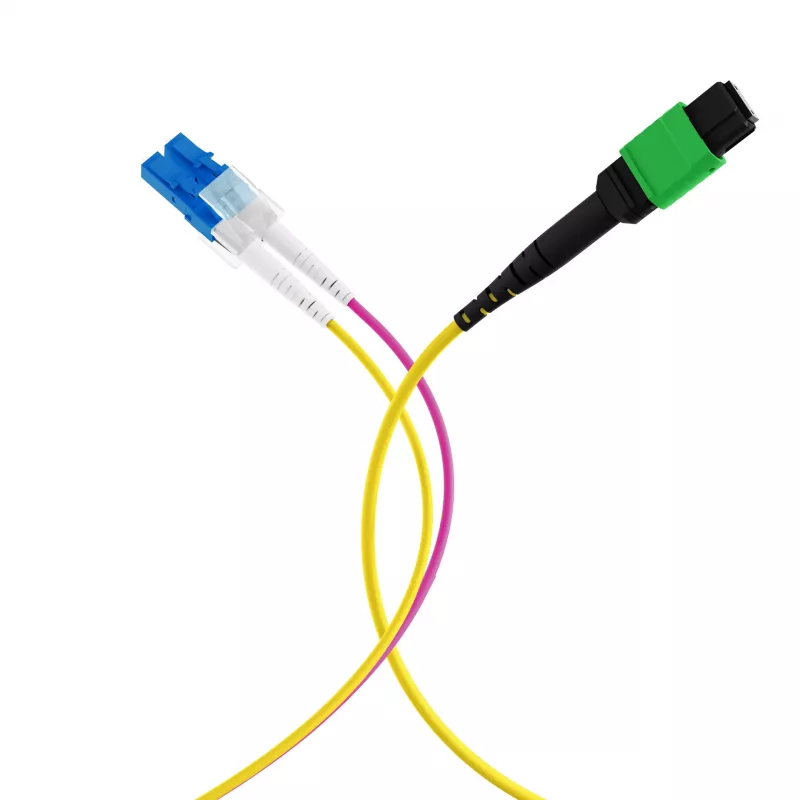

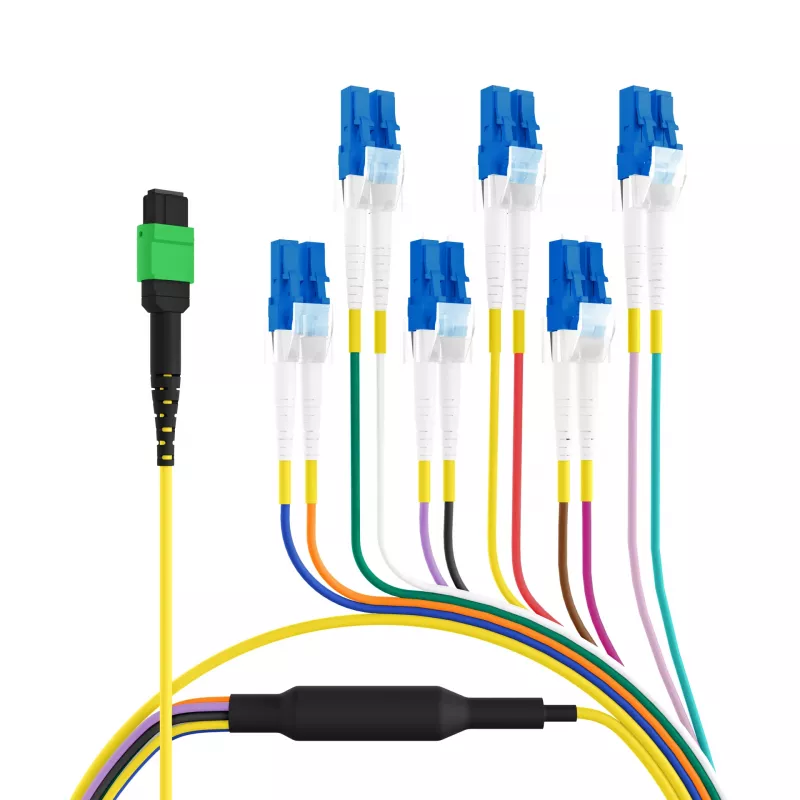

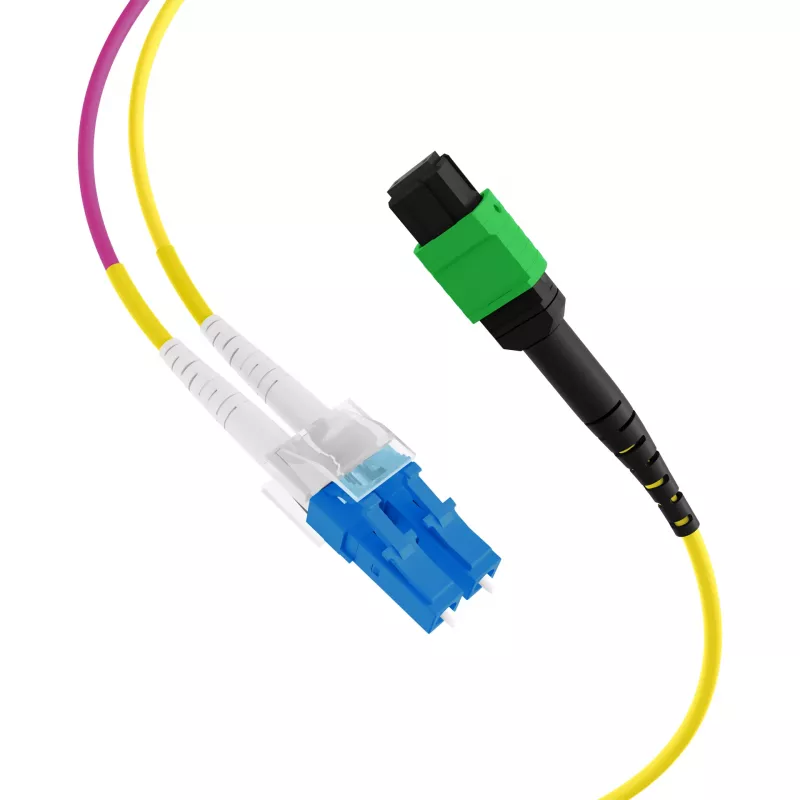

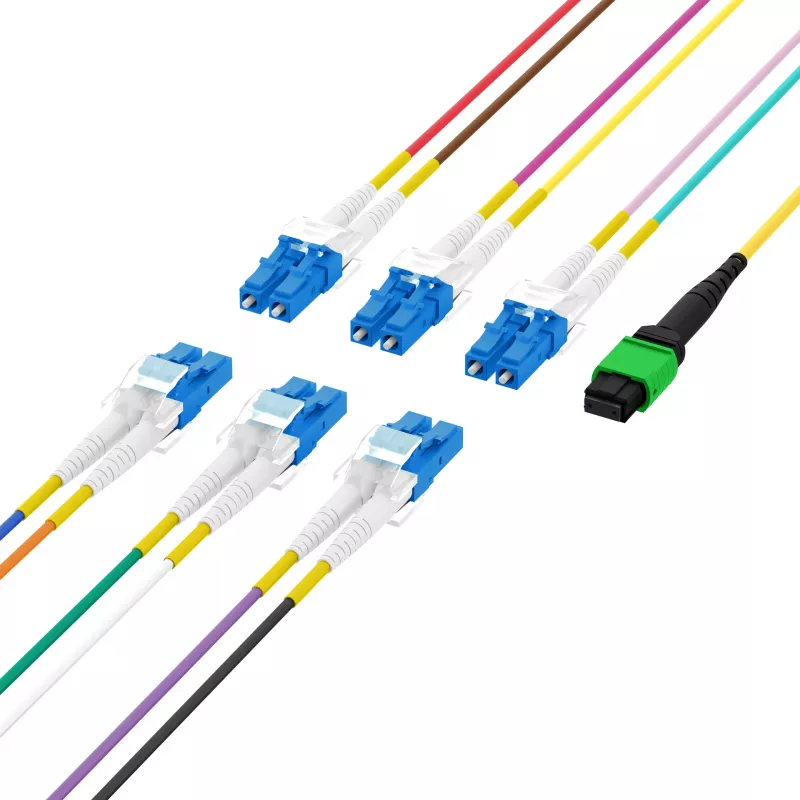

This EFB Elektronik trunk cable stands out with its MPO-PLUS/APC female connector on one end and six LC Duplex connectors on the other, enabling high-density 12-fiber parallel optic links in a single compact assembly. The Type B polarity ensures correct signal routing for 40G/100G/400G Ethernet and Fibre Channel applications.

Highlights

• OS2 single-mode fiber (9/125 µm) for long-reach, low-loss transmission
• MPO-PLUS/APC (female) to 6x LC Duplex, 12 fibers total
• Type B (cross-over) polarity for parallel optics
• LSZH yellow jacket, 2 m length
• Insertion loss: ≤0.35 dB (MPO), ≤0.25 dB (LC)
• Return loss: ≥60 dB (MPO APC), ≥50 dB (LC UPC)

In daily use

The cable is suited for data center interconnects, SAN, LAN, and parallel optics where space and performance matter. The low insertion loss and high return loss maintain signal integrity across 1310 nm and 1550 nm wavelengths. The LSZH jacket reduces toxic smoke in case of fire, making it appropriate for enclosed spaces.

Full specifications

• Fiber type: OS2 single-mode (9/125 µm)
• Fiber count: 12
• Connector A: MPO-PLUS/APC (female)
• Connector B: LC Duplex (6x)
• Polarity: Type B (cross-over)
• Jacket material: LSZH
• Cable colour: Yellow
• Cable length: 2 m
• Insertion loss (MPO): ≤0.35 dB
• Insertion loss (LC): ≤0.25 dB
• Return loss (MPO): ≥60 dB (APC)
• Return loss (LC): ≥50 dB (UPC)
• Operating wavelengths: 1310 nm, 1550 nm
• Supported protocols: 10G/40G/100G/400G Ethernet, Fibre Channel
• Operating temperature: -10°C to +70°C
• Storage temperature: -20°C to +80°C
• Minimum bend radius: 10 mm

Final note

Compliant with IEC 61754-7 and TIA/EIA-604-5, this cable is built for reliable high-speed optical connectivity in demanding environments.
