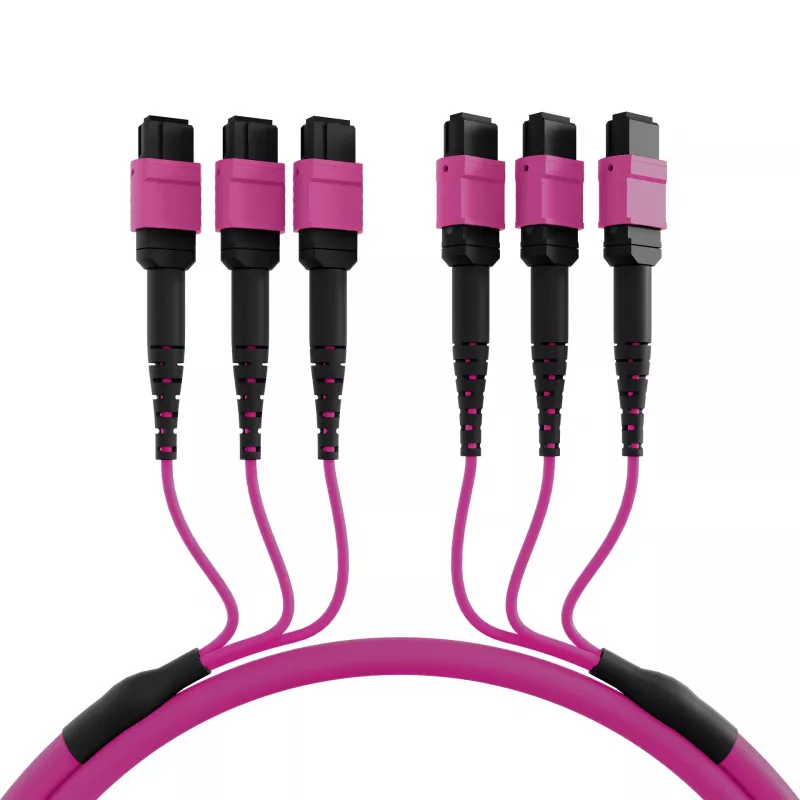

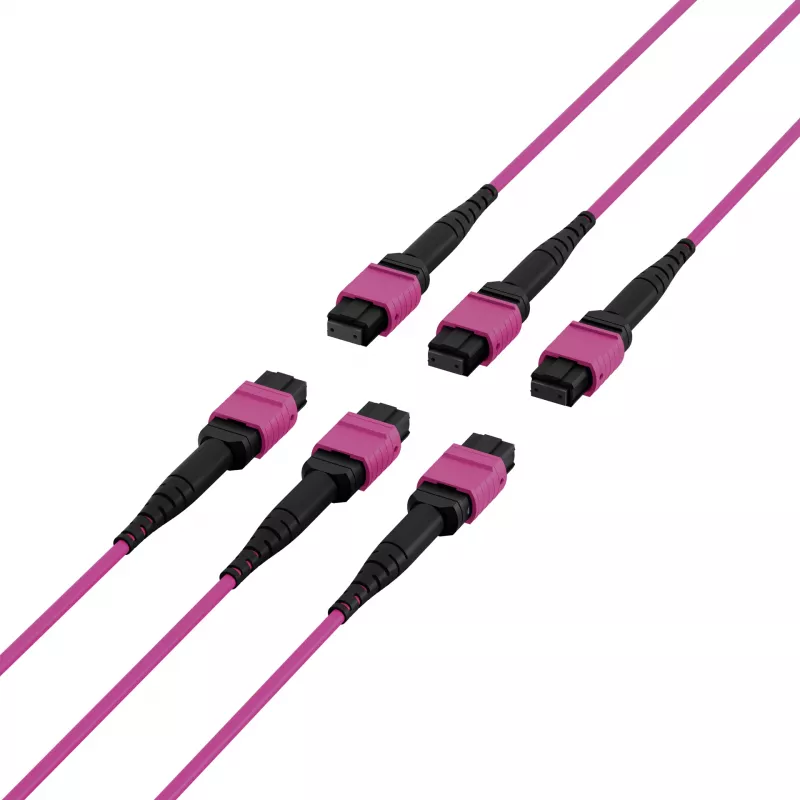

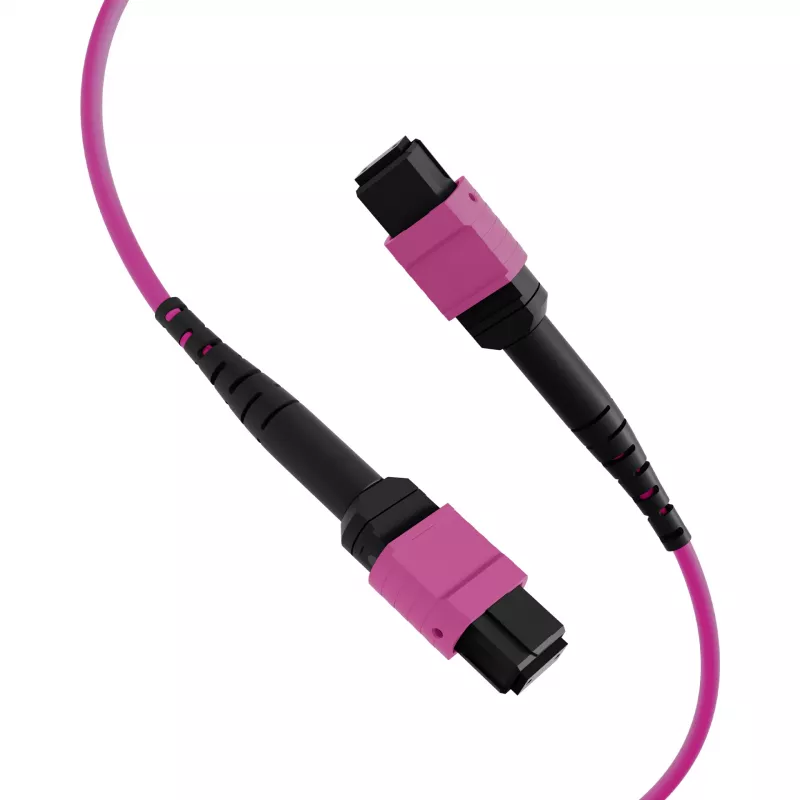

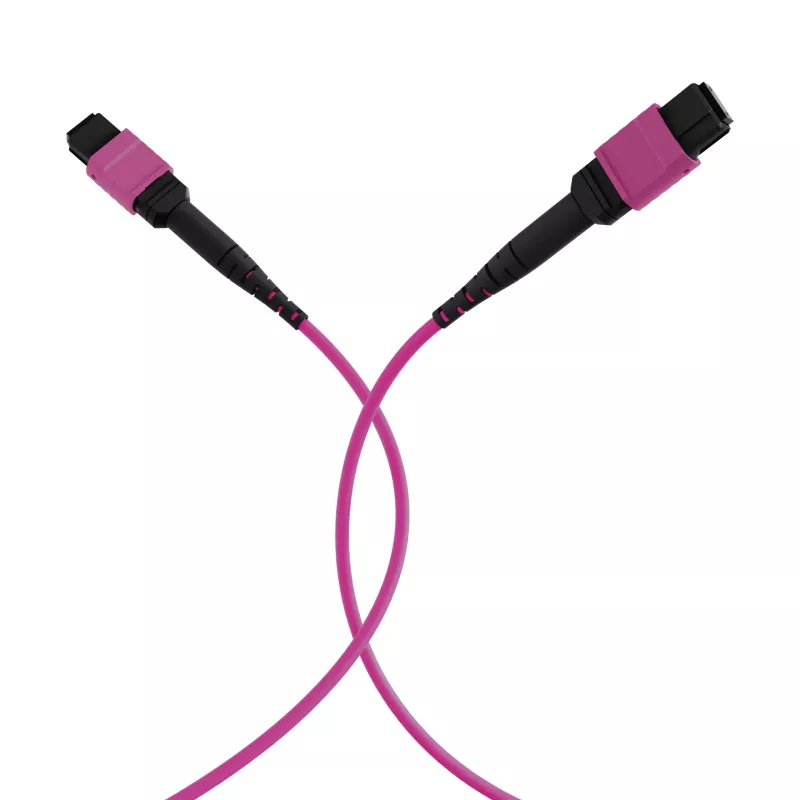

EFB Elektronik MTP-F/MTP-F 48-vláknový Matrix patch kábel OM4, LSZH Erika fialový, kód A, 25m MTPF48MTPFOM4-25-A

High-density 48-fiber MTP to MTP patch cable with OM4 multimode fiber, ideal for data center interconnects and high-speed networks.

Overview

This EFB Elektronik patch cable features MTP female connectors on both ends, supporting 48 fibers for maximum density. The OM4 multimode fiber delivers high bandwidth for 10G, 40G, and 100G applications over longer distances. The LSZH jacket in Erika Violet ensures low smoke and zero halogen emissions for safety in enclosed spaces. Polarity Type A maintains consistent fiber mapping for reliable connections.

What stands out

• 48 fibers in a single cable for high-density patching
• OM4 multimode fiber supports 40/100G Ethernet
• LSZH jacket for enhanced fire safety
• Erika Violet color for easy identification
• 25-meter length for flexible deployment

Technical details

• Connector Type: MTP Female to MTP Female
• Fiber Count: 48
• Fiber Mode: Multimode OM4
• Core/Cladding Diameter: 50/125 µm
• Maximum Bandwidth (850nm): 4700 MHz-km
• Maximum Bandwidth (1300nm): 500 MHz-km
• Typical Insertion Loss: < 0.35 dB per connector pair
• Typical Return Loss: > 20 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: LSZH
• Polarity: Type A

Our verdict

A reliable high-density fiber solution for modern data centers, offering excellent performance and safety.
