EFB Elektronik MTP Female na MTP Female 12-vláknový OM3 multimode optický patch kábel, LSZH, aqua, typ A, 15 m

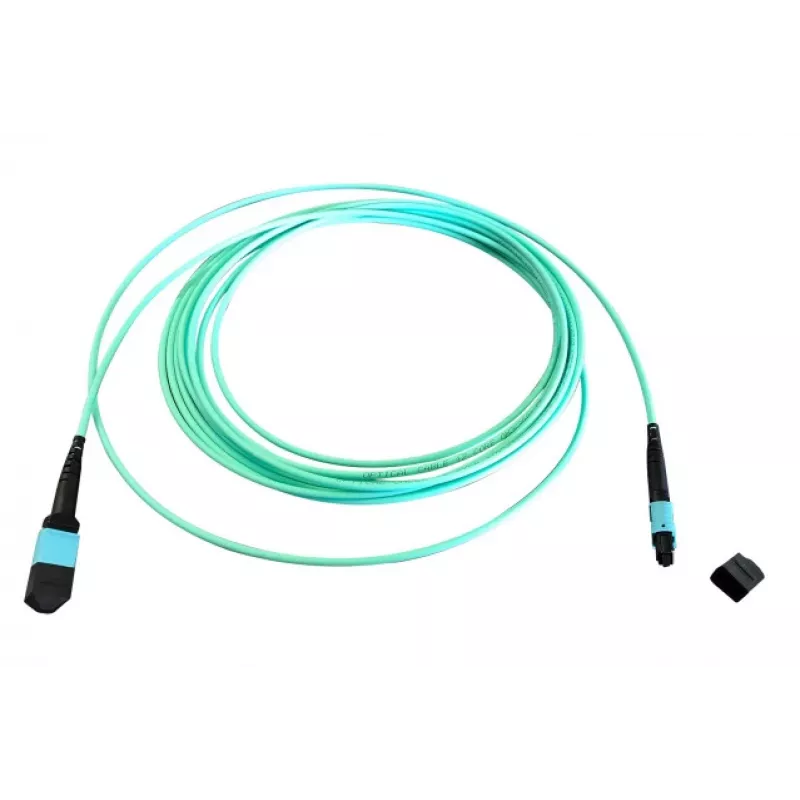

The EFB Elektronik MTPF12MTPFOM3-15-A is a high-performance 12-fiber multimode fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring MTP female connectors on both ends, this OM3 cable delivers reliable 10/40/100 GbE connectivity with low insertion loss and high bandwidth. The aqua LSZH jacket ensures safety and easy identification.

Advantages

Optimized for high-speed data transmission with OM3 multimode fiber supporting 850 nm and 1300 nm wavelengths. The MTP female connectors provide a compact, high-density solution for 12-fiber arrays, reducing cable clutter. LSZH jacket minimizes toxic smoke in case of fire, making it ideal for confined spaces.

Suitable for

• Data center interconnects
• Storage area networks (SAN)
• High-speed networking (10GbE, 40GbE, 100GbE)
• Telecommunications rooms and server racks

Key specifications

• Connector Type: MTP Female to MTP Female
• Fiber Count: 12 Fibers
• Fiber Mode: Multimode OM3
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Polarity: Type A (Straight-through)
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (per connector pair): ≤ 0.35 dB
• Return Loss: ≥ 20 dB
• Bandwidth (850 nm): 2000 MHz·km (OFL) / 1500 MHz·km (EMB)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, IEC 61754-7, TIA/EIA-604-5

Recommendations

For optimal performance, pair with compatible MTP adapters and ensure proper polarity alignment. Suitable for use with 40GBASE-SR4 and 100GBASE-SR10 transceivers.
