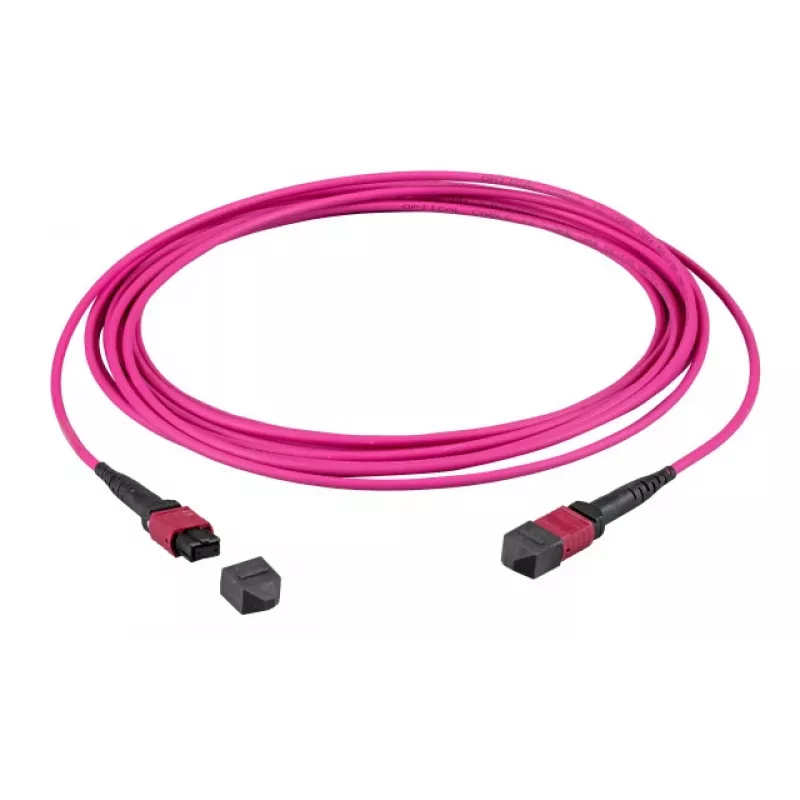

EFB Elektronik MTP samica na MTP samica 12-vláknový OM4 patch kábel, LSZH, fialová Erikaviolett, typ A, 5m

The EFB Elektronik MTPF12MTPFOM4-5-A is a high-performance 12-fiber MTP female to MTP female patch cable designed for demanding data center and high-density cabling environments. Engineered with OM4 multimode fiber, this cable supports high-speed data transmission over short to medium distances, making it ideal for 40G and 100G Ethernet applications. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the erika violet color aids in easy identification. Polarity Type A (straight-through) ensures proper fiber alignment for reliable connectivity.

Advantages

This patch cable offers exceptional insertion loss (≤0.35 dB per connector) and return loss (≥20 dB), ensuring minimal signal degradation. The MTP connectors provide a compact, high-density solution that simplifies cable management and reduces installation time. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it suitable for use in air-handling spaces. The 12-fiber configuration maximizes space utilization in high-density patching areas.

Suitable for

• Data center interconnects
• High-density cabling infrastructure
• 40G/100G Ethernet networks
• Storage area networks (SAN)
• Telecommunications rooms

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector A: MTP Female
• Connector B: MTP Female
• Fiber Count: 12 Fibers
• Fiber Mode: Multimode
• Fiber Class: OM4
• Cable Length: 5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Polarity Type: Type A (Straight-through)
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Connector Ferrule: MTP (Multi-fiber Push-on)
• Connector Polishing: PC (Physical Contact)
• Insertion Loss (Typical): ≤ 0.35 dB per connector
• Return Loss (Typical): ≥ 20 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH

Recommendations

For optimal performance, ensure that both MTP connectors are clean and properly mated. Use appropriate polarity management schemes (Type A) for straight-through connections. This cable is compatible with standard MTP adapters and cassettes. Store in a clean, dry environment within the specified temperature range.
