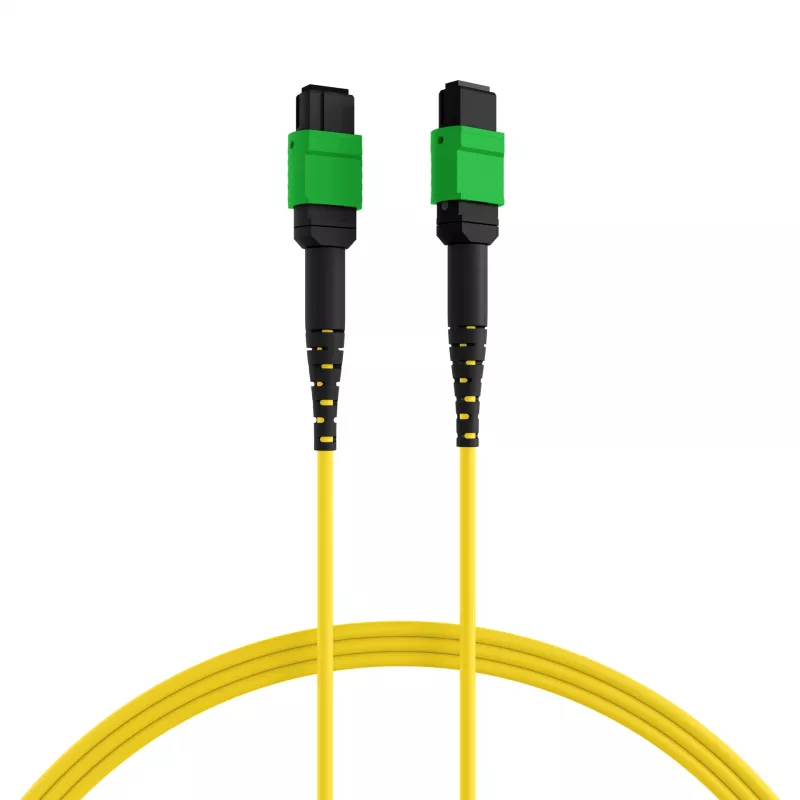

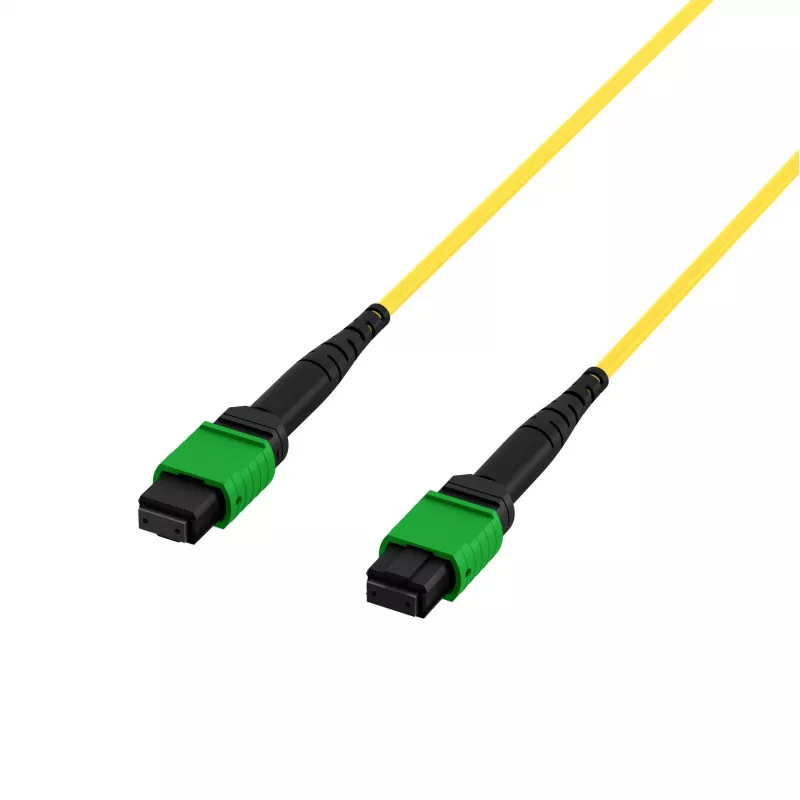

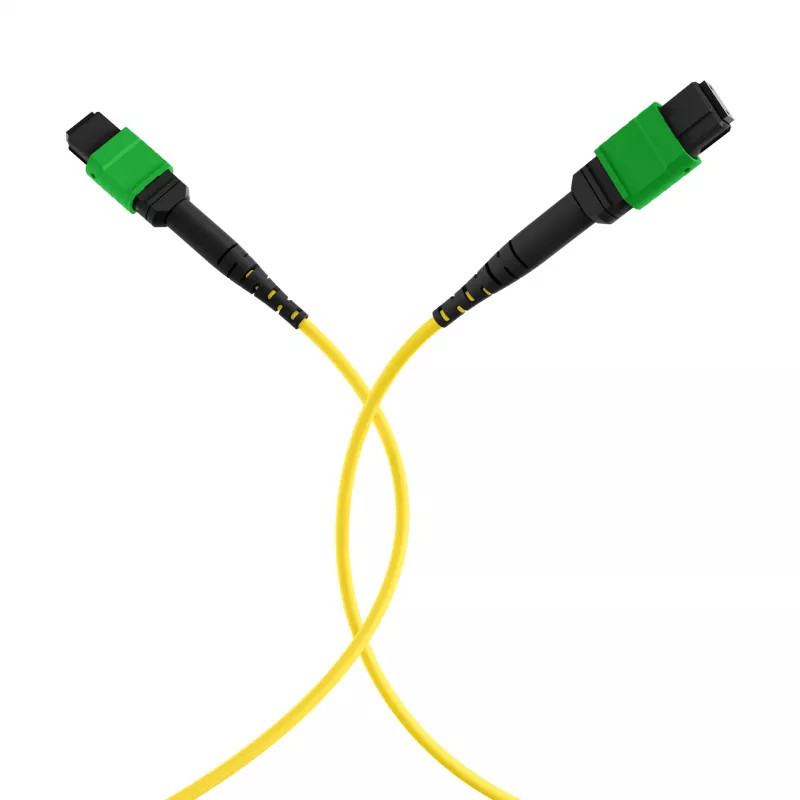

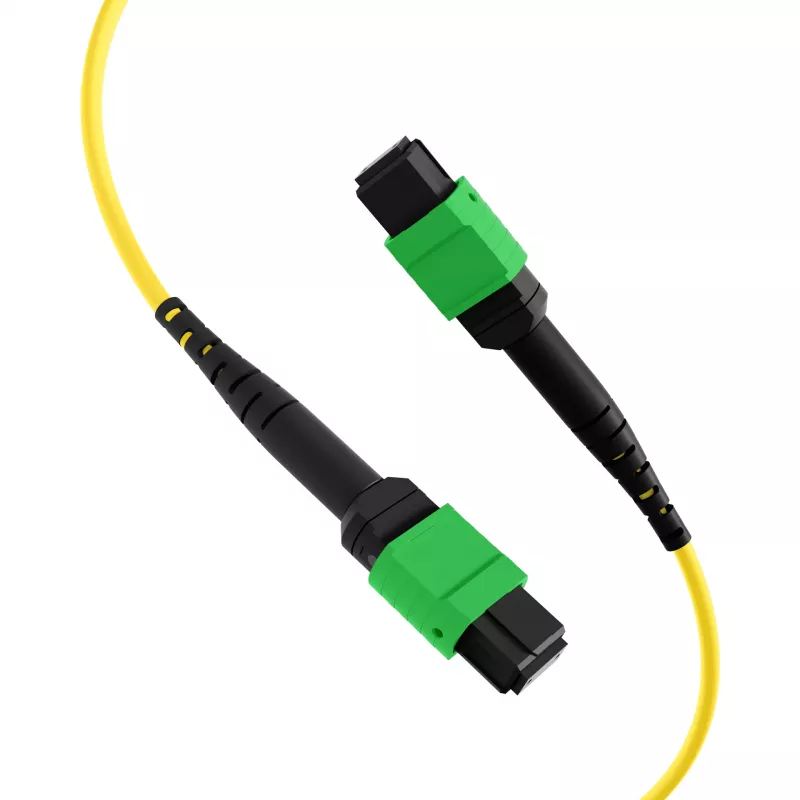

EFB Elektronik MTPF12MTPFOS2-7.5-A optický patch kábel 7,5 m OS2 MTP Female na MTP Female

The EFB Elektronik MTPF12MTPFOS2-7.5-A is a high-performance fiber optic patch cable designed for demanding data center, SAN, LAN, and high-density cabling environments. This 7.5-meter single-mode OS2 cable features 12 fibers terminated with MTP® (MPO) female connectors on both ends, ensuring reliable and low-loss connections for 40G and 100G applications.

Advantages

Pre-terminated MTP® connectors reduce installation time and minimize signal loss. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces. Type A polarity ensures straightforward deployment in structured cabling systems.

Suitable for

• Data center backbone cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• High-density fiber optic patching

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (OS2)
• Number of Fibers: 12
• Connector A: MTP® (MPO) Female
• Connector B: MTP® (MPO) Female
• Cable Length: 7.5 m
• Polarity: Type A
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss (Max): 0.35 dB
• Return Loss (Min): 50 dB
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Operating Wavelengths: 1310 nm, 1550 nm
• Cable Diameter: 3.0 mm
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5 (FOCIS 5)

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius and avoid signal degradation.
