EFB Elektronik MTPF12MTPFOS2-7,5 m - OS2 - MTP - MTP

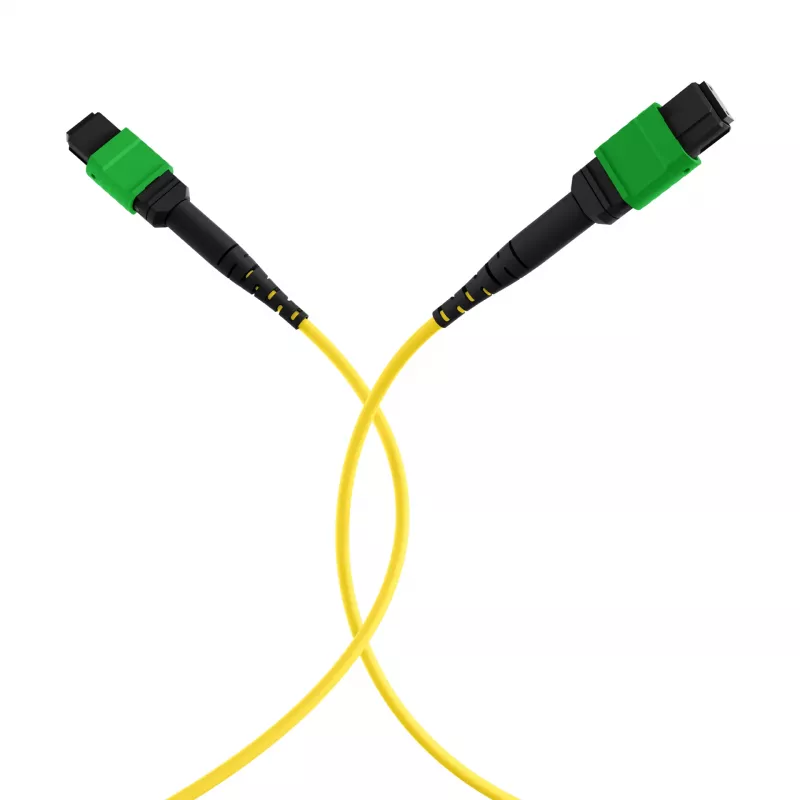

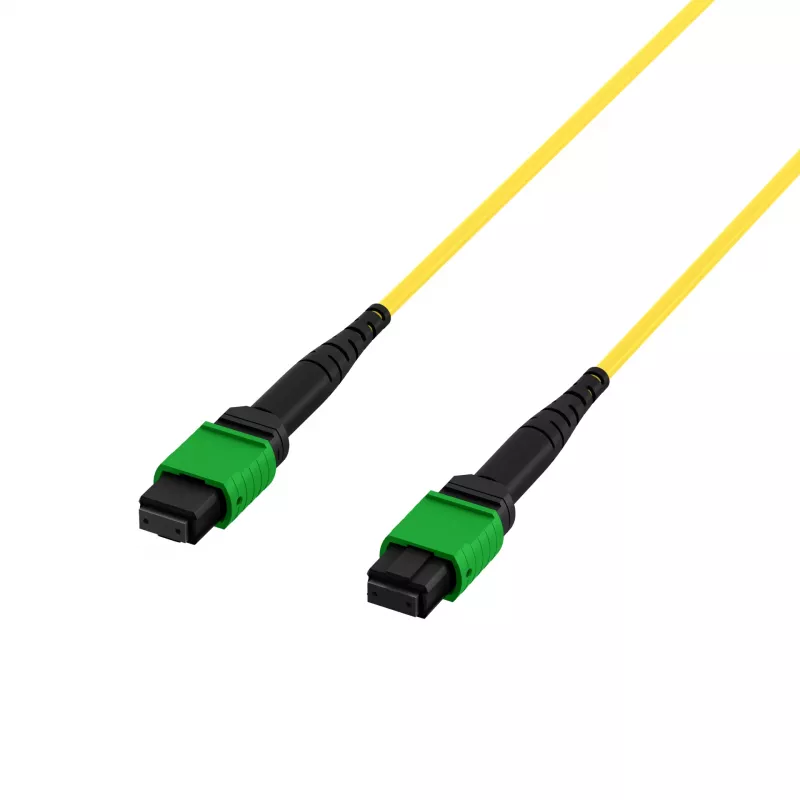

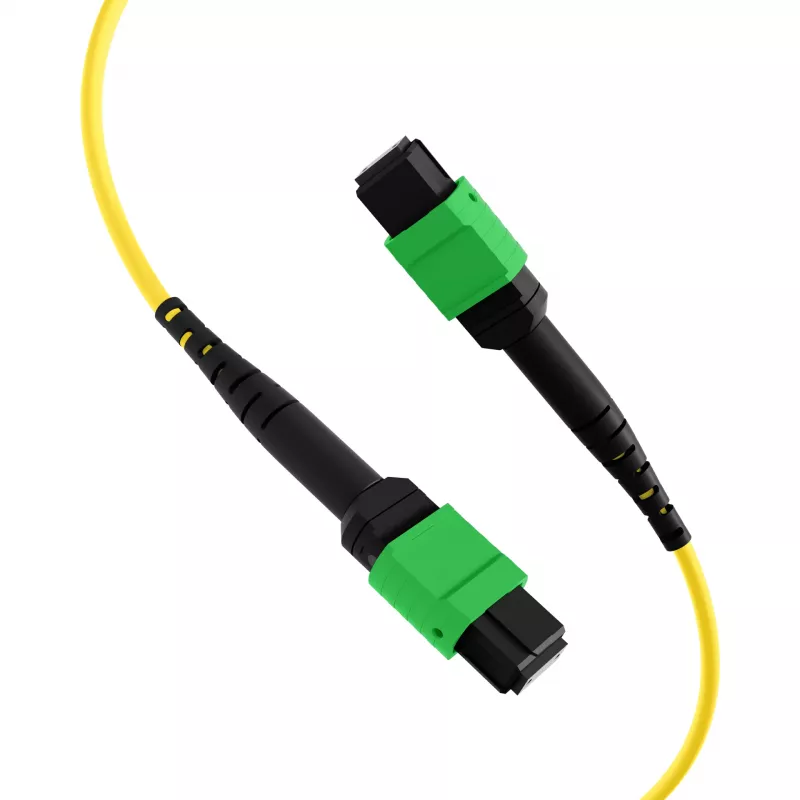

The EFB Elektronik MTPF12MTPFOS2-7.5 is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring 12 fibers, single-mode OS2 grade, and MTP/MPO female connectors on both ends, this cable ensures reliable, high-speed connectivity for 40G, 100G, and 400G Ethernet applications.

Advantages

This cable offers low insertion loss (max 0.35 dB per connector) and high return loss (min 50 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow color aids in easy identification. Type B polarity ensures correct fiber alignment for duplex transmission.

Suitable for

• Data center interconnects
• 40G/100G/400G Ethernet networks
• Fibre Channel storage area networks
• High-density patching environments

Key specifications

• Cable length: 7.5 m
• Fiber mode: Single-mode OS2 (G.657.A1/A2)
• Connector type: MTP/MPO Female (both ends)
• Polarity: Type B
• Jacket material: LSZH
• Jacket color: Yellow
• Insertion loss: ≤0.35 dB per connector
• Return loss: ≥50 dB
• Ferrule material: Zirconia Ceramic
• Polishing: APC
• Operating temperature: -10°C to 70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed, high-density fiber optic networks requiring reliable, low-loss connections.
