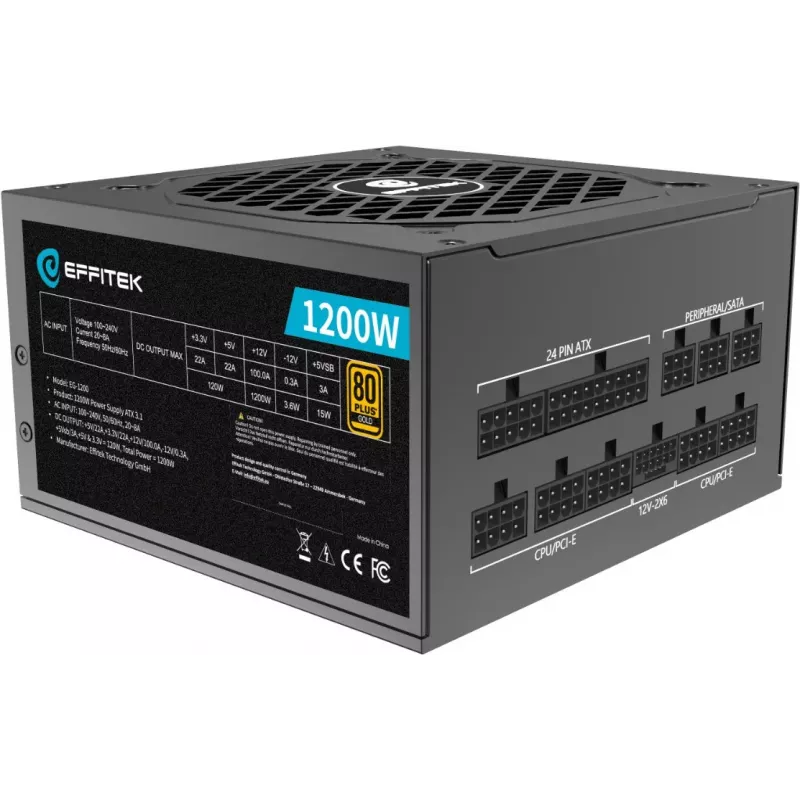

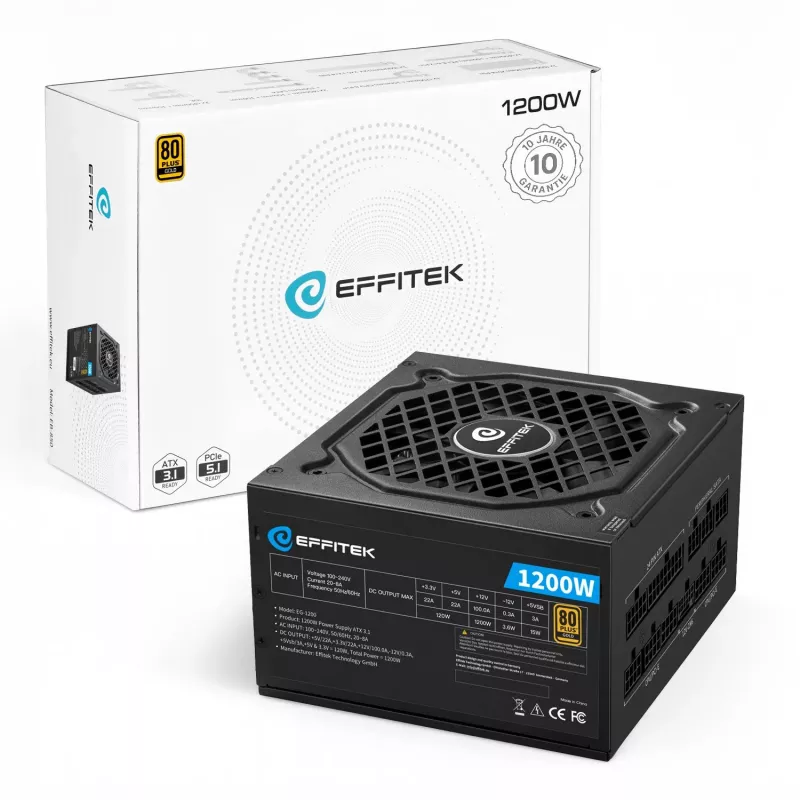

EFFITEK 1200W Gold ATX 3.1 PCIe 5.1 plne modulárny napájací zdroj

The EFFITEK 1200W Gold ATX 3.1 power supply delivers reliable and efficient power for high-performance PCs and servers. With 80 PLUS Gold certification, fully modular cabling, and support for the latest ATX 3.1 and PCIe 5.1 standards, it ensures stable operation and easy cable management.

Advantages

Fully modular design reduces clutter and improves airflow. The 120mm fan provides quiet and efficient cooling. Active PFC and multiple protection features (OVP, OPP, SCP, OCP, OTP, UVP) safeguard your components. High efficiency up to 90% lowers energy costs.

Suitable for

• High-end gaming PCs
• Workstations and servers
• Systems requiring ATX 3.1 and PCIe 5.1 compatibility

Key specifications

• Power Output: 1200 W
• 80 PLUS Certification: Gold
• Form Factor: ATX
• ATX Standard: ATX 3.1
• PCIe Standard Support: PCIe 5.1 (12V-2x6 connector)
• Modularity: Fully Modular

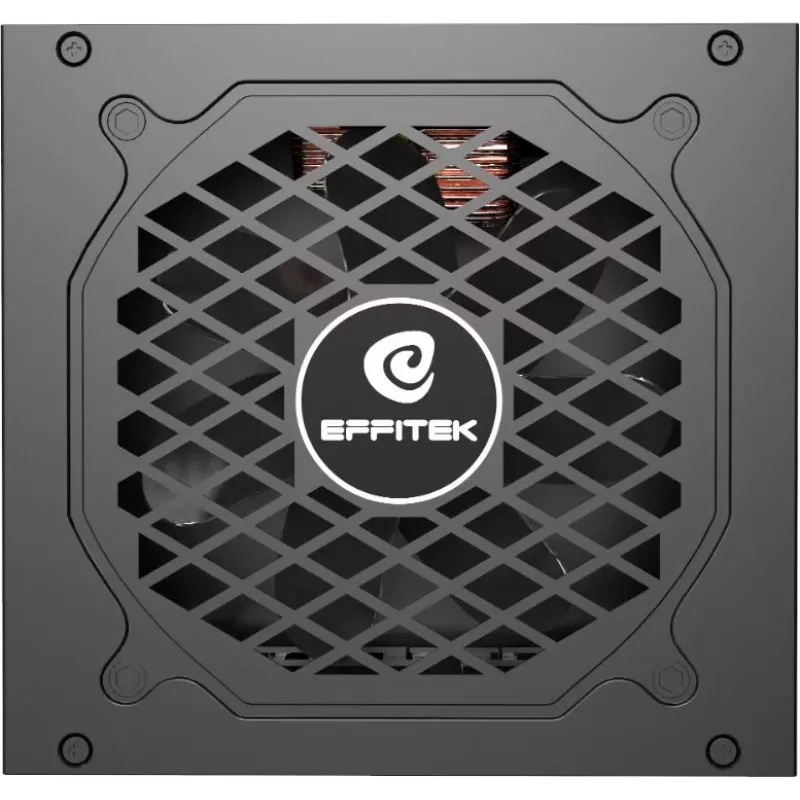

• Fan Size: 120 mm
• PFC Type: Active PFC
• Input Voltage: 100-240 V AC
• Input Frequency: 50/60 Hz
• Main Power Connector: 1x 20+4 Pin ATX
• CPU Power Connectors: 2x 4+4 Pin EPS
• PCIe 5.1 Power Connector: 1x 12V-2x6 (12+4 Pin)
• PCIe (6+2 Pin) Connectors: 4x 6+2 Pin
• SATA Power Connectors: 8x
• Peripheral (Molex) Connectors: 4x 4-Pin
• Protection Features: OVP, OPP, SCP, OCP, OTP, UVP
• Efficiency: Up to 90% (at 50% load, 230V)
• Cable Type: Flat, black modular cables
• MTBF: 100,000 hours

Recommendations

Ideal for demanding builds requiring high wattage and modern connector standards. Ensure your case supports ATX PSUs.
