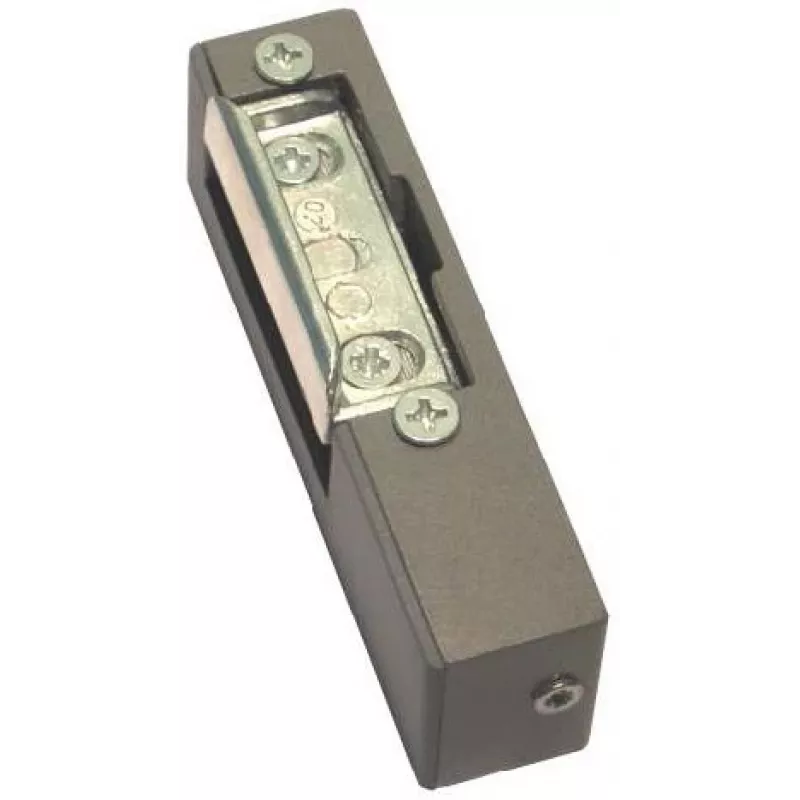

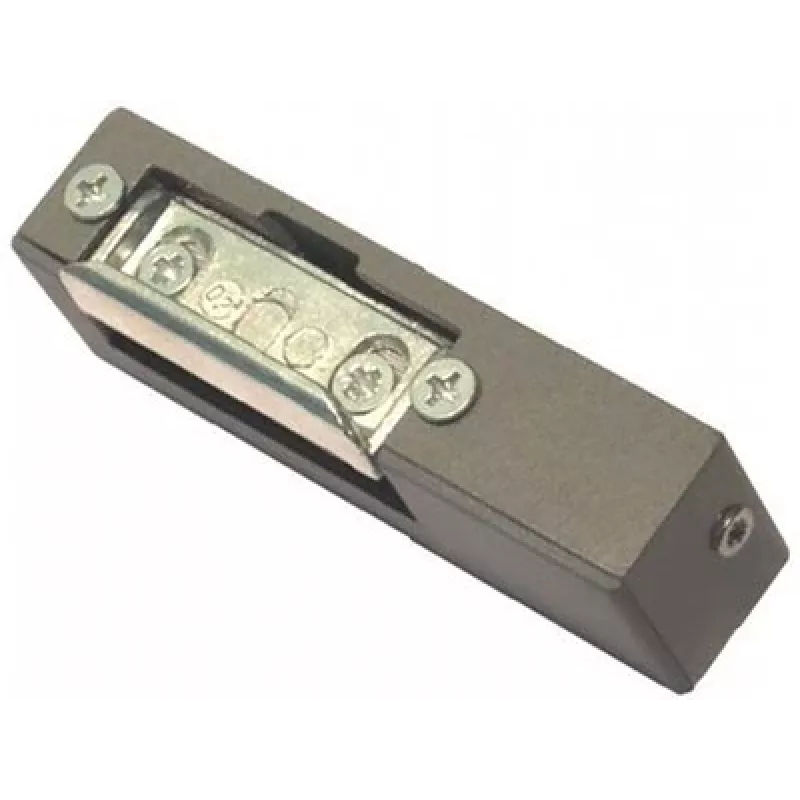

ELEKTRA-PLUS R3 ľavý elektrický otvárač dverí bez blokovania

The ELEKTRA-PLUS R3 Left Electric Strike without Blocking is a left-handed electric strike designed for door access control. It features an adjustable latch with 3 mm travel for clearance adjustment and supports a door load of up to 3000 N.

Key features

• Left-handed version
• Without blocking function
• Adjustable latch with 3 mm adjustment range for clearance
• Maximum door load: 3000 N (300 kG)
• Permissible pressure on door during latch release: 30 N (3 kG)

Specifications

• Brand: Elektra-Plus
• MPN: R3-12.10L
• Model: R3-12.10L

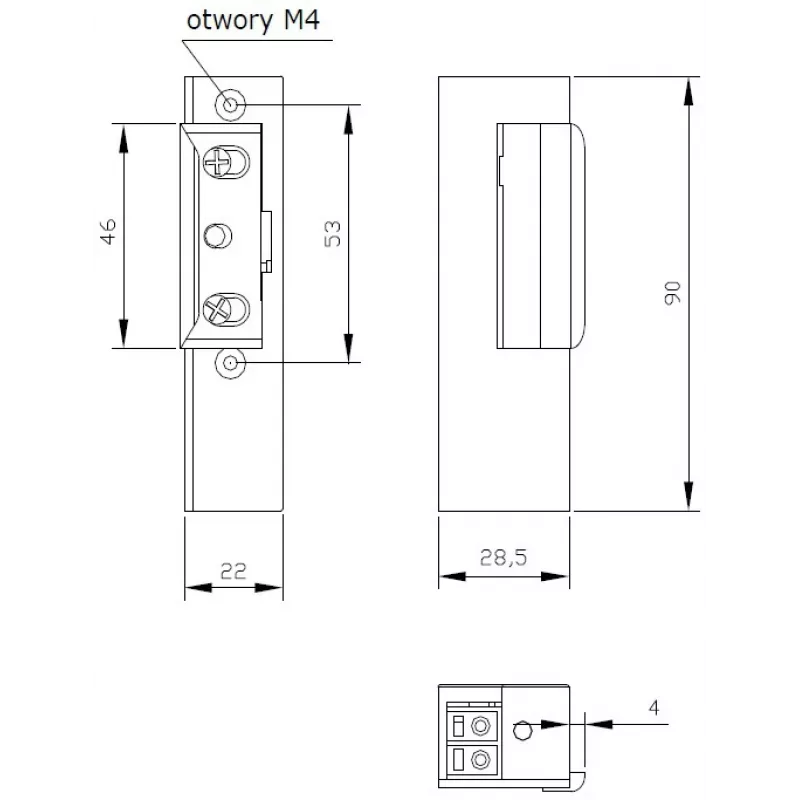

• External housing dimensions: 22 x 28 x 90 mm
• Weight: 0.20 kg
• Maximum weight of strike with faceplate: 0.40 kg
• Rated voltage U: 10 ± 2V * / 24 ± 2V **
• Current I: AC 270-420 mA, DC 420-650 mA
• Permissible continuous operation time: 30 min
• * allows use of a bell transformer
• ** in special version
