Equip Eco Mount 19 palcový rozvádzač, 07HE, 540X400MM, RAL9005 čierny

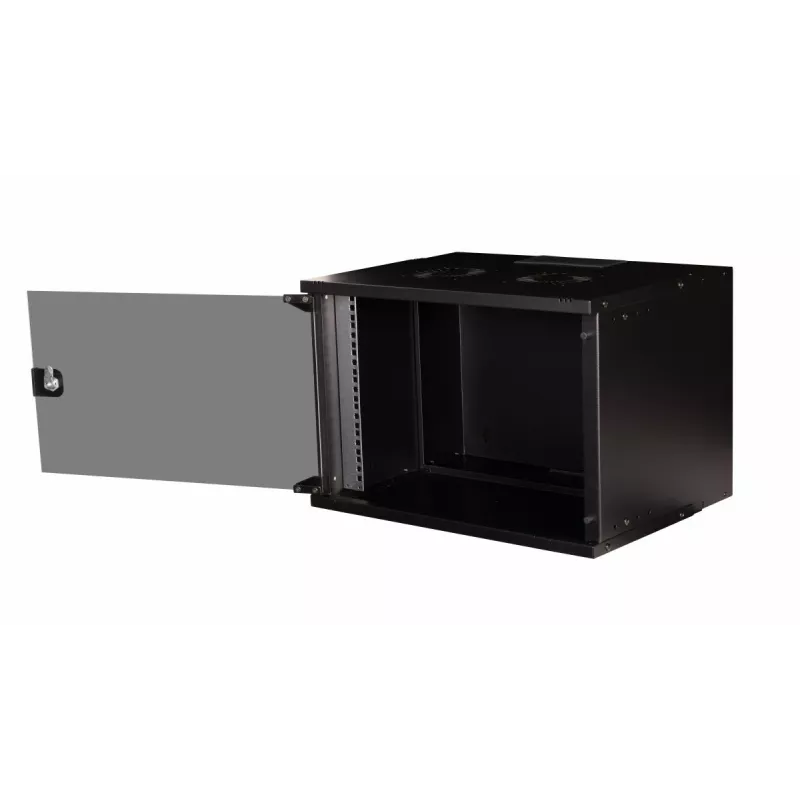

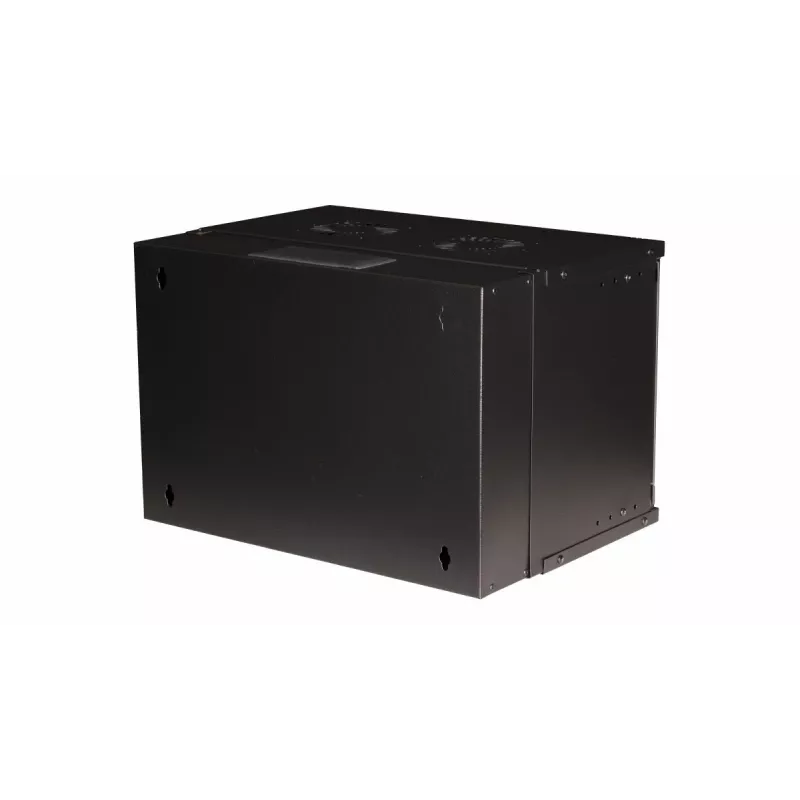

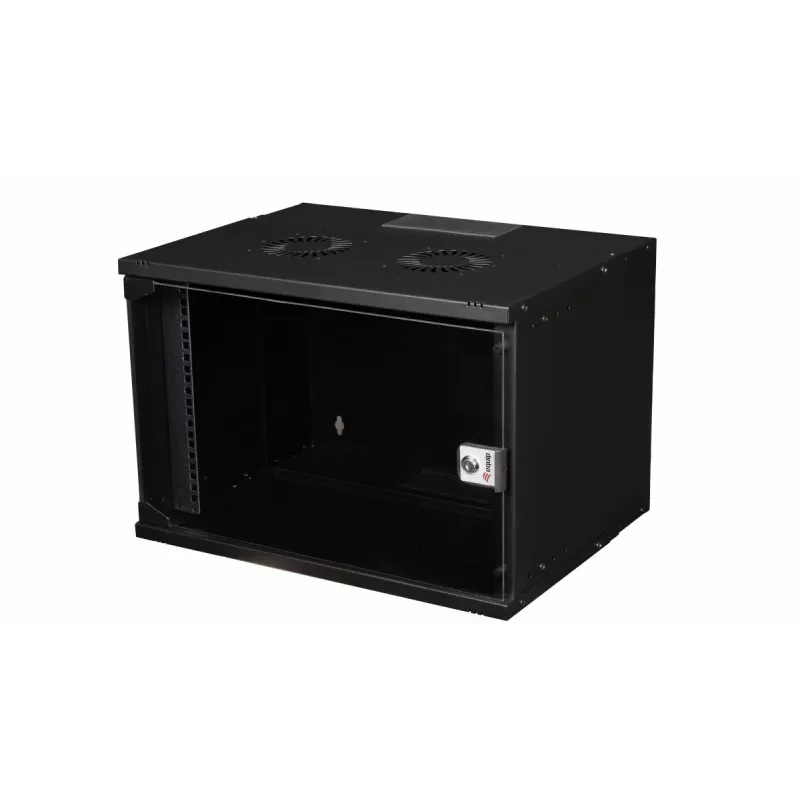

The Equip Eco Mount Wall Mount Cabinet EWM-07-5440-B is a compact 19" wall-mounted rack with 7U capacity, designed to organize and protect network equipment in limited spaces. Constructed from 1.5 mm steel, the black (RAL 9005) cabinet includes a key lock for security, removable top and bottom cable covers for neat cable routing, and ventilation slots at the top. The front door can be reoriented from right to left to fit different installation layouts. The product is delivered unassembled; an instructional video is available to assist with assembly.

Advantages

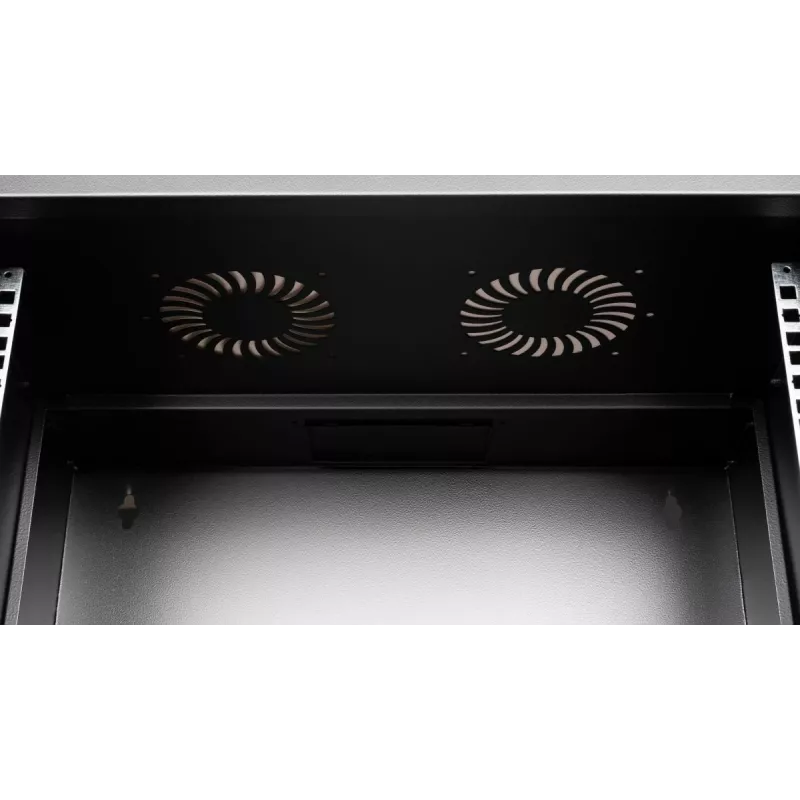

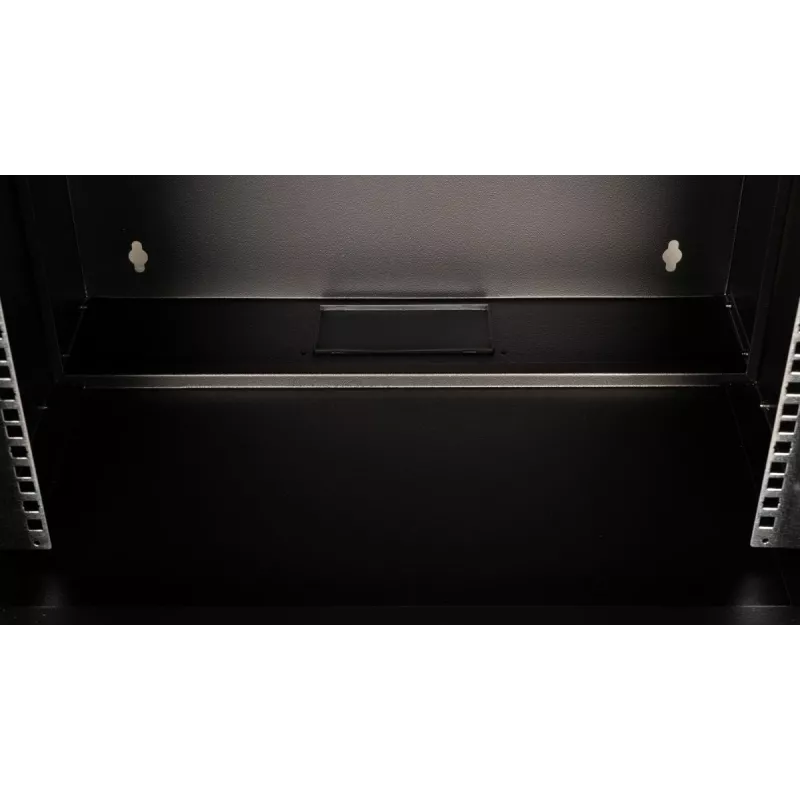

The cabinet offers a durable steel construction (1.5 mm) and a compact footprint (330 mm height, 174 mm width, 400 mm depth) that suits constrained mounting locations. Integrated ventilation slots and removable cable entry covers at both top and bottom support reliable equipment operation and organized cabling. A keyed lock improves physical security while the reversible door increases installation flexibility. The unit’s 7U rack capacity and 380 mm maximum mounting depth accommodate a range of network devices and accessories.

Suitable for

• Small server rooms and network closets
• Telecommunications and patch panel mounting
• Security equipment and small switches
• Home lab or office edge network installations

Key specifications

• Brand: EQUIP
• Model: EWM-07-5440-B
• Rack capacity: 7U
• Size: 19" (12.2")
• Mounting depth (max): 380 mm
• Height: 330 mm
• Width: 174 mm
• Depth: 400 mm
• Weight: 9.06 kg
• Colour: Black (RAL 9005)
• Material: 1.5 mm steel

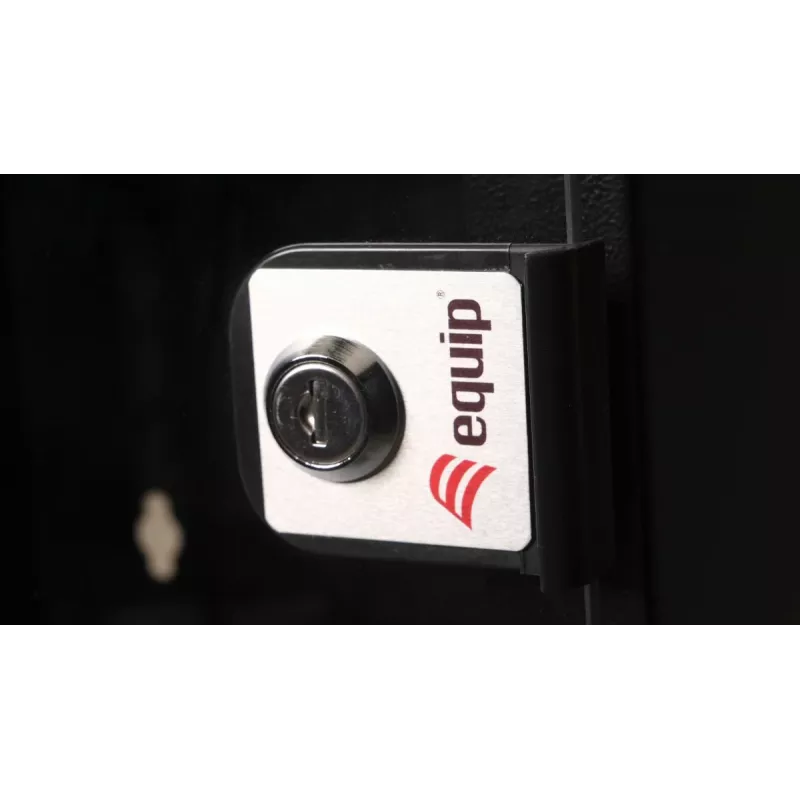

• Lock: Key lock
• Mounting type: Wall-mounted

How to use

Mount the cabinet on a suitably strong wall using appropriate fixings for the wall material and the cabinet weight. Install rack-mount equipment into the 7U frame following manufacturer guidelines and ensuring the total depth does not exceed 380 mm. Route cables through the removable plastic covers at the top or bottom and secure them with cable management accessories as needed. Ensure ventilation slots remain unobstructed for proper airflow. Lock the front door with the supplied key after installation.

Recommendations

For safe and reliable operation, verify wall anchoring capacity before installation, distribute device weight evenly, allow clearance for airflow at the top, and use appropriate cable management accessories. Follow the assembly video for step-by-step guidance.
