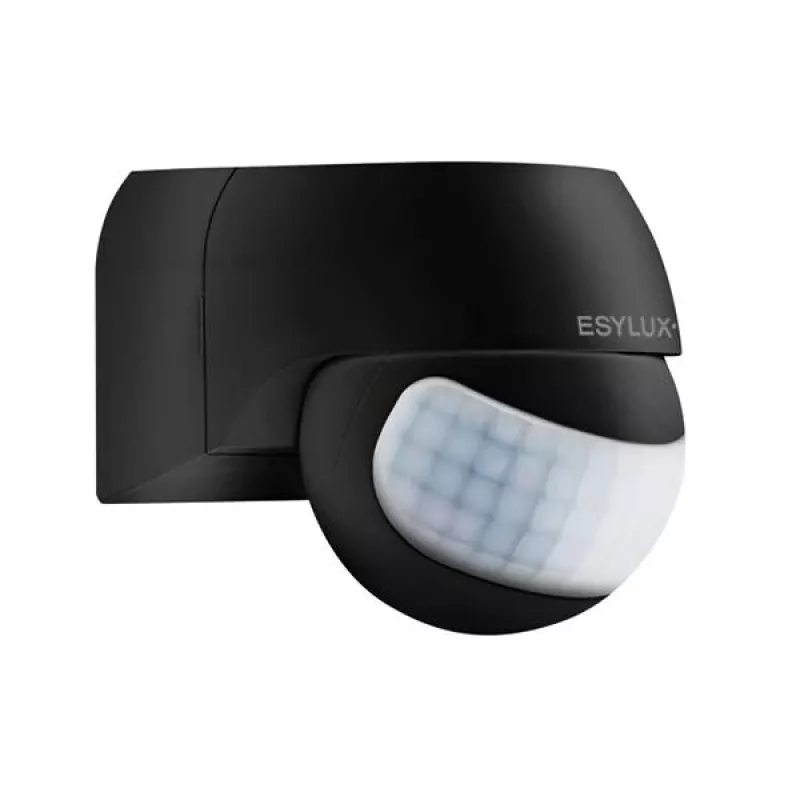

ESYLUX MD 180 Basic káblový PIR pohybový senzor 180° 12 m čierny IP44 2,5 m

The ESYLUX MD 180 Basic is a wired passive infrared (PIR) motion detector designed for wall-mounted surface installation. With a 180° detection angle and a tangential range of 12 m at 2.5 m mounting height, it is ideal for indoor and protected outdoor areas such as corridors, stairwells, and building entrances. The detector features adjustable time settings (10 sec to 30 min) and light value settings (5 to 2000 lux), allowing flexible automation of lighting control. Its robust UV-stabilised polycarbonate housing with IP44 protection ensures reliable operation in various environments.

Advantages

Reliable PIR detection technology with a wide 180° angle and 12 m range. Easy wall-mount installation with surface mounting. Adjustable time delay and twilight threshold for customized lighting control. Low standby power consumption (<0.5 W) for energy efficiency. Durable UV-stabilised polycarbonate material suitable for outdoor use.

Suitable for

• Indoor corridors and stairwells
• Building entrances and exits
• Protected outdoor areas (e.g., under eaves)
• Automatic lighting control in commercial and residential buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Mounting type: Wall-mounted, surface-mounted
• Detection angle: 180°
• Detection range (tangential): 12 m at 2.5 m mounting height
• Detection range (radial): 4 m at 2.5 m mounting height
• Optimal mounting height: 2.5 m
• Colour: Black
• Protection class: IP44
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power (resistive): 2300 W
• Max. switching power (inductive): 1150 VA
• Time setting range: 10 sec - 30 min
• Light value setting range: 5 - 2000 Lux
• Standby power consumption: <0.5 W
• Output type: Relay (1 NO contact)
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Application area: Indoor and protected outdoor areas

Recommendations

For optimal performance, mount the detector at the recommended height of 2.5 m and ensure the detection zone is free from obstructions. Suitable for use with compatible lighting loads up to 2300 W resistive. Always follow local electrical regulations during installation.
