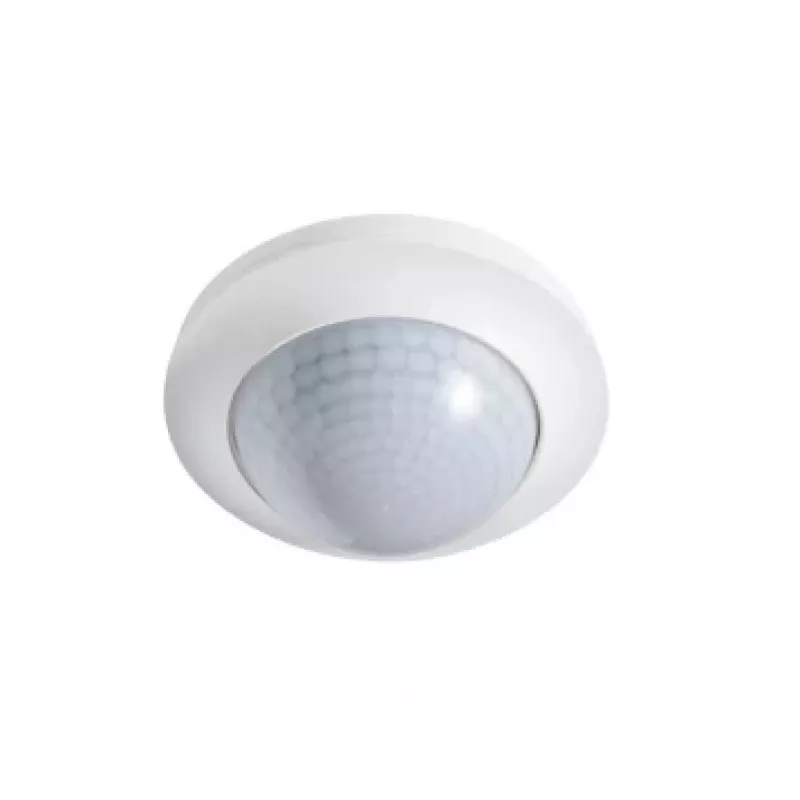

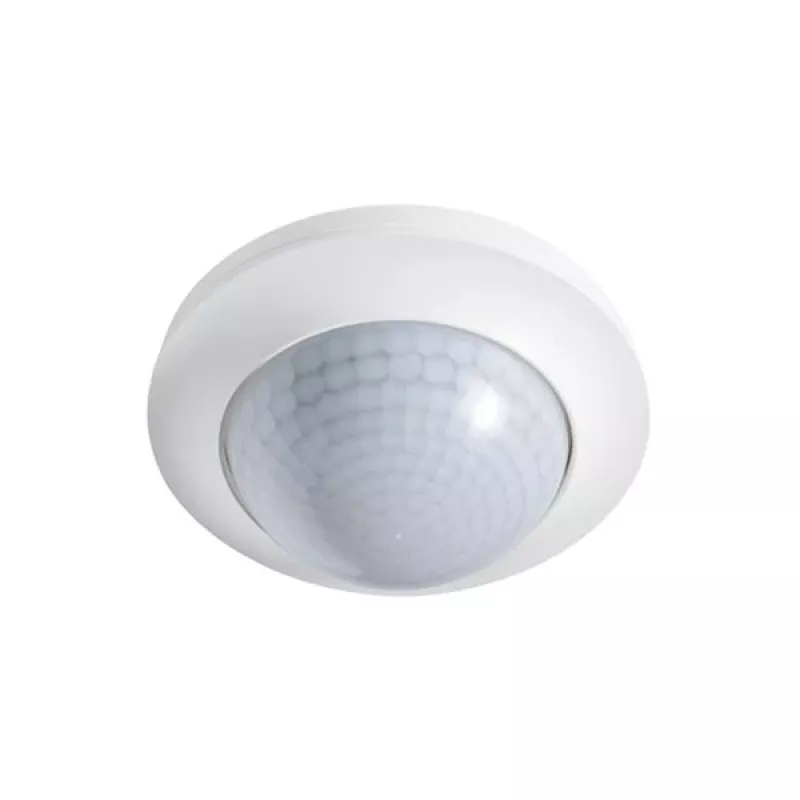

ESYLUX PD-C 360i/24 DUO DALI pasívny infračervený senzor (PIR) - káblový - 24 m - strop - interiér - biely

The ESYLUX PD-C 360i/24 DUO DALI is a high-performance passive infrared (PIR) sensor designed for ceiling mounting in indoor environments. It offers a 360° detection angle and a detection range of up to 24 meters in diameter (at 3 m mounting height), making it ideal for large rooms such as offices, classrooms, and open-plan areas. The sensor features dual DALI broadcast outputs for constant light control, presence detection, and HVAC control, ensuring energy-efficient lighting management.

Advantages

Energy-saving presence and brightness detection with adjustable time delay (60 sec to 120 min) and brightness switching value (5-2000 lux). Mixed light measurement ensures reliable performance under various lighting conditions. The UV-stabilised polycarbonate housing guarantees durability and long service life.

Suitable for

• Office buildings
• Educational facilities
• Conference rooms
• Open-plan areas
• Corridors and stairwells

Key specifications

• Sensor technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: 24 m diameter (at 3 m mounting height)
• Mounting type: Ceiling (flush-mounted)
• Optimal mounting height: 3 m
• Control output: 2 x DALI Broadcast
• Power supply: 230 V AC, 50/60 Hz
• Power consumption: approx. 0.5 W
• Protection class: IP20
• Ambient temperature range: -25 °C to +50 °C
• Colour: White
• Light measurement type: Mixed light
• Brightness switching value: 5 - 2000 lux
• Time delay: 60 sec - 120 min (adjustable)
• Functions: Presence detection, constant light control, HVAC control
• Max. DALI ECGs per channel: 25
• Connectivity: Wired
• Housing material: UV-stabilised polycarbonate

Recommendations

For optimal performance, mount the sensor at a height of 3 meters. Ensure the detection area is free from obstructions. Compatible with DALI-2 compliant LED drivers and ballasts.
