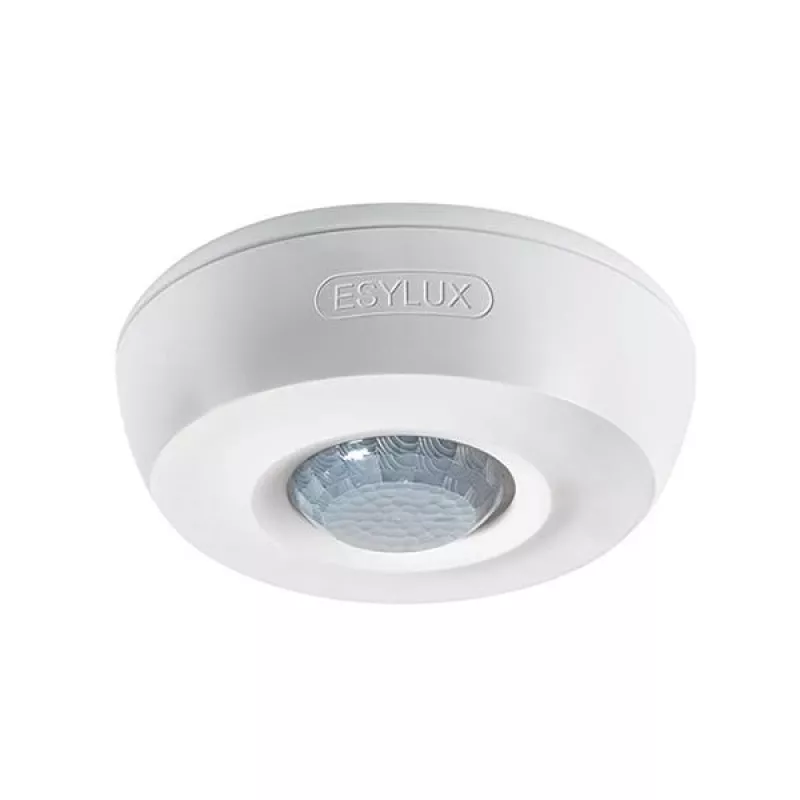

ESYLUX MD 360i/8 Basic biela stropný pohybový snímač s diaľkovým ovládaním

The ESYLUX MD 360i/8 Basic is a high-quality passive infrared (PIR) ceiling-mounted motion detector designed for reliable presence and movement detection in indoor environments. With a 360° detection angle and an 8-meter diameter range at 2.5m mounting height, it is ideal for automatic lighting control in offices, corridors, stairwells, and other commercial or residential spaces. The device features adjustable light sensitivity (5-2000 lux) and time delay (10 s to 30 min), and can be controlled via an optional IR remote for added convenience.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Simple installation and configuration with adjustable settings. Remote control capability allows easy parameter changes without direct access to the unit. Robust UV-stabilised polycarbonate housing ensures long-lasting performance.

Suitable for

• Office buildings and meeting rooms
• Corridors, stairwells, and entrance areas
• Storage rooms and utility spaces
• Residential living areas and hallways

Key specifications

• Detection angle: 360°
• Mounting type: Ceiling
• Colour: White
• Operating voltage: 230 V AC, 50 Hz
• Max switching capacity (resistive): 2300 W
• Max switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Light sensitivity range: 5 - 2000 Lux
• Time delay setting: 10 s - 30 min
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Power consumption: approx. 0.5 W
• Remote control capability: Yes (via optional IR remote)
• Optimal mounting height: 2.5 m
• Detection range (at 2.5m height): approx. 8 m diameter
• Sensor technology: PIR (Passive Infrared)
• Material: UV-stabilised polycarbonate
• Number of channels: 1 (light switching)

Recommendations

For best performance, mount at the recommended height of 2.5 m and avoid obstructions in the detection area. Use the optional IR remote (not included) for convenient adjustment of settings. Suitable for indoor use only.
