ESYLUX nadomietkové puzdro IP20 pre PD-C360 MD-C360 biele

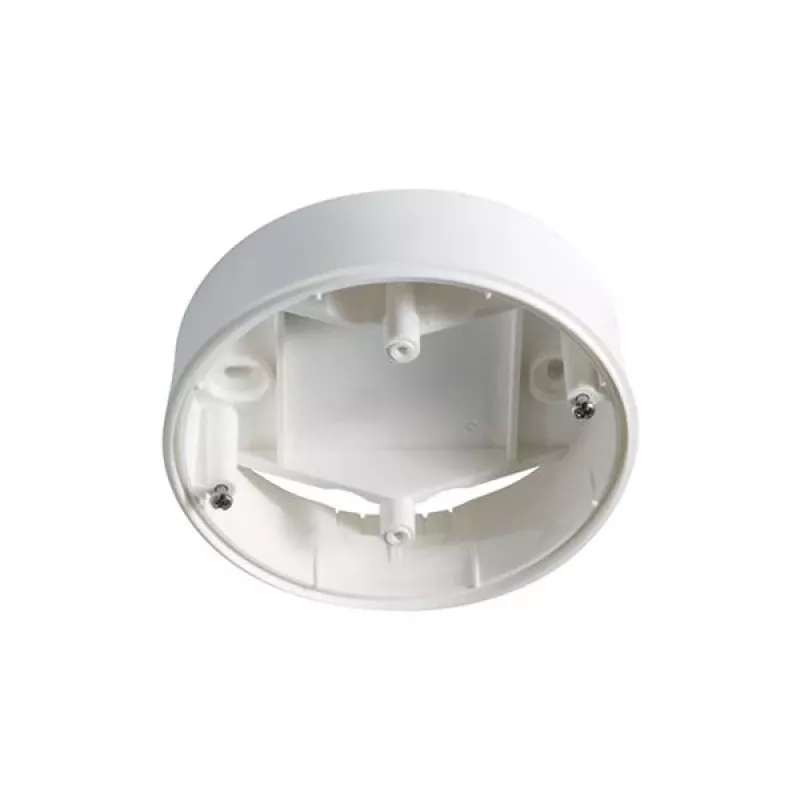

The ESYLUX Surface-Mounted Box IP20 is a high-quality accessory designed for ceiling-mounted presence and motion detectors of the PD-C360 and MD-C360 series. This white polycarbonate box provides a secure and discreet housing for your detector, ensuring reliable operation in indoor environments. With its IP20 protection rating, it is suitable for dry indoor areas. The box features rear and side cable entry options for flexible installation. Its round shape and compact dimensions (diameter 110 mm, depth 25 mm) allow for a low-profile appearance. The box is halogen-free and RoHS compliant, meeting modern safety and environmental standards. Operating temperature range from -25°C to +50°C ensures performance in various conditions. Ideal for use with ESYLUX C-series detectors, this surface-mounted box simplifies installation and provides a clean finish.

Advantages

Easy surface mounting with rear and side cable entry options. Durable polycarbonate material ensures long life. Halogen-free and RoHS compliant for safety. Compatible with multiple ESYLUX detector series.

Suitable for

• ESYLUX PD-C360i/24 and MD-C360i/24 detectors
• Other ESYLUX C-series ceiling-mounted detectors
• Indoor applications requiring IP20 protection

Key specifications

• Product Type: Surface-mounted box
• Mounting Method: Surface mounting
• Colour: White
• Material: Polycarbonate
• IP Protection Class: IP20
• Compatibility: ESYLUX PD-C360i/24, MD-C360i/24 series and other C-series detectors
• Application Environment: Indoor
• Operating Temperature Range: -25°C to +50°C
• Storage Temperature Range: -25°C to +70°C
• Halogen-free: Yes
• UV Resistance: No
• Cable Entry Options: Rear and side
• Shape: Round
• Diameter: 110 mm
• Depth (Height): 25 mm
• Certifications: CE, RoHS Compliant
• Primary Use: Housing for ESYLUX ceiling-mounted presence/motion detectors

Recommendations

For optimal performance, pair this surface-mounted box with ESYLUX PD-C360i/24 or MD-C360i/24 detectors. Ensure proper cable entry sealing to maintain IP20 protection.
