ESYLUX PD-C 360 stropný snímač prítomnosti, 360° PIR, DALI, biela

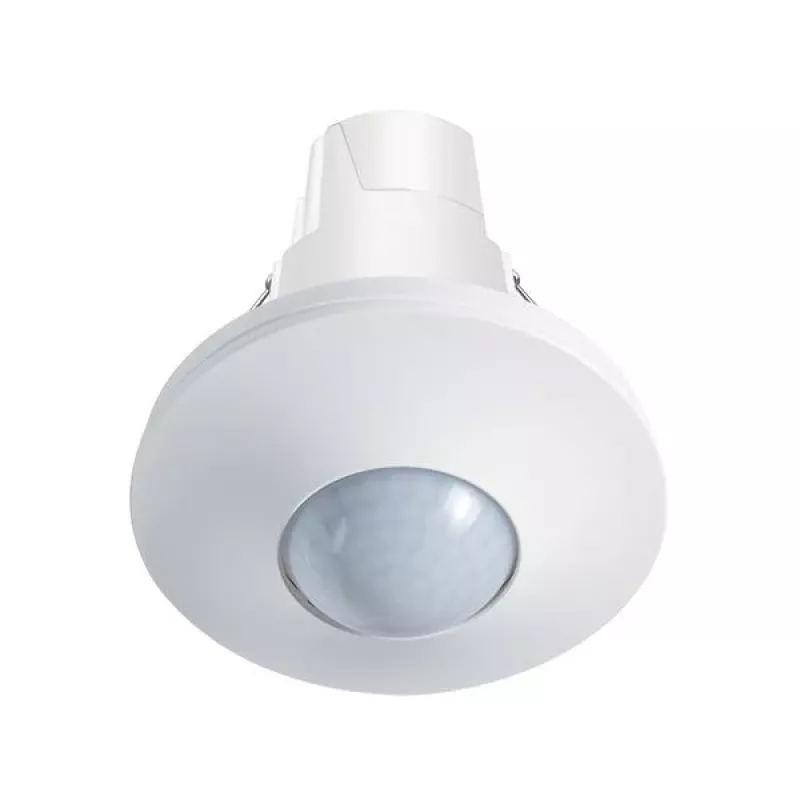

The ESYLUX PD-C 360 is a ceiling-mounted presence detector with 360° PIR detection technology, designed for automatic lighting and HVAC control in commercial and office environments. It combines presence detection, constant light control, and manual override in a single flush-mounted device.

Advantages

Energy-efficient presence-dependent lighting control with integrated constant light regulation ensures optimal comfort and savings. The 360° detection angle covers large areas, and the DALI broadcast interface allows direct control of DALI luminaires without additional gateways. The potential-free relay output enables HVAC control, reducing overall building energy consumption.

Suitable for

• Open-plan offices and meeting rooms
• Classrooms and lecture halls
• Corridors and stairwells
• Showrooms and retail spaces
• Any commercial space requiring automated lighting and HVAC control

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (Ø at 2.5m height): 8 m radial, 6 m tangential
• Recommended mounting height: 2.0 - 3.0 m, max. 5.0 m
• Control channels: 1x Light (DALI Broadcast), 1x HVAC (potential-free relay)
• Supply voltage: 230 V AC / 50 Hz
• Power consumption: approx. 0.5 W
• Light sensor range: 5 - 2000 Lux
• Time delay (light): 60 s - 120 min (adjustable)
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Installation: Flush-mounted ceiling
• Housing material: UV-stabilised polycarbonate
• Colour: White
• Max. switching power (HVAC): 230 V AC, 3 A, 750 VA (cos φ = 1)
• Functions: Constant light control, presence-dependent control, manual override

Recommendations

For optimal performance, mount at a height of 2.5 m and ensure the sensor has a clear view of the area. Use in combination with DALI dimmable luminaires for best energy savings. The device is suitable for indoor use only.
