ESYLUX PD-FLAT 360i/8 snímač prítomnosti, káblový, 50 m², strop, biela, IP20, 3 m

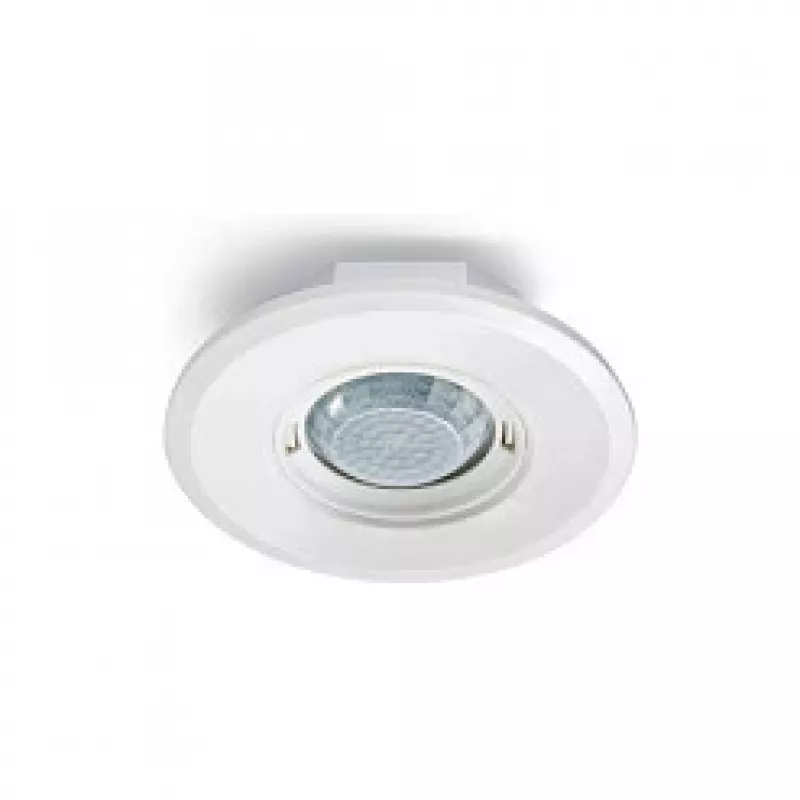

The ESYLUX PD-FLAT 360i/8 is a high-quality passive infrared (PIR) presence detector designed for ceiling flush-mount installation. With a 360° detection angle and a presence detection range of Ø 8 m (at 3 m mounting height), it is ideal for automatic lighting control in offices, meeting rooms, and commercial spaces. The detector features a wired connection, a 3 m cable, and covers an area of up to 50 m². Its sleek white design blends seamlessly into modern interiors.

Advantages

Energy-efficient presence detection with adjustable time delay (60 sec - 15 min) and light sensor range (5 - 2000 Lux). Reliable switching capacity of 2300 W (resistive) or 1150 VA (inductive). UV-stabilised polycarbonate material ensures durability. Easy ceiling flush-mount installation with a low installation depth of 30 mm.

Suitable for

• Offices and meeting rooms
• Classrooms and lecture halls
• Corridors and stairwells
• Commercial and public buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Presence detection range: Ø 8 m (at 3 m height)
• Movement detection range: Ø 24 m (at 3 m height)
• Mounting type: Ceiling flush-mount
• Recommended mounting height: 2.5 - 3.5 m
• IP rating: IP20
• Colour: White
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Light sensor range: 5 - 2000 Lux
• Time delay: 60 sec - 15 min (adjustable)
• Channels: 1 (Light switching)
• Operating temperature: -25 °C to +50 °C
• Installation depth: 30 mm
• Material: UV-stabilised polycarbonate
• Wired connection with 3 m cable

Recommendations

For optimal performance, mount at the recommended height of 2.5 - 3.5 m. Ensure the detection area is free from obstructions. Pair with compatible ESYLUX lighting controls for best results.
