EXERTIS CONNECT 92mm axiálny ventilátor klzné ložisko 12V DC 2500 ot/min 60 m³/h čierny 910170

Delivering 60 m³/h airflow at 2500 RPM, this 92mm axial fan keeps components cool with a sleeve bearing rated for 30,000 hours at 40°C.

Overview

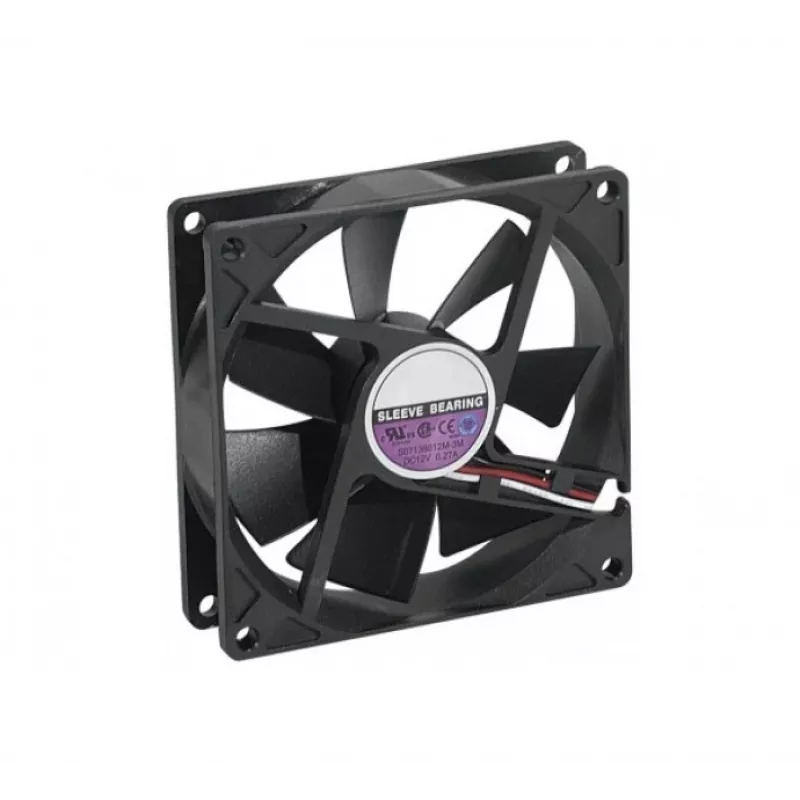

The EXERTIS CONNECT 910170 is a 92 x 92 x 25 mm axial fan designed for reliable cooling in PC cases, power supplies, and other electronics. It operates on 12 V DC with a rated current of 0.15 A and power consumption of 1.8 W. The fan features a sleeve bearing, 7 blades, and a 2-pin connector with approximately 300 mm cable length.

What stands out

• High airflow of 60 m³/h (35.3 CFM) for effective heat dissipation.
• Low power consumption of 1.8 W for energy-efficient operation.
• Durable PBT plastic frame and impeller (UL94V-0) for long-term reliability.
• Wide operating voltage range: 6 - 13.8 V DC.
• Quiet operation at 38 dB(A) noise level.

Technical details

• Fan type: Axial
• Bearing type: Sleeve bearing
• Rated voltage: 12 V DC
• Operating voltage range: 6 - 13.8 V DC
• Rated current: 0.15 A
• Power consumption: 1.8 W
• Rotational speed: 2500 RPM
• Airflow: 60 m³/h (35.3 CFM)
• Noise level: 38 dB(A)
• Connector: 2-pin (open wires)
• Life expectancy (MTBF): 30,000 hours at 40°C
• Frame material: PBT Plastic (UL94V-0)
• Impeller material: PBT Plastic (UL94V-0)
• Operating temperature: -10 to +70 °C
• Storage temperature: -20 to +80 °C
• Number of blades: 7
• Mounting holes: 4
• Cable length: Approx. 300 mm

Our verdict

A solid 92mm fan with strong airflow and low power draw, ideal for builds where reliability and efficiency matter.
