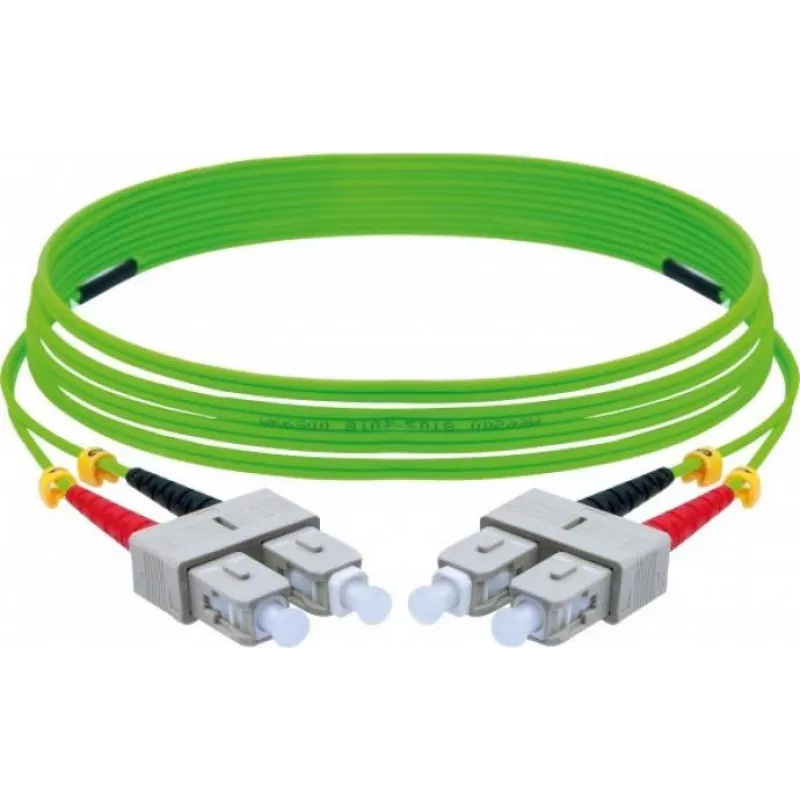

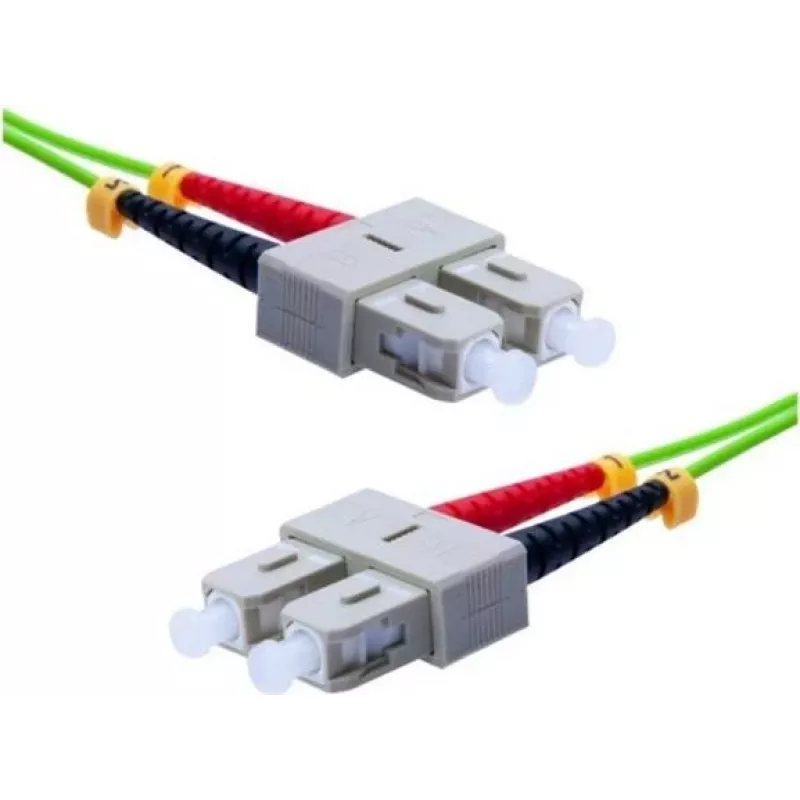

EXERTIS CONNECT OM5 SC Duplex na SC Duplex LWL patch kábel, 50/125 µm, LSZH, limetkovozelený, 10 m 392906

High-speed data centers and enterprise networks need reliable, low-loss fiber connections that can handle growing bandwidth demands. This 10-meter OM5 fiber patch cable delivers wideband multimode performance with SC duplex connectors, enabling smooth migration to 100G, 200G, and 400G Ethernet over short-reach links.

Who is it for

Network engineers, data center managers, and IT integrators who require a dependable, factory-terminated patch cord for high-density patching between switches, servers, and storage. Ideal for environments where lime-green OM5 cables are used for quick identification and where LSZH jacketing is required for fire safety.

Main features

• OM5 wideband multimode fiber (50/125 µm) supports multi-wavelength transmission at 850 nm and 953 nm.
• SC duplex to SC duplex connectors with UPC polish for low insertion loss and high return loss.
• Lime green LSZH jacket for easy OM5 identification and low smoke, zero halogen safety.
• 10-meter length suitable for patching within racks or across adjacent cabinets.
• Compliant with IEC 60793-2-10 Type A1a.4 and TIA-492AAAE for OM5 fiber.

Specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode OM5
• Core/cladding diameter: 50/125 µm
• Connector 1: SC Duplex UPC
• Connector 2: SC Duplex UPC
• Cable length: 10 m
• Jacket material: LSZH
• Cable color: Lime green
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 50 dB
• Maximum bandwidth (850 nm): 2800 MHz*km (EMB)
• Maximum bandwidth (953 nm): 1800 MHz*km (EMB)
• Operating temperature: -20°C to +70°C

Tips

For best performance, keep bend radius above the recommended minimum and avoid pulling on connectors. Use dust caps when ports are unused to prevent contamination.
