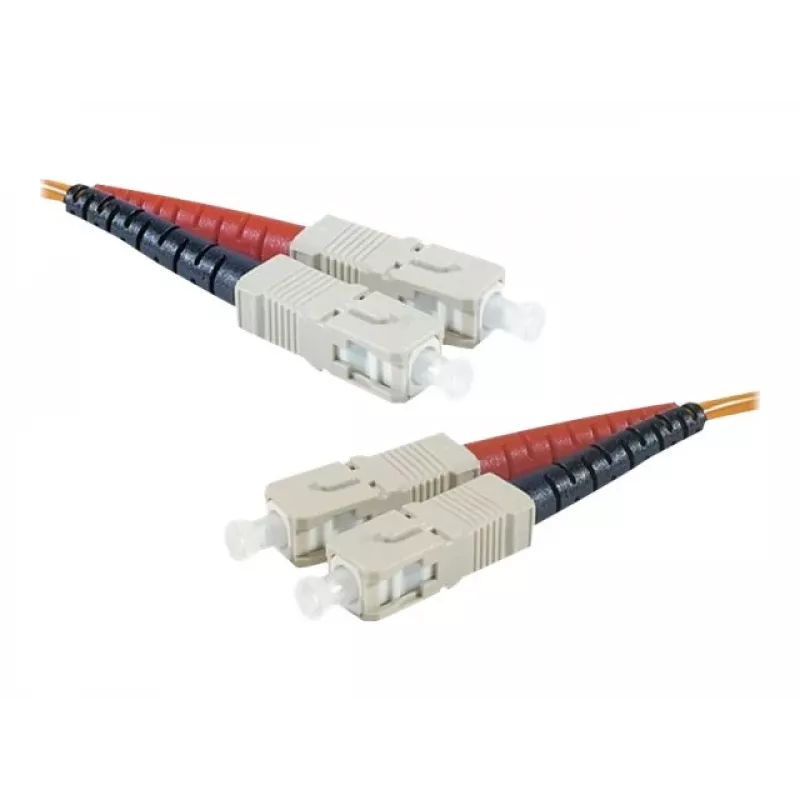

Exertis Connect SC/UPC na SC/UPC multimode duplex LWL patch kábel, OM2 50/125µm, LSZH, 1m, oranžový 392691

This Exertis Connect patch cable stands out for its halogen-free LSZH jacket, making it a safer choice for enclosed spaces where reduced smoke and toxicity are critical. The duplex OM2 multimode design supports short-reach gigabit and 10G Ethernet links in data centers and enterprise networks.

Highlights

• SC/UPC to SC/UPC connectors with UPC polish for low back reflection
• OM2 multimode fiber with 50/125µm core/cladding
• Halogen-free LSZH orange jacket for low smoke and toxicity
• 1-meter length with 2mm cable diameter

In daily use

The cable delivers reliable performance with insertion loss ≤0.3dB and return loss ≥30dB, ensuring stable connections for patch panels, switches, and transceivers. Its duplex construction supports bidirectional communication over two fibers, while the orange jacket provides easy identification of multimode cabling.

Full specifications

• Cable type: Fiber optic patch cable
• Connector 1: SC/UPC male
• Connector 2: SC/UPC male
• Fiber mode: Multimode
• Fiber structure: Duplex
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Fiber type: OM2
• Cable length: 1 m
• Cable diameter: 2 mm
• Jacket material: LSZH
• Jacket color: Orange
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Final note

A dependable OM2 multimode patch cable with SC/UPC connectors, ideal for structured cabling where halogen-free performance is required.
