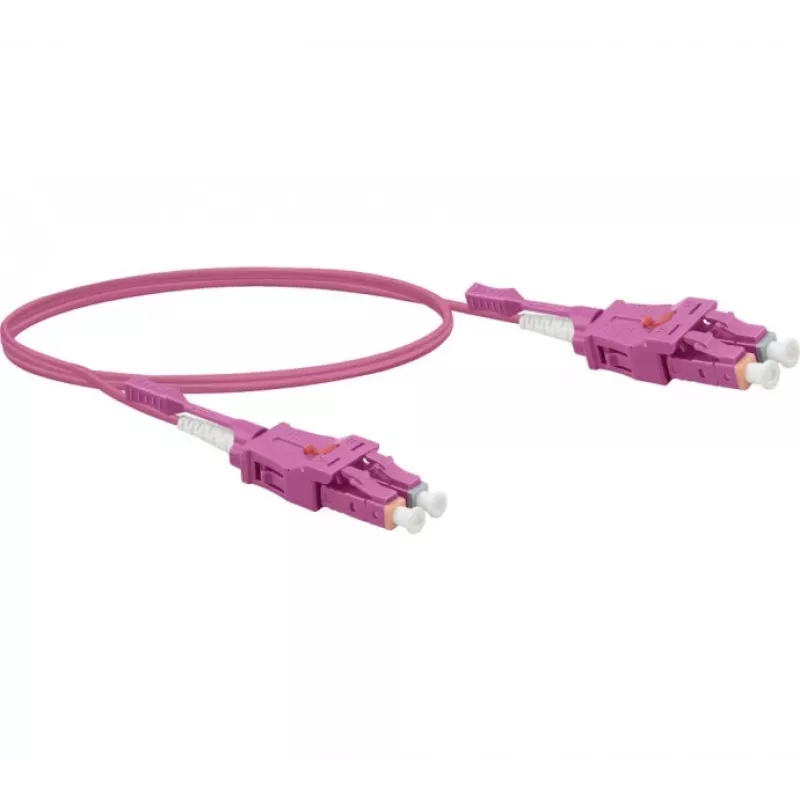

EXERTIS CONNECT Uniboot optický patch kábel, OM4 50/125 µm, LC duplex na LC duplex, UPC, fialový Erika, 10 m 392956

High-density fibre patching in data centres often suffers from cable congestion and difficult polarity reversal. This uniboot patch cable solves those problems by combining both fibres in a single, slim jacket and allowing polarity change without re-termination.

Who is it for

Network engineers and data centre technicians who need reliable OM4 multimode links for 10G/40G/100G Ethernet, Fibre Channel, or InfiniBand over short to medium distances, while keeping cable management simple.

Main features

• Uniboot design: two fibres in one round cable reduces bulk and improves airflow.
• OM4 multimode fibre with 50/125 µm core/cladding supports high bandwidth at 850 nm.
• LC duplex to LC duplex connectors with UPC polish ensure low insertion loss and stable performance.
• Erika violet jacket colour for easy identification of OM4.
• 10 m length suits patching between adjacent racks or within a row.

Specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Multimode
• Fibre grade: OM4
• Core/cladding diameter: 50/125 µm
• Connector 1: LC Duplex
• Connector 2: LC Duplex
• Connector polish: UPC
• Cable design: Uniboot
• Cable length: 10 m
• Jacket colour: Erika violet
• Number of fibres: 2
• Insertion loss (max): 0.3 dB
• Return loss (min): 50 dB
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Supported wavelengths: 850 nm, 1300 nm

Tips

Use this cable with OM4-compatible transceivers for optimal performance. The uniboot design is ideal for high-density patch panels where space is limited.
