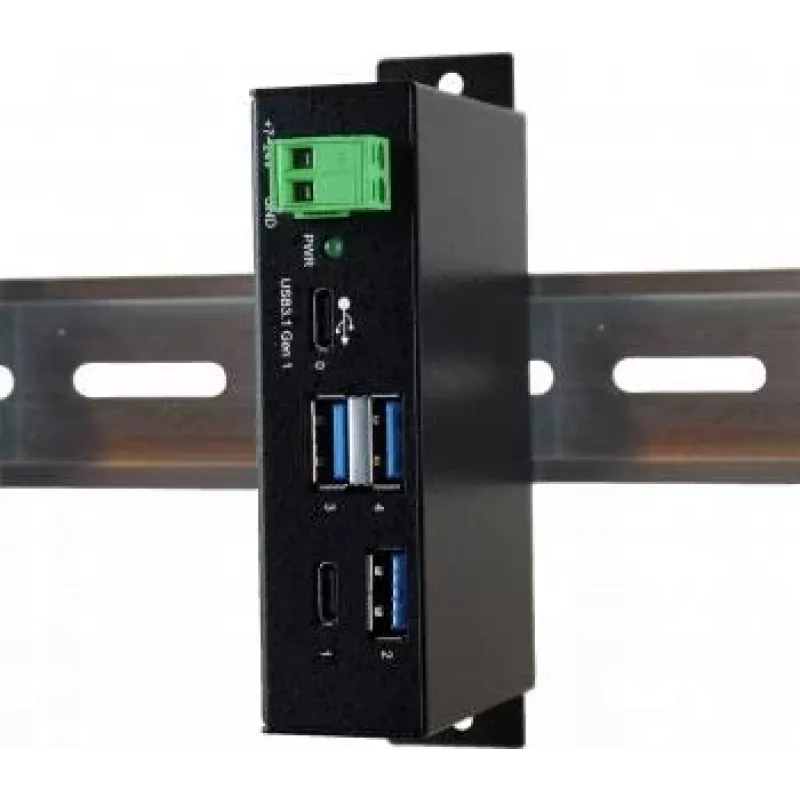

EXSYS EX-1195HMS Industrial 4-port USB 3.1 Gen 1 hub s USB-C, montáž na DIN lištu, 9-48V DC

Industrial environments demand robust connectivity that can withstand harsh conditions while delivering reliable high-speed data transfer. The EXSYS EX-1195HMS answers this need with a rugged 4-port USB 3.1 Gen 1 hub engineered for DIN-rail mounting and wide-range DC power. It expands a single USB upstream port into three USB-A and one USB-C downstream ports, each supporting up to 5 Gbps, making it ideal for connecting sensors, cameras, or other USB devices in automation, manufacturing, or vehicle applications.

Who is it for

This hub is built for system integrators, industrial PC builders, and automation engineers who need a compact, metal-housed USB hub that can be securely mounted on a DIN rail and powered from a 9-48V DC source. It suits applications in factories, kiosks, vehicles, and outdoor cabinets where standard consumer hubs would fail due to temperature extremes, vibration, or electrical noise.

Main features

• 4 downstream ports: 3x USB-A and 1x USB-C, all USB 3.1 Gen 1 (5 Gbps)
• Upstream connection via USB 3.1 Gen 1 Type-B port
• DIN-rail mountable metal housing for secure industrial installation
• Wide DC input range 9-48V with terminal block power connector
• Industrial-grade operating temperature from -40°C to 85°C
• ESD protection up to 15KV and surge protection up to 600W
• LED indicators for power and link/activity
• Plug and play, no drivers required for most OS

Specifications

• USB standard: USB 3.1 Gen 1 (USB 3.0 / USB 3.2 Gen 1x1)
• Data transfer rate: up to 5 Gbps
• Downstream ports: 3x USB-A, 1x USB-C
• Upstream port: 1x USB 3.1 Gen 1 Type-B
• Power input: DC 9-48V via terminal block
• Housing material: metal
• Operating temperature: -40°C to 85°C
• Storage temperature: -40°C to 85°C
• Humidity: 5 to 95% RH (non-condensing)
• ESD protection: 15KV
• Surge protection: 600W
• Chipset: VIA VL812
• OS compatibility: Windows, macOS, Linux
• Certifications: CE, FCC, RoHS

Tips

When integrating the EX-1195HMS into your system, ensure the DC power supply is within the 9-48V range and properly connected to the terminal block. For DIN-rail mounting, use a standard 35mm rail. The hub is plug-and-play, but for optimal performance on older Windows versions, install the latest USB 3.0 drivers from the chipset vendor.
