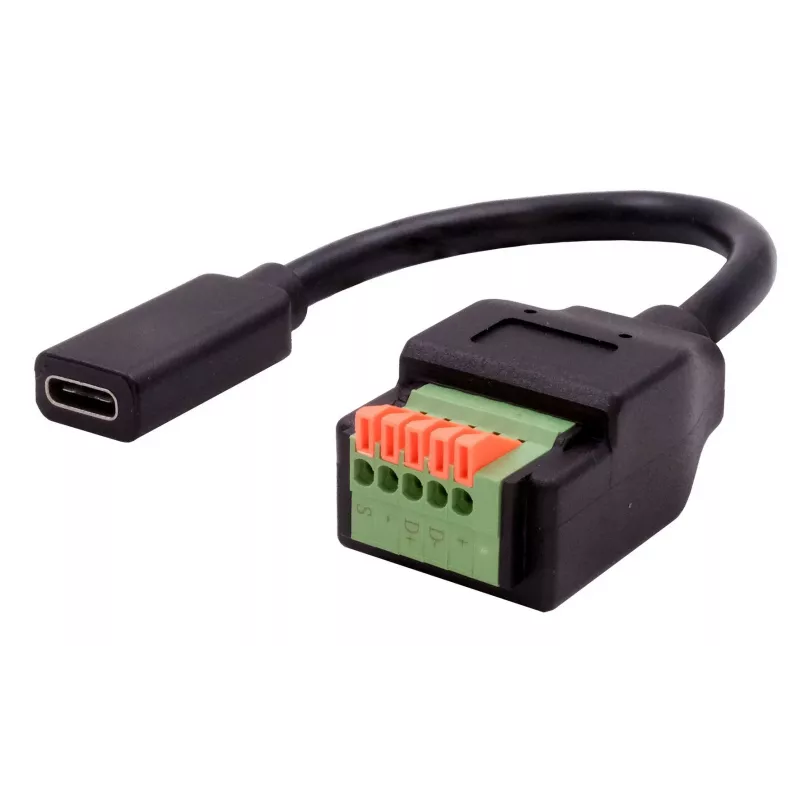

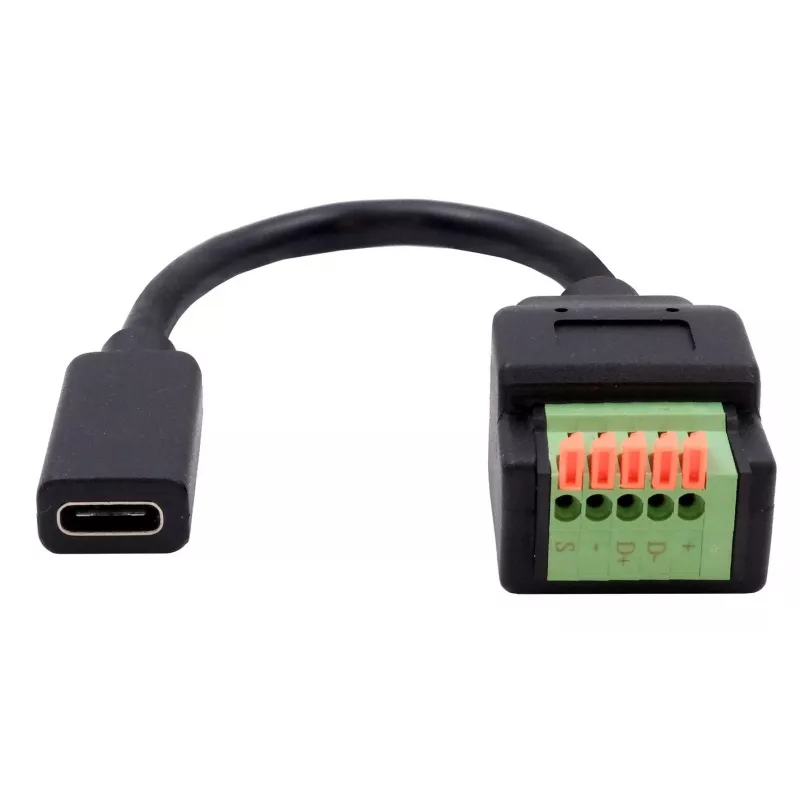

EXSYS EX-49122 USB-C konektor samica na 5-pin svorkovnicový adaptér s tlačidlom, USB 2.0, 15 cm

For embedded developers and industrial integrators working with custom USB wiring, the EXSYS EX-49122 provides a practical bridge from a standard USB-C port to a 5-pin screw terminal block. The integrated push button adds a convenient signal control point, making it suitable for prototyping, testing, and field installations where a direct solder-free connection is needed.

Key specifications

• Connector A: USB-C female
• Connector B: 5-pin screw terminal block (VBUS, D-, D+, GND, push button/signal)
• USB standard: USB 2.0 (up to 480 Mbps)
• Cable length: 15 cm
• Integrated push button for signal control
• Power output: up to 5V / 500mA on VBUS
• Shielding: foil and braid
• Cable jacket: PVC
• Plug & Play, driverless, OS independent

Why choose it

This adapter eliminates the need for soldering or custom PCB work when connecting USB devices to terminal blocks. The push button can be used for device reset, boot mode selection, or custom signaling, adding flexibility in development and production environments.

Ideal use cases

• Industrial control panels requiring USB connectivity
• Embedded system prototyping and debugging
• Custom USB cable assemblies and test fixtures
• Field service kits for quick USB repairs

Good to know

The terminal block pinout includes dedicated pins for power, data, ground, and the push button signal, allowing straightforward integration with microcontrollers, sensors, or other USB peripherals.
