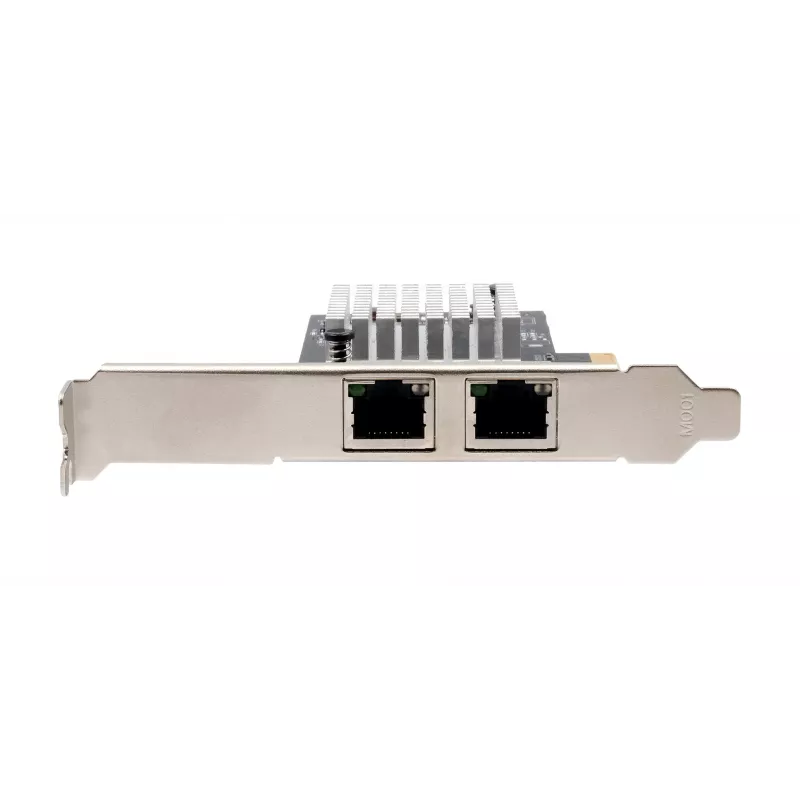

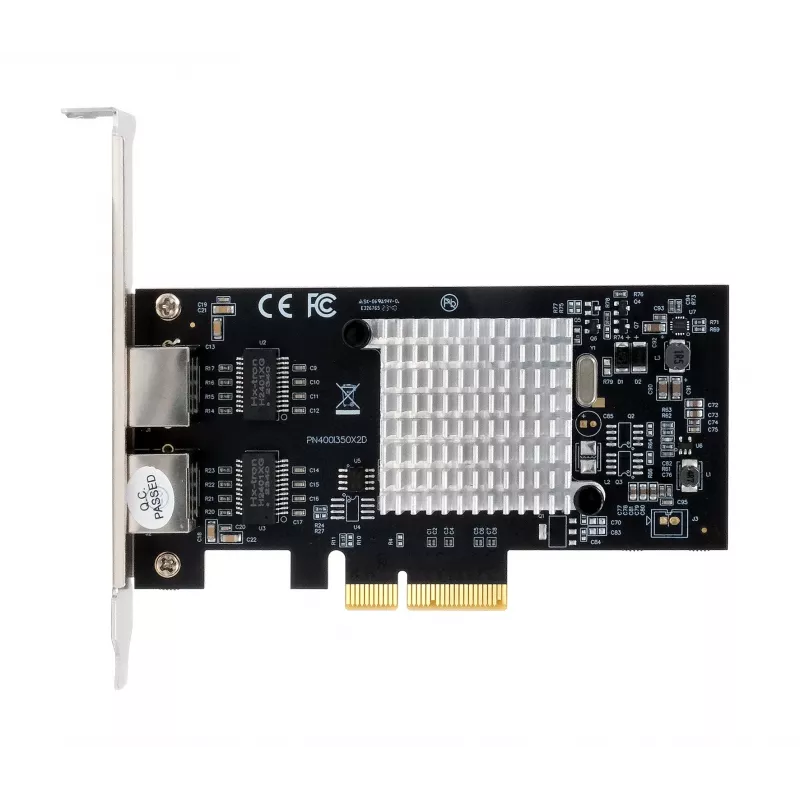

EXSYS EX-60202 Dual 1 Gigabit Ethernet PCIe x4 karta, Intel I350-AM2 čipset, 2x RJ45, Low Profile kryt súčasťou

The EXSYS EX-60202 sets itself apart with the Intel I350-AM2 chipset, delivering dual Gigabit Ethernet ports over a PCIe x4 interface for reliable, high-throughput networking in servers and workstations. This card is engineered for virtualization and demanding network environments, supporting SR-IOV, VMDq, and Intel VT-c to offload CPU workloads and improve VM performance.

Highlights

• Dual 10/100/1000 Mbps RJ45 ports with auto-negotiation and full-duplex support
• Intel I350-AM2 controller with PCIe 2.1 x4 host interface
• Jumbo frame support up to 9.5 KB and IEEE 802.3x flow control
• Wake-on-LAN and PXE boot for remote management

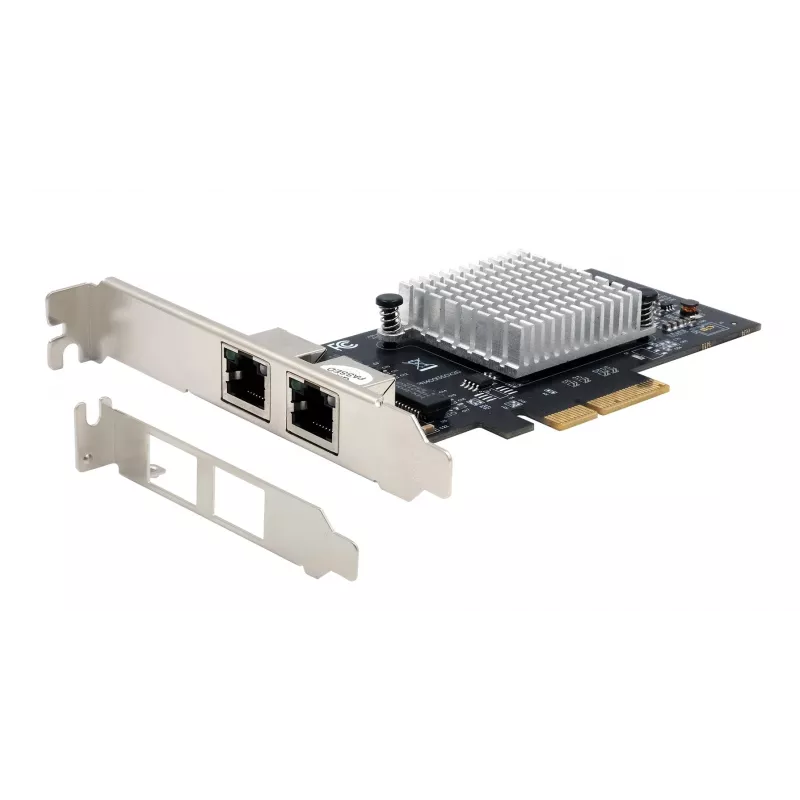

• Low profile bracket included for small form factor systems

In daily use

Whether you are building a virtualized server, a network appliance, or a high-performance workstation, the EX-60202 provides stable, low-latency connectivity. The Intel chipset ensures broad OS compatibility, including Windows Server, Windows 7/8/10/11, Linux, and VMware ESX/ESXi, with driver support that is mature and well-tested. Link/activity LEDs on each port give instant status feedback, and the card's typical power consumption of 4.5 W keeps thermal load minimal.

Full specifications

• Host interface: PCIe x4 (PCIe 2.1)
• Ethernet ports: 2x RJ45
• Data rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Chipset: Intel I350-AM2
• Jumbo frame support: up to 9.5 KB
• Wake-on-LAN: Yes
• PXE boot support: Yes
• Virtualization: Intel VT-c, VMDq, SR-IOV
• IEEE standards: 802.3, 802.3u, 802.3ab, 802.1Q, 802.1p, 802.3x
• LED indicators: Link/Activity per port
• Flow control: IEEE 802.3x
• Auto-negotiation: Yes
• Full duplex: Yes
• Power consumption (typical): 4.5 W
• Operating system compatibility: Windows Server, Windows 7/8/10/11, Linux, VMware ESX/ESXi

Final note

The EXSYS EX-60202 is a proven dual-port Gigabit Ethernet solution for professionals who need dependable network performance and advanced virtualization features without compromise.
