EXSYS M12 D-Code 4-pin konektor samica na RJ45 konektor samica priemyselný Ethernet adaptér EX-49521

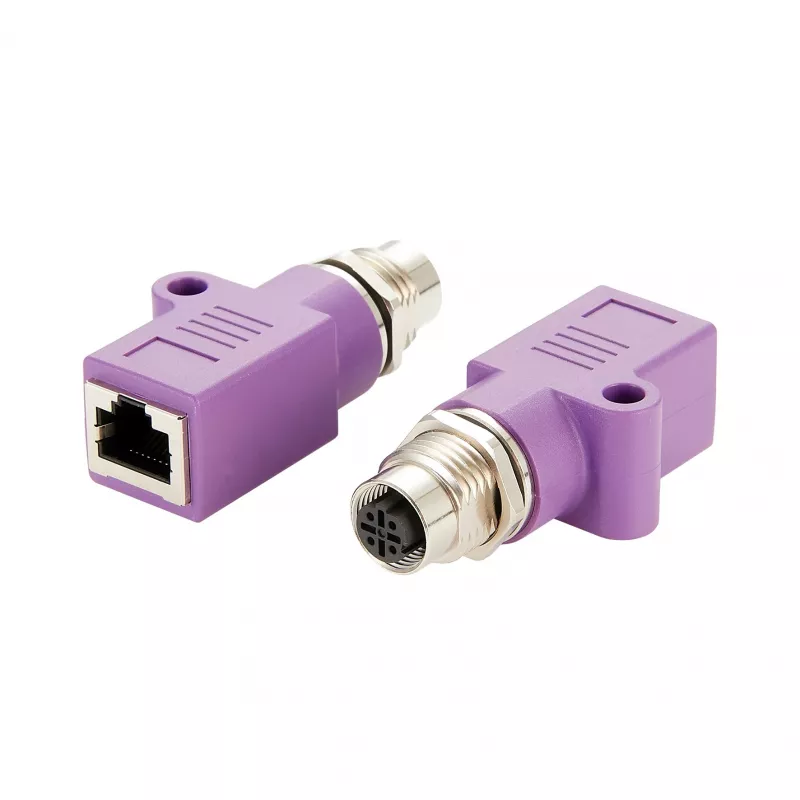

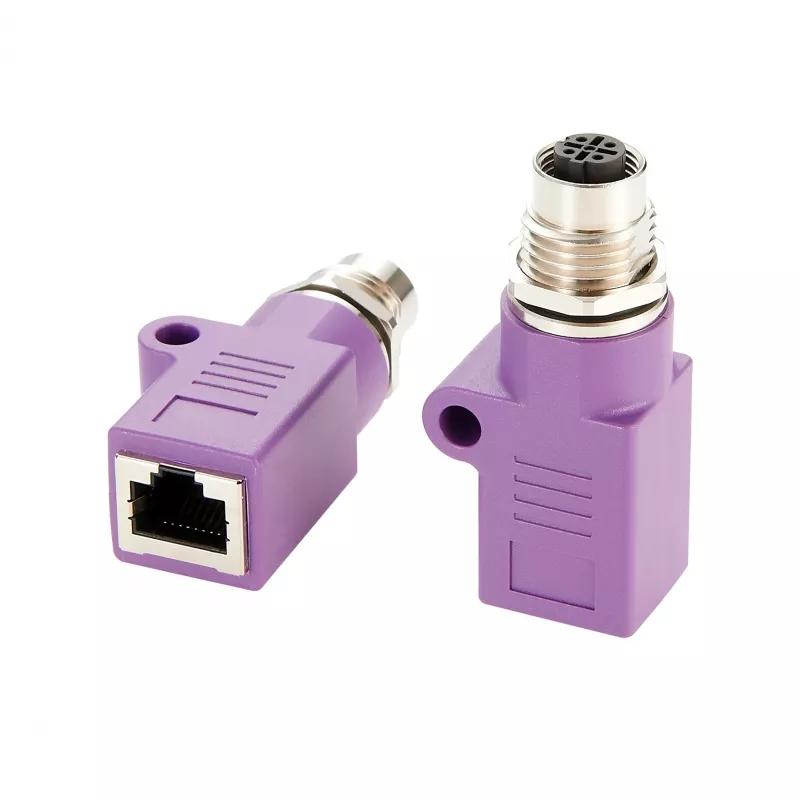

Connecting standard RJ45 Ethernet equipment to industrial M12 D-coded networks often requires separate, bulky converters. The EXSYS EX-49521 adapter solves this by providing a direct, inline connection between a 4-pin M12 D-coded female socket and an RJ45 female socket. It enables reliable Fast Ethernet (10/100 Mbps) communication in harsh industrial environments.

Who is it for

This adapter is for automation engineers, system integrators, and maintenance technicians who need to link sensors, actuators, or industrial devices with M12 D-coded ports to standard Ethernet infrastructure. It is suitable for factory floors, machine building, and outdoor installations where a compact and robust connection is required.

Main features

• Converts M12 D-coded 4-pin female to RJ45 female
• Supports Fast Ethernet (10/100 Mbps)
• Fully shielded for reliable signal integrity
• IP67 protection when mated, suitable for harsh environments
• Nickel-plated brass housing on M12 side, polyamide housing on RJ45 side
• Wide operating temperature range: -25°C to +85°C
• PoE compatible

Specifications

• Connector 1: M12 D-coded, female, 4-pin
• Connector 2: RJ45, female
• Ethernet standard: Fast Ethernet (10/100 Mbps)
• Shielding: Yes, fully shielded
• IP rating: IP67 (when mated)
• Housing material (M12 side): Nickel-plated brass
• Housing material (RJ45 side): PA (polyamide)
• Operating temperature: -25°C to +85°C
• PoE compatibility: Yes
• Application: Industrial Ethernet
• Mounting type: Inline adapter
• Colour: Silver / Black

Tips

For best performance, ensure both connectors are securely tightened to maintain the IP67 seal. Use shielded RJ45 cables to preserve signal integrity in noisy environments.
