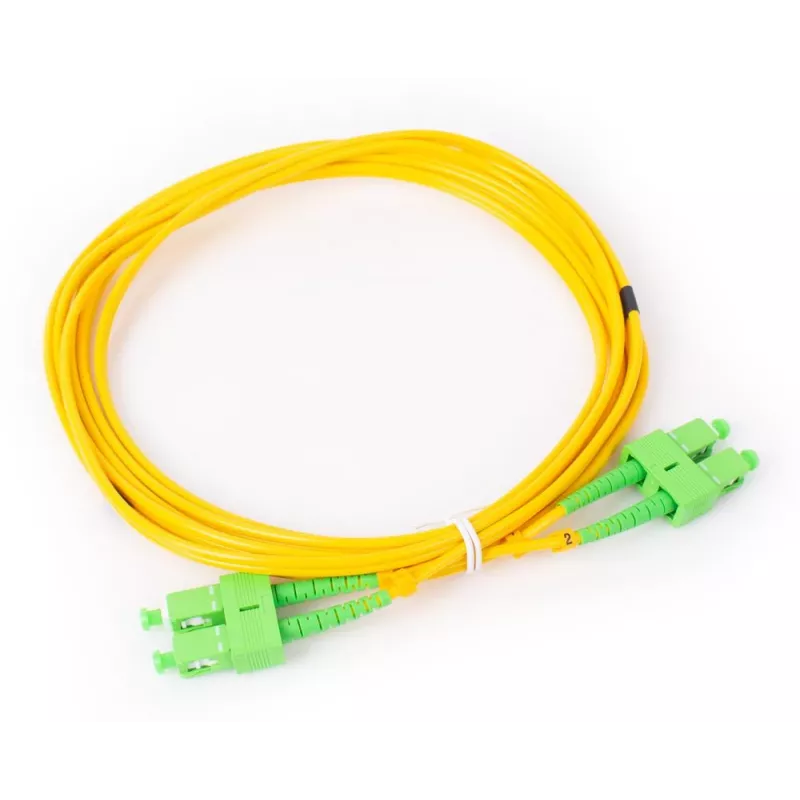

GETFORT GF-SASAD3 Singlemode SC/APC na SC/APC duplex optický patch kábel 3m

The GETFORT GF-SASAD3 is a high-quality single-mode fiber optic patch cable designed for reliable and high-speed data transmission. With SC/APC connectors on both ends and a duplex configuration, this 3-meter cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This patch cord offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, while the yellow color allows for easy identification. The 9/125 µm core/cladding diameter ensures compatibility with standard single-mode systems.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN) and Storage Area Networks (SAN)

Key specifications

• Fiber Mode: Single-Mode (SM)

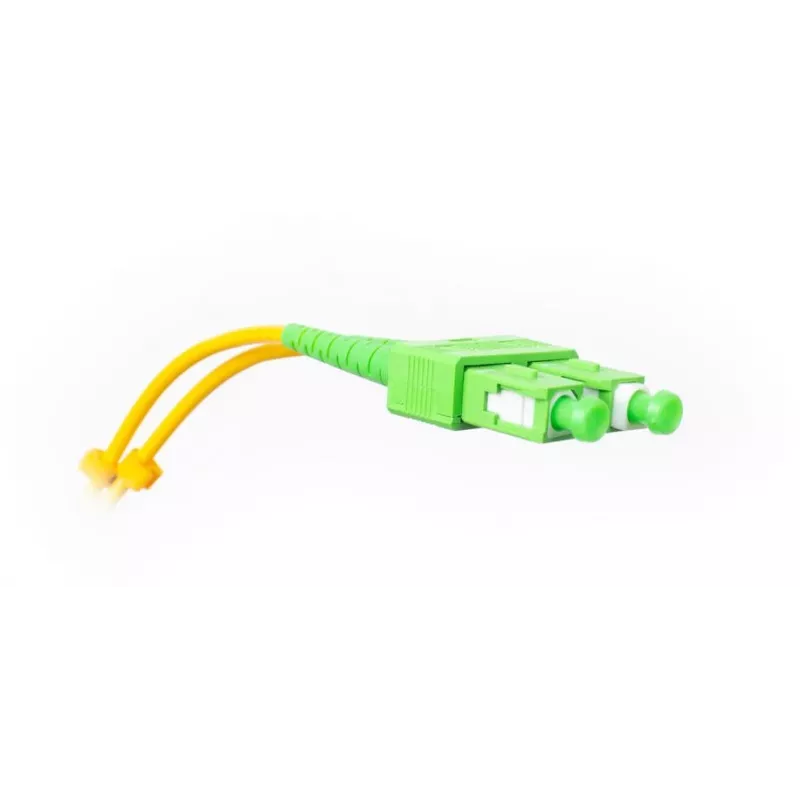

• Connector Type: SC/APC to SC/APC
• Cable Configuration: Duplex
• Length: 3 meters
• Core/Cladding: 9/125 µm
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥60 dB
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This patch cord is compatible with standard SC/APC ports and is suitable for both indoor and outdoor use within specified temperature ranges.
