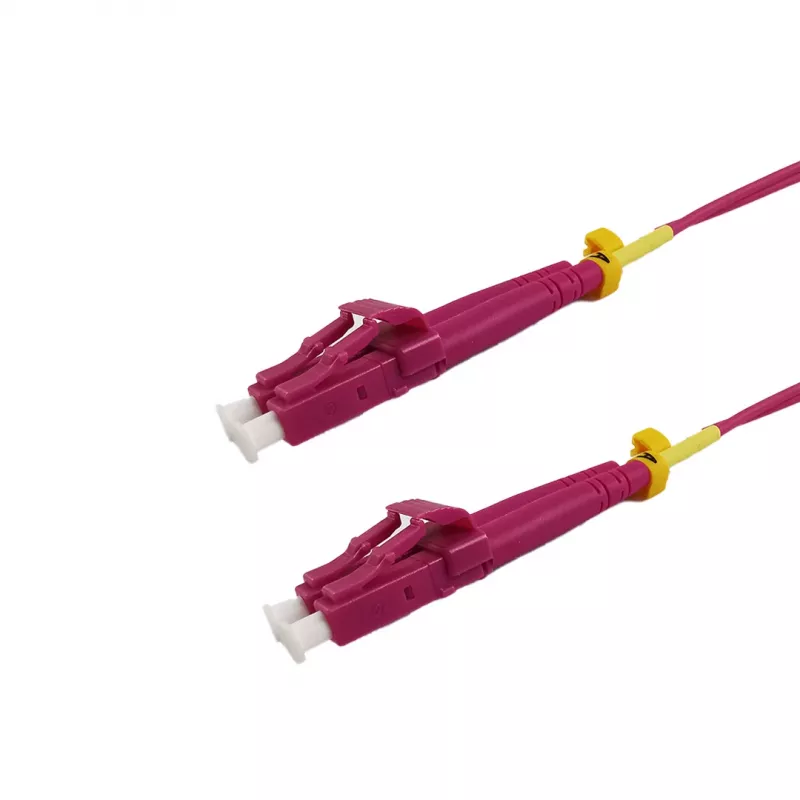

GRAFENTHAL optický kábel OM4 LC/UPC-LC/UPC LSZH 10,00m fialový

The GRAFENTHAL Optical Fibre Cable OM4 is a high-performance multimode patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends, this duplex cable ensures low insertion loss and high return loss, making it ideal for high-speed applications up to 40 Gbps and beyond.

Advantages

This OM4 cable offers superior bandwidth and signal integrity, supporting 40 Gbps data rates over distances up to 150 meters. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The violet colour allows for easy identification and organization in data centres.

Suitable for

• Data centre cabling infrastructure
• High-speed network connections (10/40/100 Gbps)
• Fibre channel storage area networks
• Telecommunications and enterprise networks

Key specifications

• Cable Type: Optical Fibre Patch Cable
• Fibre Mode: Multimode
• Fibre Class: OM4
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Number of Fibres: 2 (Duplex)
• Cable Length: 10.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Violet
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Bandwidth (850nm): 4700 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3
• Polarity: A-B (Crossed)
• Minimum Bend Radius: 7.5 mm

Recommendations

For optimal performance, use with OM4-compatible transceivers and ensure proper handling to avoid damage. This cable is suitable for indoor installations where safety and performance are critical.
