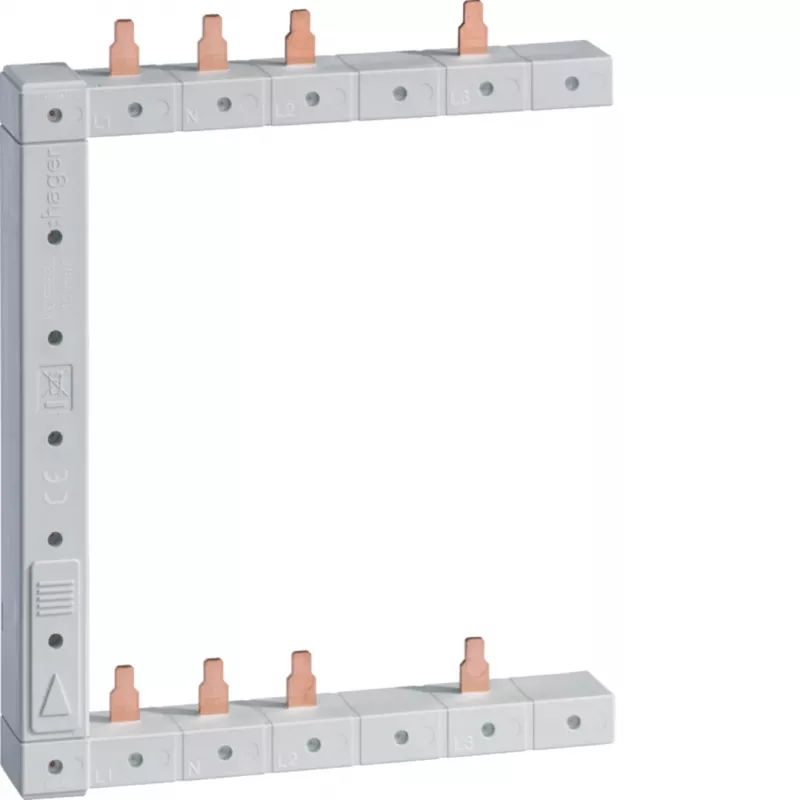

HAGER KCF563L vertikálna ľavá fázová lišta, 2-radová, 2-pólová, 63 A, 12 modulov, kolíkový typ

In distribution boards and consumer units, electricians need a reliable way to distribute power across modular devices. The HAGER KCF563L is a vertical left phase busbar designed for 2-row installations, providing a 2-pole connection across 12 modules (6 per row). With a rated current of 63 A and a rated voltage of 230/400 V AC, it handles common residential and commercial loads. The busbar uses a pin-type connection, making it compatible with standard DIN rail modular devices. Its fully insulated copper conductors with plastic insulation ensure safe operation and easy handling. The grey insulation blends with typical panel interiors.

Key specifications

• Busbar type: Phase busbar
• Number of poles: 2
• Number of rows: 2
• Connection orientation: Vertical left
• Number of modules: 12 (6 per row)
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Conductor cross-section: 10 mm²
• Insulation: Fully insulated
• Conductor material: Copper
• Insulation material: Plastic
• Mounting type: For DIN rail modular devices
• Module pitch: 18 mm
• Insulation colour: Grey

Why choose it

This busbar simplifies wiring in multi-row distribution boards, reducing installation time and potential errors. Its pin-type design ensures secure connections to compatible modular devices, and the vertical left orientation fits standard panel layouts.

Ideal use cases

• Residential distribution boards
• Commercial consumer units
• Panel upgrades requiring reliable phase distribution

Good to know

The busbar is designed for use with modular devices that accept pin-type connections. Always verify compatibility with your specific devices and follow local electrical codes during installation.
