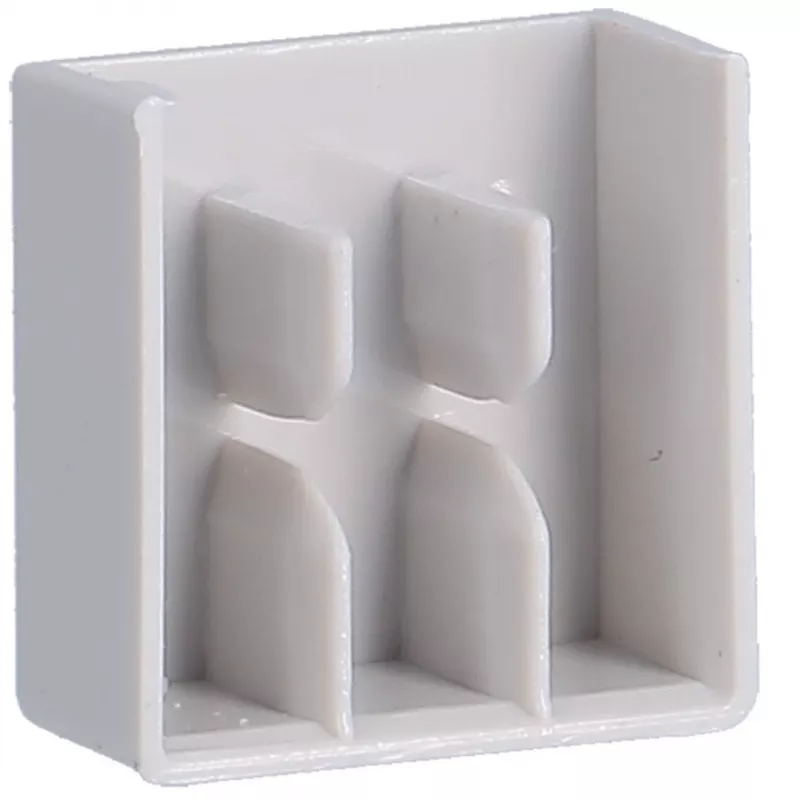

HAGER KZN030 koncovka pre 3-pólovú zbernicu

Busbar end cap for 3-pole busbars, providing insulation and protection of live parts in electrical distribution boards. Snap-on mounting ensures quick and secure installation on Hager KDN series busbars.

Advantages

Made of halogen-free thermoplastic, this end cap offers reliable electrical insulation and mechanical protection. Its grey colour (RAL 7035) blends seamlessly with standard distribution board components.

Suitable for

• 3-pole busbars in consumer units and distribution boards
• Hager KDN series busbar systems
• Applications requiring IP20 protection when installed

Key specifications

• Type: End cap
• Number of poles: 3
• Material: Thermoplastic, halogen-free
• Colour: Grey (RAL 7035)
• Mounting method: Snap-on
• Operating temperature: -25 to 70 °C
• Storage temperature: -40 to 80 °C
• Glow wire test: 850 °C
• Compliance: IEC/EN 60947-1, IEC/EN 61439-1
• RoHS compliant, REACH compliant

Recommendations

Use one end cap per busbar end to ensure safe insulation. Verify busbar compatibility before installation.
