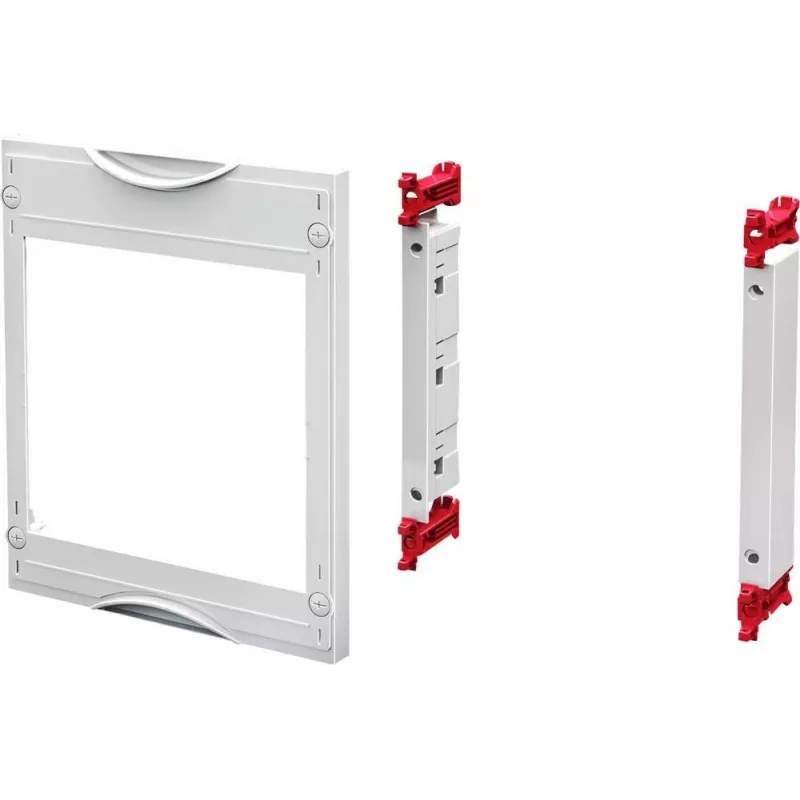

Rittal SV zbernicový modul 9666.530, 3-pólový, 630 A, RiLine60, svetlosivý

In low-voltage switchgear assemblies, the Rittal SV Busbar Module 9666.530 serves as a robust connection point for NH fuse-switch disconnectors, enabling safe and efficient power distribution. This 3-pole module is engineered for the RiLine60 busbar system and supports NH fuse sizes 00, 1, 2, and 3, making it a versatile choice for panel builders and electrical engineers.

Key specifications

• Product type: Busbar module
• Number of poles: 3
• Compatible busbar system: RiLine60 (60 mm)
• Compatible NH fuse sizes: 00, 1, 2, 3
• Rated operating voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 1000 V AC
• Rated impulse withstand voltage (Uimp): 8 kV
• Maximum current for connected devices: 630 A
• Material: Polyamide (PA 6.6), glass-fibre reinforced
• Colour: RAL 7035 (light grey)
• Protection category: IP20 (with cover)
• Mounting type: Direct on busbar system
• Connection type: Screw connection
• Standards compliance: IEC 61439-1, IEC 61439-2
• Operating temperature range: -5 °C to +55 °C
• Flammability rating: UL 94 V-0

Why choose it

The module's glass-fibre reinforced polyamide housing provides excellent mechanical strength and electrical insulation, while the screw connection ensures a secure and maintenance-friendly installation. Its compatibility with multiple NH fuse sizes reduces inventory complexity, and the IP20 protection (with cover) safeguards against accidental contact, enhancing operational safety.

Ideal use cases

• Power distribution in industrial control panels
• Motor control centres requiring fused protection
• Switchgear assemblies for commercial buildings
• Retrofit projects using RiLine60 busbar systems

Good to know

The module is designed for direct mounting on the RiLine60 busbar, eliminating the need for additional adapters. It complies with IEC 61439 standards, ensuring reliable performance in low-voltage switchgear. For detailed installation instructions, refer to the Rittal SV 9666.530 documentation.
