Hager UM22B univerzálna medená lišta 20x10mm 2-polová 500A 495mm

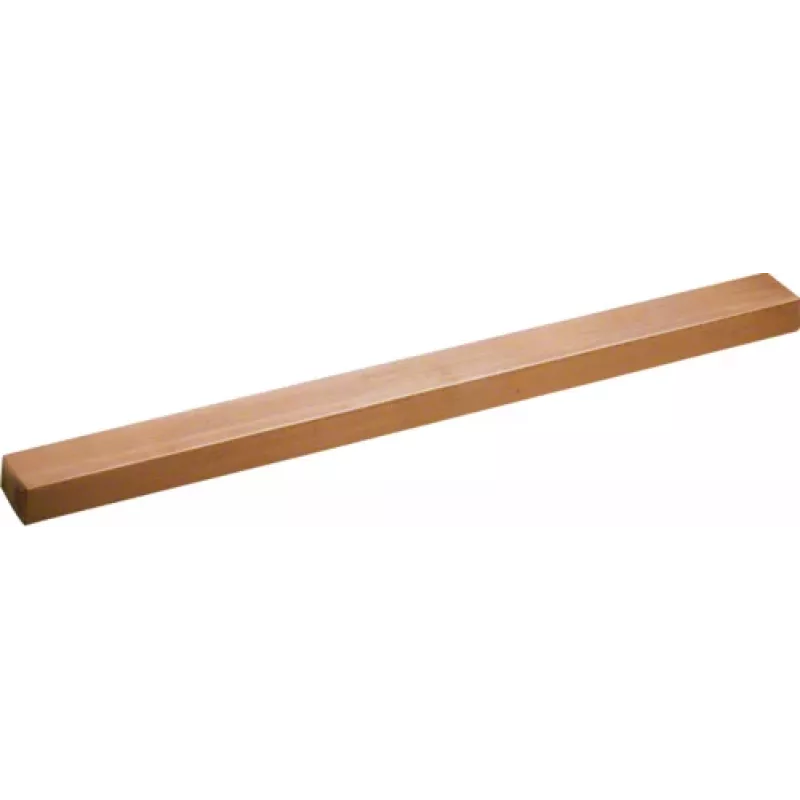

In electrical distribution, connecting multiple devices to a common power source often requires a reliable, low-resistance conductor. The Hager UM22B is a flat copper busbar designed for exactly that: it provides a solid, uninsulated 20x10 mm copper path rated for 500 A, ideal for building two-field distribution setups in control panels and switchgear.

Who is it for

This busbar is intended for electricians, panel builders, and maintenance technicians who need a robust, high-current busbar for universal power distribution. It is particularly suited for applications where two fields or modules must be linked, and where space and current capacity are critical.

Main features

• Solid copper construction for excellent conductivity and durability.
• Flat rectangular cross-section 20 x 10 mm, rated for 500 A continuous current.
• Length of 495 mm, suitable for two-field distribution layouts.
• Uninsulated design allows direct connection to compatible terminals or clamps.
• Part of the Hager UM series, ensuring compatibility with universal mounting systems.

Specifications

• Product type: Copper busbar
• Rated current: 500 A
• Material: Copper (Cu)
• Cross-section: 20 x 10 mm
• Length: 495 mm
• Width: 10 mm
• Height: 20 mm
• Shape: Flat rectangular
• Number of fields: 2
• Insulation: Uninsulated
• Model series: UM

Tips

When installing, ensure the busbar is properly secured and that connections are tightened to the manufacturer's torque specifications to avoid hot spots. Because it is uninsulated, maintain adequate clearance from grounded metal parts to prevent short circuits.
