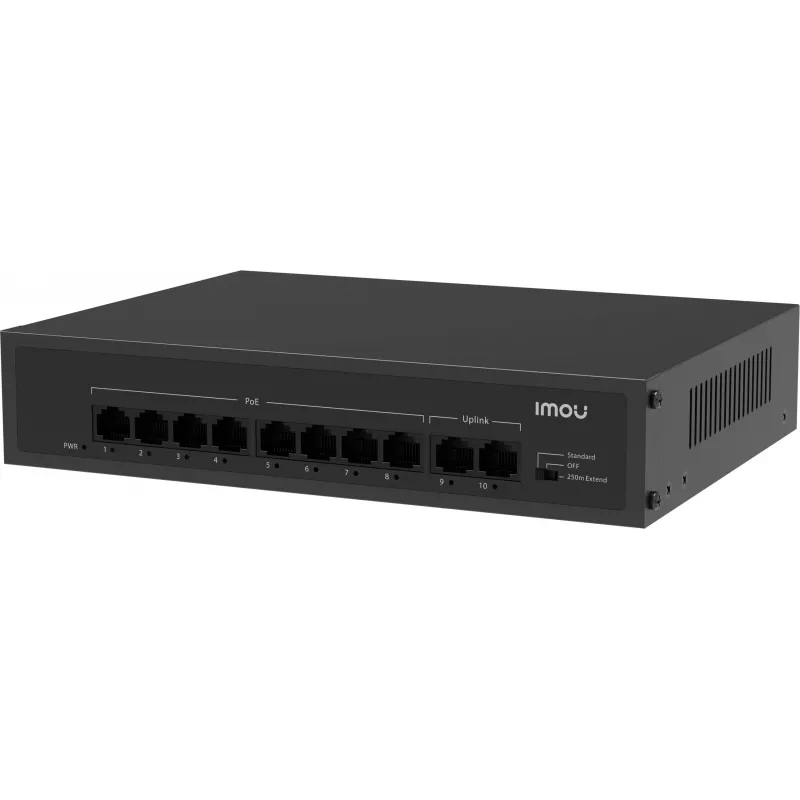

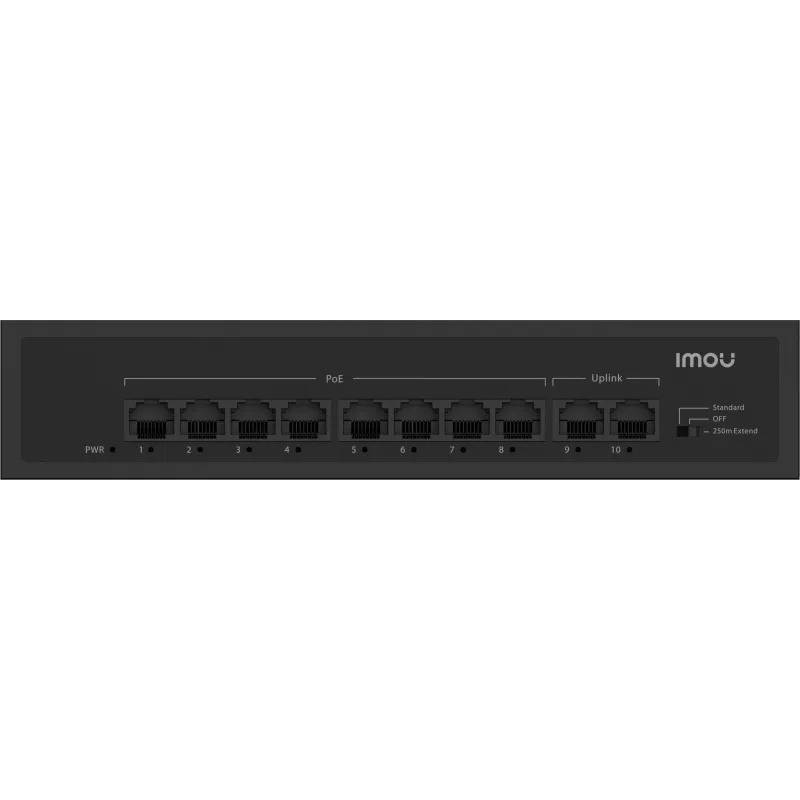

Imou SF110P 10-portový switch 8x PoE 2x uplink

The Imou SF110P is a 10-port unmanaged PoE switch designed for small to medium-sized networks. It provides 8 PoE ports (10/100Mbps) with a total power budget of 96W, supporting IEEE 802.3af/at for powering IP cameras, access points, and other PoE devices. Two additional uplink ports ensure flexible network expansion. With plug-and-play installation, fanless design, and advanced features like Extend Mode and VLAN Mode, this switch delivers reliable and efficient performance for surveillance and office applications.

Advantages

• 8 PoE ports with up to 30W per port, ideal for powering multiple devices
• Total PoE budget of 96W, supporting high-power devices
• Fanless design for silent operation in noise-sensitive environments
• Plug-and-play setup, no configuration required
• Extend Mode for long-distance transmission up to 250m
• VLAN Mode for traffic isolation and enhanced security

Suitable for

• IP surveillance systems (cameras, NVRs)
• Wireless access points and VoIP phones
• Small office/home office (SOHO) networks
• Edge network deployments requiring PoE

Key specifications

• Total Ethernet Ports: 10
• PoE Ports: 8 x 10/100Mbps RJ45
• Uplink Ports: 2 x 10/100Mbps RJ45
• PoE Standard: IEEE 802.3af/at
• Max PoE Power per Port: 30W
• Total PoE Power Budget: 96W
• Switching Capacity: 2 Gbps
• Packet Forwarding Rate: 1.488 Mpps
• MAC Address Table Size: 2K
• Jumbo Frame Support: 1.5K bytes
• Network Protocols: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• Power Supply: DC 52V/1.85A (External Adapter)
• Power Consumption: <100W (with PoE)
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Mounting Type: Desktop, Wall-mount
• Fan: Fanless Design

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch supports both desktop and wall-mount installation. Ensure adequate ventilation around the device to maintain operating temperature.
