InLine 76666M rozhranie/karta adaptér interný USB 3.2 Gen 1 (3.1 Gen 1)

Four additional USB ports:The card expands existing systems with four USB-A 3.2 Gen. 1 ports for flexible use of external devices.
Stable data transfer:Supports USB 3.2 Gen. 1 with up to 5 Gb/s—ideal for fast and reliable data streams.
Additional power supply via SATA:Reliably supplies connected USB devices with power – even when higher power is required.
Compatibility with common PCIe slots:Suitable for PCIe x1, x4, x8, or x16 – maximum flexibility in installation.
Hot-plug and plug-and-play capable:Devices can be connected or removed during operation without restarting the system.

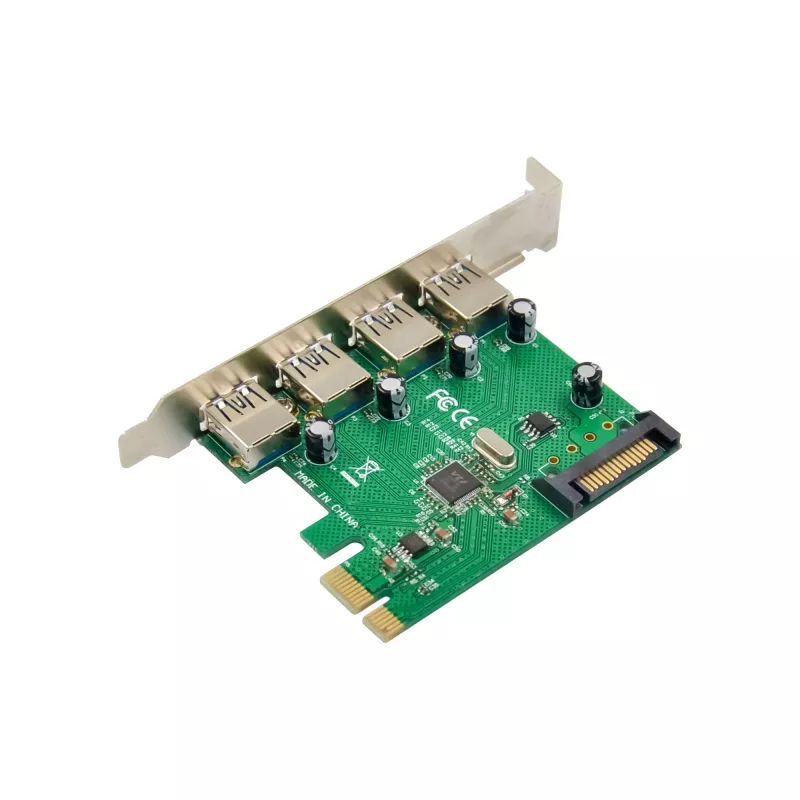

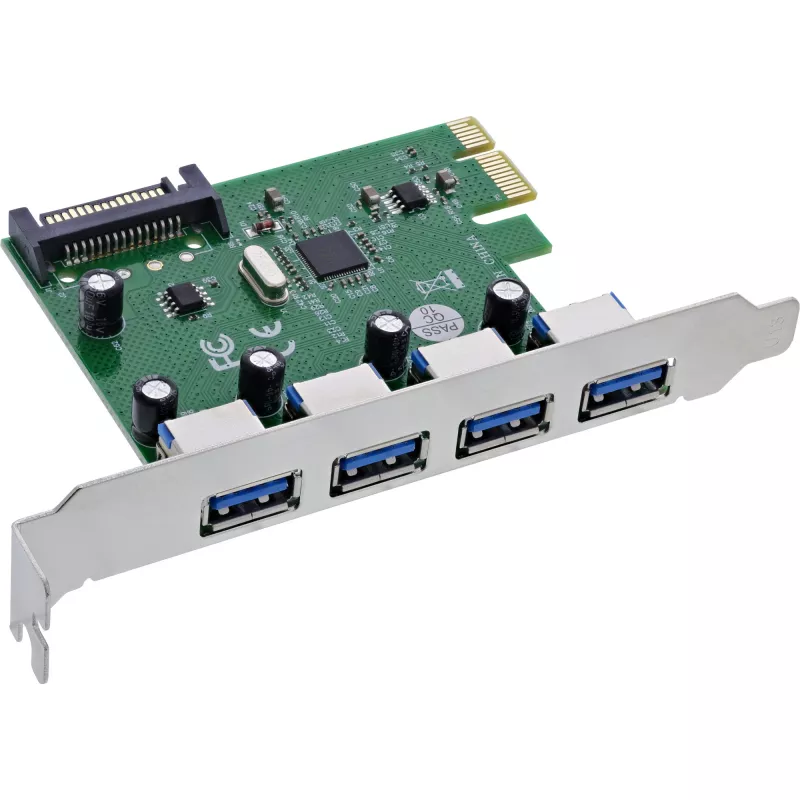

The InLine® PCIe USB interface card with four USB-A 3.2 Gen. 1 ports is the ideal solution for professional expansion of desktop and industrial PCs. It delivers reliable and fast data transfers at up to 5 Gb/s and is suitable for connecting a wide variety of USB devices – from storage solutions and printers to peripheral devices for industrial use.
Thanks to the integrated SATA power connector, even devices with increased power requirements are reliably supplied with energy. Installation is via a free PCIe slot (x1, x4, x8, or x16) and enables immediate use via Plug & Play. Hot-plug support allows devices to be changed during operation, which is ideal for dynamic working environments.
With the built-in VIA VL805 chipset, the card offers solid performance and comprehensive compatibility with Windows and Linux systems. The InLine® interface card is a reliable and flexible expansion for any professional system environment.
Technical data

Interfaces: 4× USB-A 3.2 Gen. 1
PCIe standard: PCIe v2.0 x1 lane
Specification: USB 3.2 Gen. 1 (backward compatible with USB 2.0)
Chipset: VIA VL805
UASP support: Yes (USB Attached SCSI Protocol)
Max. current per port: 5 V / 900 mA
Power supply: SATA power (optional)
Card length without slot bracket: approx. 80 mm
Operating temperature: 0 °C to +85 °C (ambient temperature)
Storage temperature: -25 °C to +85 °C

Data rates

SuperSpeed: 5 Gb/s
High-Speed: 480 Mb/s
Full-Speed: 12 Mb/s
Low-Speed: 1.5 Mb/s

System requirements

Free PCIe slot (x1, x4, x8, or x16)
SATA power connector for additional power supply

Supported operating systems

Linux from version 3.0
Windows 7 / 8 / 8.1 / 10 / 11 (32 & 64 bit)

Scope of delivery

1× interface card, 4× USB-A 3.2 Gen. 1, PCIe x1
1× driver CD
1× user manual (DE/EN)

InLine 76666M. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Host interface gender: Male. Product colour: Green, Silver, Country of origin: Taiwan. Chipset: VIA VL805, Data transfer rate (max): 5 Gbit/s. Output current: 0.9 A. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows...

How to use

Install the card into an available PCIe slot (x1, x4, x8, or x16) on the motherboard. If connected USB devices require additional power, attach a SATA power cable to the card’s SATA connector. After physical installation, the card is detected via Plug & Play on supported operating systems; install drivers from the supplied CD if the system does not automatically recognize the device. Connect USB devices to the front-facing USB-A ports; hot-plugging is supported so devices can be attached or removed during operation.

Recommendations

For reliable operation when using multiple high-current USB devices (external drives, hubs or certain peripherals), connect the SATA power cable. Ensure the system runs a supported OS version and keep drivers updated for optimal compatibility and performance.
